Hewlett Packard Enterprise Synergy 660 Gen9 177501 SPECjbb2015-MultiJVM max-jOPS
138380 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: August 05, 2016
SPEC license #: 3 Hardware Availability: Jan-2017 Software Availability: Jul-2016 Publication: Nov 09, 2016
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationCompute Module
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips4
Total Cores88
Total Threads176
Total Memory Amount (GB)2048
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameSynergy 660 Gen9
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableJan-2017
ModelSynergy 660 Gen9
Form FactorFull-height Compute Module
CPU NameIntel Xeon E5-4669 v4
CPU Characteristics22 Core, 2.20 GHz, 55 MB L3 Cache (Turbo Boost Technology up to 3.0 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System88
Cores Per Chip22
Threads Per System176
Threads Per Core2
VersionI39 06/28/2016
CPU Frequency (MHz)2200
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D on chip per core
Tertiary Cache55 MB I+D on chip per chip
Other CacheNone
Disk1 x 800 GB SSD SAS
File SystemXFS
Memory Amount (GB)2048
# and size of DIMM(s)32 x 64 GB
Memory Details64 GB 4Rx4 PC4-2400T-LD
# and type of Network Interface Cards (NICs)HPE Synergy 3820C 10/20Gb CNA
Power Supply Quantity and Rating (W)6 x 2650
Other HardwareNone
Cabinet/Housing/EnclosureSynergy 12000 Frame
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server 7.2
VendorRedHat
Vendor URLhttp://redhat.com/
Version3.10.0-327
AvailableNov-2015
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u102
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 1.8.0_102
AvailableJul-2016
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Hyper Threading=Enabled
  • QPI Snoop Configuration=Home Snoop
  • Thermal Configuration=Maximum Cooling
  • Power Profile=Maximum Performance
  • Collaborative Power Control=Disabled
  • Processor Power and Utilization Monitoring=Disabled
  • Memory Refresh Rate=1x Refresh
  • Memory Patrol Scrub=Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • tuned-adm profile=throughput-performance
  • SELINUX=disabled
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 210000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line

-XX:-UsePerfData -server -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms492g -Xmx492g -Xmn478g -XX:SurvivorRatio=48 -XX:TargetSurvivorRatio=92 -XX:ParallelGCThreads=44 -XX:MaxTenuringThreshold=15 -XX:+PrintTenuringDistribution -XX:+PrintGCDetails -XX:+PrintGCTimeStamps -XX:MaxMetaspaceSize=256m -XX:MetaspaceSize=256m

Tuning None
Notes

Used numactl to affinitize each Backend JVM to NUMA node.

  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
  • numactl --cpunodebind=2 --localalloc
  • numactl --cpunodebind=3 --localalloc
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 172768 175134 177501 179868 182234
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 86383 145550 154307 161723 161723 138380
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 2367 - / 2367 - / 2367 - / 2367 - / 2367 - / 2367
1000us 4733 / 7100 - / 2367 - / 2367 - / 2367 - / 2367 - / 2367
5000us 168034 / 170401 158568 / 160934 71000 / 73367 56800 / 59167 37867 / 40234 - / 2367
10000us 170401 / 172768 165668 / 168034 132534 / 134901 115967 / 118334 87567 / 85200 2367 / 4733
25000us 170401 / 172768 170401 / 172768 165668 / 168034 163301 / 165668 144367 / 146734 9467 / 4733
50000us 170401 / 172768 170401 / 172768 168034 / 170401 165668 / 168034 156201 / 146734 37867 / 4733
75000us 170401 / 172768 170401 / 172768 168034 / 170401 168034 / 170401 163301 / 158568 87567 / 14200
100000us 172768 / 175134 170401 / 172768 168034 / 170401 168034 / 170401 163301 / 158568 87567 / 14200
200000us 175134 / 177501 170401 / 172768 168034 / 170401 168034 / 170401 168034 / 165668 97034 / 35500
500000us 177501 / - 175134 / 177501 170401 / 172768 170401 / 172768 168034 / 170401 168034 / 165668
1000000us 177501 / - 177501 / - 175134 / 177501 175134 / 177501 170401 / 172768 168034 / 170401
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

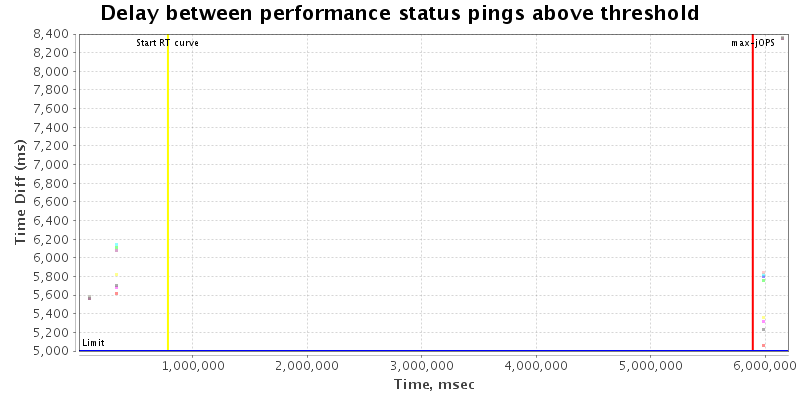

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 64
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.forkjoin.workers 176 {Tier1=252, Tier2=68, Tier3=29}
specjbb.group.count 1 4
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 236668 IR
High-bound (settled) is 197290 IR
