SPECjbb2015 Report for jbb2015-20160510-00080 : 189334 max-jOPS ; 117045 critical-jOPS

SUT Description

Hardware hw_1
Name	ProLiant DL580 Gen9
Vendor	Hewlett Packard Enterprise
Vendor URL	http://hpe.com/
Available	May-2016
Model	ProLiant DL580 Gen9
Form Factor	4U Rack
CPU Name	Intel Xeon E7-8890 v4
CPU Characteristics	24 Core, 2.20 GHz, 60 MB L3 Cache (Turbo Boost Technology up to 3.4 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	4
Cores Per System	96
Cores Per Chip	24
Threads Per System	192
Threads Per Core	2
Version	U17 04/26/2016
CPU Frequency (MHz)	2200
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	256 KB I+D on chip per core
Tertiary Cache	60 MB I+D on chip per chip
Other Cache	None
Disk	1 x 400 GB SSD SAS
File System	XFS
Memory Amount (GB)	2048
# and size of DIMM(s)	64 x 32768 MB
Memory Details	32 GB 2Rx4 PC4-2400T-R, running at 1600MHz
# and type of Network Interface Cards (NICs)	HP Ethernet 1Gb 4-port
Power Supply Quantity and Rating (W)	4 x 1500
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	None
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 12 SP1
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	3.12.49-11-default
Available	Dec-2015
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 8u92
Vendor	Oracle
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-bit Server VM, version 1.8.0_92
Available	Apr-2016
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Driver Description

Hardware hw_2
Name	ProLiant DL180 Gen9
Vendor	Hewlett Packard Enterprise
Vendor URL	http://hpe.com/
Available	Mar-2016
Model	ProLiant DL180 Gen9
Form Factor	2U Rack
CPU Name	Intel Xeon E5-2695 v4
CPU Characteristics	18 Core, 2.1 GHz, 45 MB L3 Cache (Turbo Boost Technology up to 3.3 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	36
Cores Per Chip	18
Threads Per System	72
Threads Per Core	2
Version	U20 04/12/2016
CPU Frequency (MHz)	2100
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	256 KB I+D on chip per core
Tertiary Cache	45 MB I+D on chip per chip
Other Cache	None
Disk	1 x 1TB SATA 7200 RPM
File System	XFS
Memory Amount (GB)	256
# and size of DIMM(s)	8 x 32768 MB
Memory Details	32 GB 2Rx4 PC4-2400T-R
# and type of Network Interface Cards (NICs)	HP Ethernet 1 Gb 2-Port
Power Supply Quantity and Rating (W)	2 x 900
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	None
Other Hardware network_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_2
Name	SUSE Linux Enterprise Server 12 SP1
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	3.12.49-11-default
Available	Dec-2015
Bitness	64
Notes	None
Java Virtual Machine jvm_2
Name	Oracle Java SE 8u92
Vendor	Oracle
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-bit Server VM, version 1.8.0_92
Available	Apr-2016
Bitness	64
Notes	None
Other Software other_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Backend_1 : Backend
Driver
- Hardware config_2
  - OS Image os_Image_2
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	Hyper Threading=Enabled QPI Snoop Configuration=Home Snoop Power Profile=Maximum Performance Thermal Configuration=Maximum Cooling Collaborative Power Control=Disabled Processor Power and Utilization Monitoring=Disabled Memory Patrol Scrub=Disabled
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Backend_1(4)
OS Image Description	os_1
Tuning	tuned-adm profile=throughput-performance echo 16000000 > /proc/sys/kernel/sched_latency_ns echo 6000000 > /proc/sys/kernel/sched_min_granularity_ns echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 1 > /proc/sys/kernel/sched_compat_yield
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms470g -Xmx470g -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:-UseBiasedLocking -XX:+UseParallelOldGC -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=36 -XX:MaxTenuringThreshold=15 -server -Xmn430g -XX:LargePageSizeInBytes=2m -XX:+UseLargePages -XX:+AlwaysPreTouch -XX:+AggressiveOpts -XX:+DisableExplicitGC
Tuning	Used numactl to affinitize each Backend JVM to NUMA node. numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc
Notes	None

Driver config_2 Configuration

Hardware
OS Images	os_Image_2(1)
Hardware Description	hw_2
Number of Systems	1
SW Environment	non-virtual
Tuning	Hyper Threading=Enabled QPI Snoop Configuration=Cluster on Die Power Profile=Maximum Performance Thermal Configuration=Maximum Cooling Collaborative Power Control=Disabled Processor Power and Utilization Monitoring=Disabled Memory Refresh Rate=1x Refresh
Notes	None

OS Image os_Image_2
JVM Instances	jvm_Ctr_1(1), jvm_TxInjector_1(4)
OS Image Description	os_2
Tuning	tuned-adm profile=throughput-performance echo 16000000 > /proc/sys/kernel/sched_latency_ns echo 6000000 > /proc/sys/kernel/sched_min_granularity_ns echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 1 > /proc/sys/kernel/sched_compat_yield
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_2
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC
Tuning	None
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_2
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC
Tuning	None
Notes	None

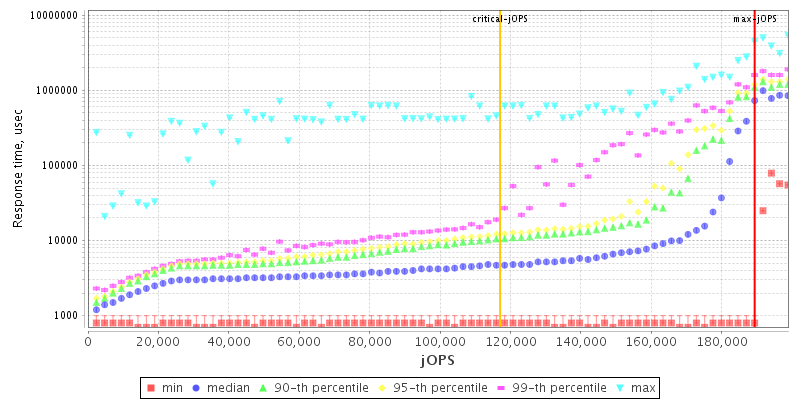

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	186968	189334	191701	194068	196434

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	76917	119911	126786	135915	138214	117045

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 2367	- / 2367	- / 2367	- / 2367	- / 2367	- / 2367
1000us	- / 2367	- / 2367	- / 2367	- / 2367	- / 2367	- / 2367
5000us	177501 / 179868	125434 / 127801	52067 / 54434	40234 / 42600	23667 / 26033	- / 2367
10000us	182234 / 184601	168034 / 170401	111234 / 113601	101767 / 104134	75734 / 78100	- / 2367
25000us	182234 / 184601	177501 / 179868	158568 / 160934	156201 / 153834	123067 / 118334	4733 / 2367
50000us	184601 / 186968	179868 / 182234	168034 / 170401	163301 / 160934	134901 / 120701	18933 / 2367
75000us	186968 / 189334	179868 / 182234	170401 / 172768	163301 / 165668	142001 / 127801	35500 / 2367
100000us	186968 / 189334	179868 / 182234	170401 / 172768	168034 / 165668	142001 / 132534	35500 / 2367
200000us	189334 / -	182234 / 184601	175134 / 177501	170401 / 172768	156201 / 153834	35500 / 2367
500000us	189334 / -	186968 / 189334	182234 / 184601	179868 / 182234	170401 / 172768	156201 / 44967
1000000us	189334 / -	189334 / -	186968 / 189334	186968 / 189334	182234 / 184601	168034 / 170401

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.selector.runner.count	0	4
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.comm.connect.worker.pool.max	256	64
specjbb.controller.host	localhost	10.10.0.46
specjbb.controller.maxir.maxFailedPoints	3	3
specjbb.forkjoin.workers	72	{Tier1=160, Tier2=80, Tier3=32}
specjbb.group.count	1	4
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 236668 IR

High-bound (settled) is 203453 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.00, June 24, 2015]

Hewlett Packard Enterprise ProLiant DL580 Gen9	189334 SPECjbb2015-Distributed max-jOPS 117045 SPECjbb2015-Distributed critical-jOPS
Tested by: Hewlett Packard Enterprise	Test Sponsor: Hewlett Packard Enterprise	Test location: Houston, TX	Test date: May 9, 2016
SPEC license #: 3	Hardware Availability: May-2016	Software Availability: Apr-2016	Publication: Jun 06, 2016
