Inspur Corporation Inspur NF5180M4 98145 SPECjbb2015-MultiJVM max-jOPS
28591 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Inspur Corporation Test Sponsor: Inspur Corporation Test location: Jinan, PRC Test date: Mar 14, 2016
SPEC license #: 3358 Hardware Availability: Dec-2014 Software Availability: Feb-2016 Publication: Apr 13, 2016
Benchmark Results Summary

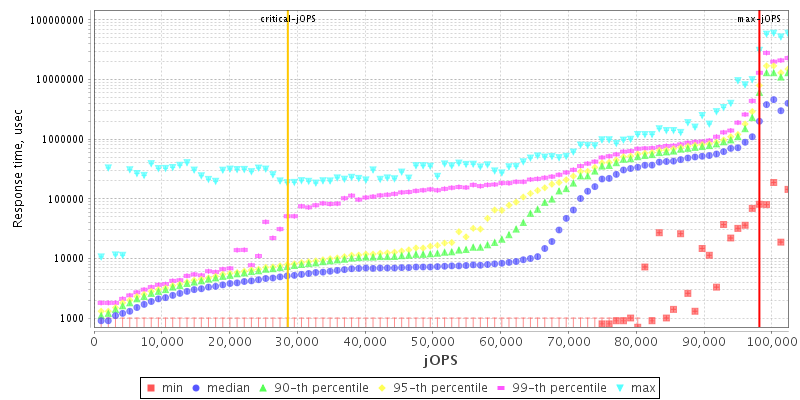

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores36
Total Threads72
Total Memory Amount (GB)256
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameInspur NF5180M4
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
AvailableDec-2014
ModelInspur NF5180M4
Form Factor1U
CPU NameIntel Xeon E5-2699 v3
CPU Characteristics18-Core, 2.30GHz (Turbo Boost Technology up to 3.60 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System36
Cores Per Chip18
Threads Per System72
Threads Per Core2
VersionNone
CPU Frequency (MHz)2300
Primary Cache32 KB(I)+32 KB(D)on chip per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache45MB (I+D) on chip per chip
Other CacheNone
Disk1x 80GB SSD
File Systemext4
Memory Amount (GB)256
# and size of DIMM(s)16 x 16GB
Memory Details256 GB (16 x 16 GB 2Rx4 PC4-2133P-R)
# and type of Network Interface Cards (NICs)Intel I350 OnBoard LAN
Power Supply Quantity and Rating (W)1 x 550W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server release 6.5 (Santiago)
AvailableNov-2013
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u74
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 1.8.0_74
AvailableFeb-2016
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Energy Performance was set to Performance Mode
  • Processor C0/C1 state set to enabled
  • Processor C1E set to disabled
  • COD enabled
  • Early Snoop disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • tuned-adm profile throughput-performance
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms29g -Xmx29g -Xmn27g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=18 -XX:MaxTenuringThreshold=15 -XX:+PrintTenuringDistribution -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -showversion -Xmn1536m -Xms2g -Xmx2g
Tuning numactl used to affinitize each TxInjector JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 97089 98145 99200 100255 101311
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 21809 25855 27966 32187 37639 28591
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1055 - / 1055 - / 1055 - / 1055 - / 1055 - / 1055
1000us 5277 / 6332 2111 / 3166 - / 1055 - / 1055 - / 1055 - / 1055
5000us 67540 / 68596 27438 / 28494 18996 / 20051 17940 / 18996 12664 / 13719 - / 1055
10000us 69651 / 70706 64375 / 65430 36936 / 37992 34826 / 35881 23217 / 21106 - / 1055
25000us 70706 / 71762 67540 / 68596 61209 / 62264 54877 / 53821 26383 / 25328 4221 / 2111
50000us 71762 / 72817 69651 / 70706 63319 / 64375 58043 / 59098 27438 / 28494 4221 / 2111
75000us 73872 / 74928 70706 / 71762 65430 / 66485 60153 / 61209 31660 / 32715 4221 / 2111
100000us 73872 / 74928 70706 / 71762 67540 / 68596 62264 / 63319 39047 / 36936 4221 / 2111
200000us 82315 / 83370 73872 / 74928 70706 / 71762 68596 / 69651 63319 / 64375 34826 / 2111
500000us 96034 / 97089 87592 / 88647 79149 / 80204 77038 / 78094 74928 / 75983 68596 / 65430
1000000us 98145 / - 96034 / 97089 93923 / 94979 92868 / 93923 90758 / 91813 79149 / 80204

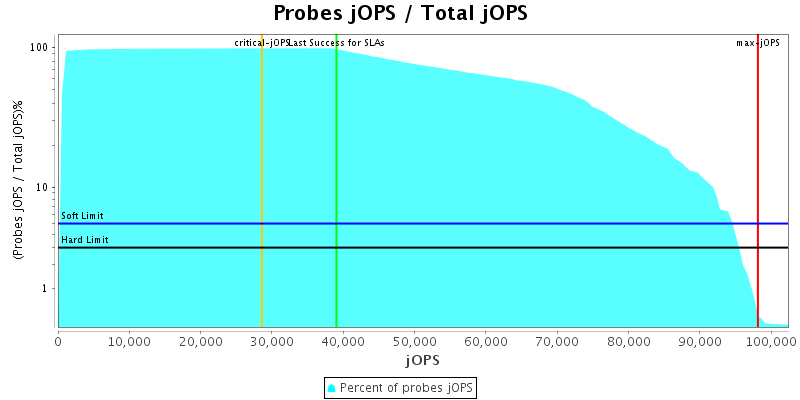

Probes jOPS / Total jOPS

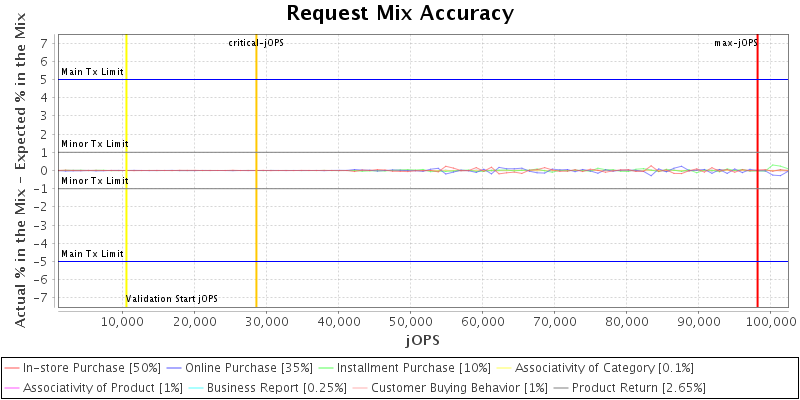

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

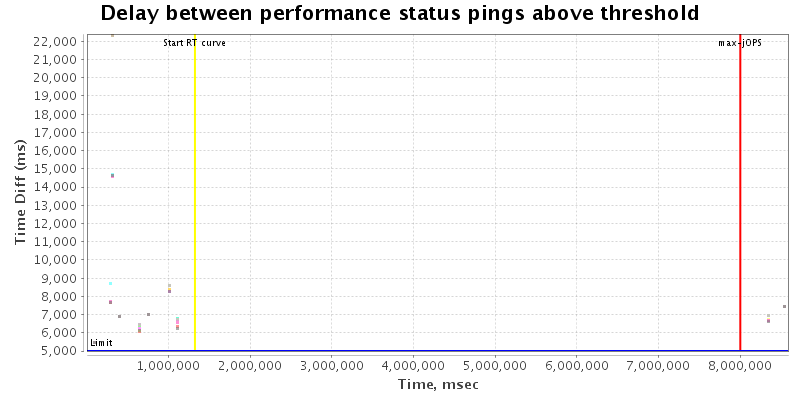

Delay between status pings

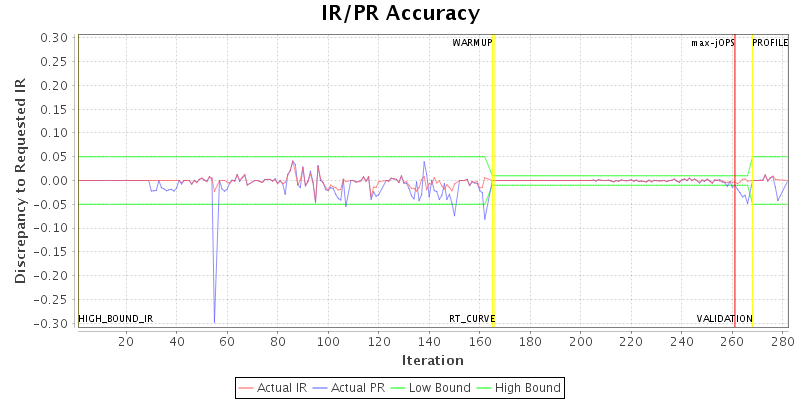

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 256
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 650000
specjbb.comm.connect.timeouts.read 60000 650000
specjbb.comm.connect.timeouts.write 60000 650000
specjbb.comm.connect.worker.pool.max 256 320
specjbb.customerDriver.threads 64 {probe=96, saturate=144, service=64}
specjbb.forkjoin.workers 72 {Tier1=140, Tier2=40, Tier3=20}
specjbb.group.count 1 4
specjbb.mapreducer.pool.size 72 27
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 105532 IR
High-bound (settled) is 104300 IR
