Hewlett Packard Enterprise ProLiant DL380 Gen9 120674 SPECjbb2015-Distributed max-jOPS
39615 SPECjbb2015-Distributed critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: March 14, 2016
SPEC license #: 3 Hardware Availability: Mar 2016 Software Availability: Mar 2016 Publication: Mar 30, 2016
Benchmark Results Summary

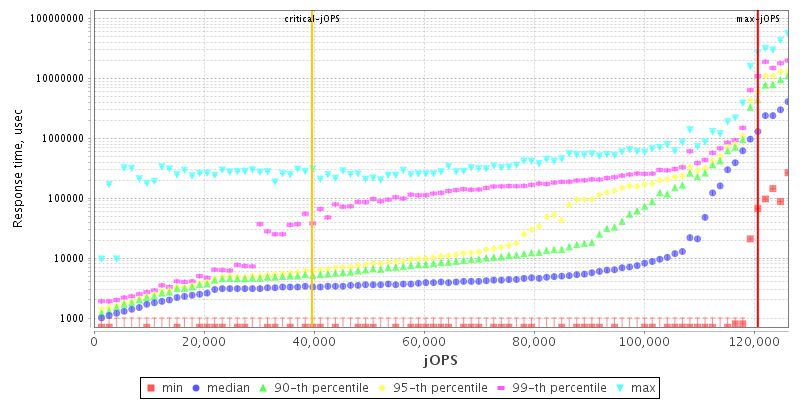

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips2
Total Cores44
Total Threads88
Total Memory Amount (GB)256 GB
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameProLiant DL380 Gen9
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableMar 2016
ModelProLiant DL380 Gen9
Form Factor2U Rack
CPU NameIntel Xeon E5-2699 v4
CPU Characteristics22 Core, 2.2 GHz, 55 MB L3 Cache (Turbo Boost Technology up to 3.6 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System44
Cores Per Chip22
Threads Per System88
Threads Per Core2
VersionP89 02/22/2016
CPU Frequency (MHz)2200
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D on chip per core
Tertiary Cache55 MB I+D on chip per chip
Other CacheNone
Disk2 x 400 GB
File SystemXFS
Memory Amount (GB)256
# and size of DIMM(s)16 x 16384 MB
Memory Details16 GB 2Rx4 PC4-2400T-R
# and type of Network Interface Cards (NICs)HPE Ethernet 1 Gb 4-Port
Power Supply Quantity and Rating (W)2 x 800
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server 7.2
VendorRedHat
Vendor URLhttp://redhat.com/
Version3.10.0-327
AvailableNov 2015
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u74
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 1.8.0_74
AvailableFeb 2016
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware hw_2
NameProLiant DL60 Gen9
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableMar 2016
ModelProLiant DL60 Gen9
Form Factor1U Rack
CPU NameIntel Xeon CPU E5-2660 v4
CPU Characteristics14 Core, 2.0 GHz, 35 MB L3 Cache (Turbo Boost Technology up to 3.2 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System28
Cores Per Chip14
Threads Per System56
Threads Per Core2
VersionU15 02/22/2016
CPU Frequency (MHz)2000
Primary Cache32 KB I +32 KB D on chip per core
Secondary Cache256 KB I+D on chip per core
Tertiary Cache35 MB I+D on chip per chip
Other CacheNone
Disk1 x 750 GB
File SystemXFS
Memory Amount (GB)256
# and size of DIMM(s)8 x 32768 MB
Memory Details32 GB 2Rx4 PC4-2400T-R
# and type of Network Interface Cards (NICs)HPE Ethernet 1 Gb 2-Port
Power Supply Quantity and Rating (W)2 x 900
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_2
NameRed Hat Enterprise Linux Server 7.2
VendorRedHat
Vendor URLhttp://redhat.com/
Version3.10.0-327
AvailableNov 2015
Bitness64
NotesNone
Java Virtual Machine jvm_2
NameOracle Java SE 8u72
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 1.8.0_72
AvailableJan 2016
Bitness64
NotesNone
Other Software other_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • Hyper Threading=Enabled
  • QPI Snoop Configuration=Cluster on Die
  • Power Profile=Maximum Performance
  • Thermal Configuration=Maximum Cooling
  • Collaborative Power Control=Disabled
  • Processor Power and Utilization Monitoring=Disabled
  • Memory Patrol Scrub=Disabled
  • Memory Refresh Rate=1x Refresh
Notes None
OS Image os_Image_1
JVM Instances jvm_Backend_1(4)
OS Image Description os_1
Tuning
  • SELINUX=disabled
  • tuned-adm profile=throughput-performance
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 6000000 > /proc/sys/kernel/sched_min_granularity_ns
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line None
Tuning

-Xms29g -Xmx29g -Xmn27g -server -XX:AllocatePrefetchInstr=2 -Xnoclassgc -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=22 -XX:MaxTenuringThreshold=15 -XX:+PrintTenuringDistribution -XX:+PrintGCDetails -XX:+PrintGCTimeStamps

Notes

Used numactl to affinitize each Backend JVM to physical cores in a NUMA node.

  • numactl --physcpubind=0-10,44-54 --membind=0
  • numactl --physcpubind=11-21,55-65 --membind=1
  • numactl --physcpubind=22-32,66-76 --membind=2
  • numactl --physcpubind=33-43,77-87 --membind=3
Hardware
OS Images os_Image_2(1)
Hardware Description hw_2
Number of Systems 1
SW Environment non-virtual
Tuning
  • Hyper Threading=Enabled
  • QPI Snoop Configuration=Cluster on Die
  • Power Profile=Maximum Performance
  • Thermal Configuration=Maximum Cooling
  • Collaborative Power Control=Disabled
  • Processor Power and Utilization Monitoring=Disabled
  • Memory Refresh Rate=1x Refresh
Notes None
OS Image os_Image_2
JVM Instances jvm_Ctr_1(1), jvm_TxInjector_1(4)
OS Image Description os_2
Tuning
  • SELINUX=disabled
  • tuned-adm profile=network-latency
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 6000000 > /proc/sys/kernel/sched_min_granularity_ns
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_2
Command Line None
Tuning -Xms2g -Xmx2g -Xmn1536m -XX:+UseCondCardMark -XX:ParallelGCThreads=18 -XX:-UsePerfData -XX:+UseParallelOldGC
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_2
Command Line None
Tuning -Xms2g -Xmx2g -Xmn1536m -XX:+UseCondCardMark -XX:ParallelGCThreads=18 -XX:-UsePerfData -XX:+UseParallelOldGC
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 119302 120674 122045 123416 124787
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 29482 32225 40453 45709 55537 39615
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1371 - / 1371 - / 1371 - / 1371 - / 1371 - / 1371
1000us 4114 / 5485 1371 / 2743 - / 1371 - / 1371 - / 1371 - / 1371
5000us 109703 / 111074 85020 / 86391 37025 / 38396 30168 / 31540 20569 / 21941 - / 1371
10000us 112446 / 113817 102847 / 104218 71307 / 72678 60337 / 61708 28797 / 30168 4114 / 2743
25000us 113817 / 115188 109703 / 111074 91876 / 93248 78164 / 79535 34282 / 30168 4114 / 2743
50000us 113817 / 115188 111074 / 112446 95990 / 97362 85020 / 83649 42510 / 38396 4114 / 2743
75000us 115188 / 116560 111074 / 112446 100104 / 101475 85020 / 86391 46624 / 43881 4114 / 2743
100000us 115188 / 116560 111074 / 112446 101475 / 102847 90505 / 91876 56223 / 54852 4114 / 2743
200000us 116560 / 117931 113817 / 115188 106961 / 108332 102847 / 104218 89134 / 90505 32911 / 5485
500000us 119302 / 120674 116560 / 117931 113817 / 115188 112446 / 113817 111074 / 108332 85020 / 86391
1000000us 120674 / - 119302 / 120674 117931 / 119302 116560 / 117931 116560 / 117931 111074 / 108332
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group2.Backend.beJVM Group3.Backend.beJVM Group4.Backend.beJVM
specjbb.comm.connect.client.pool.size 256 192 256 256 256 256
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 650000 600000 600000 600000 600000
specjbb.comm.connect.timeouts.read 60000 650000 600000 600000 600000 600000
specjbb.comm.connect.timeouts.write 60000 650000 600000 600000 600000 600000
specjbb.comm.connect.worker.pool.max 256 192 256 256 256 256
specjbb.controller.host localhost 10.10.0.57
specjbb.controller.maxir.maxFailedPoints 3 3
specjbb.forkjoin.workers 56 {Tier1=135, Tier2=67, Tier3=25}
specjbb.group.count 1 4
specjbb.heartbeat.threshold 100000 150000
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 137129 IR
High-bound (settled) is 129676 IR
