Oracle Corporation Sun Server X4-2 52482 SPECjbb2015-MultiJVM max-jOPS
19614 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Oracle Corporation Test Sponsor: Oracle Corporation Test location: Hillsboro, OR Test date: Aug 28, 2015
SPEC license #: 6 Hardware Availability: Sep-2013 Software Availability: Aug-2015 Publication: Sep 23, 2015
Benchmark Results Summary

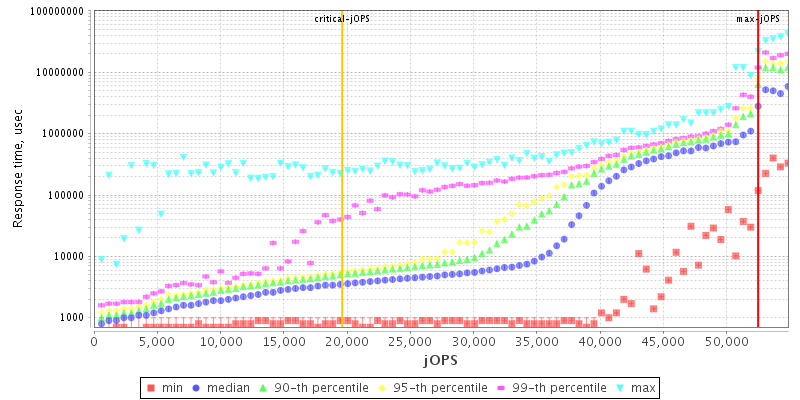

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores24
Total Threads48
Total Memory Amount (GB)128
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameSun Server X4-2
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
AvailableSep-2013
ModelSun Server X4-2
Form Factor1RU rackmount server
CPU NameIntel Xeon E5-2697 v2
CPU CharacteristicsIntel Turbo Boost Technology up to 3.50 GHz
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System24
Cores Per Chip12
Threads Per System48
Threads Per Core2
VersionNone
CPU Frequency (MHz)2700
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D on chip per core
Tertiary Cache30 MB I+D on chip per chip
Other CacheNone
Disk2 x 300 GB 10000 RPM SAS disk drives
File SystemZFS
Memory Amount (GB)128
# and size of DIMM(s)16 x 8 GB
Memory Details8GB 2Rx4 PC3L-12800R ECC CL11; all slots populated
# and type of Network Interface Cards (NICs)Onboard 10/100/1000 NIC
Power Supply Quantity and Rating (W)2 x 600W AC power supply
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameOracle Solaris 11.1
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
VersionOracle Solaris 11.1.17.3.0
AvailableFeb-2014
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u60
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 1.8.0_60
AvailableAug-2015
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning tuning
Notes notes
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning Chip 1's virtual CPUs were left in the default processor set, and groups 1 and 2 were run there. A processor set was created, and chip 2's virtual CPUs were assigned to it, and groups 3 and 4, and the Controller, were run there.
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line psrset -e 1 priocntl -e -c FX -m 60 -p 60 java -Xmx2048m -Xms2048m -Xmn1536m
Tuning The controller JVM was run with critical thread priority in processor set 1.
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line [ psrset -e 1 ] priocntl -e -c FX -m 60 -p 60 java -Xmx24g -Xms24g -Xmn22g -XX:+UseParallelOldGC -XX:ParallelGCThreads=12 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseCompressedOops -XX:+AlwaysPreTouch -XX:+UseCondCardMark -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=16 -XX:TargetSurvivorRatio=90
Tuning Each backend was run with critical threads priority, two backends with associated transaction injectors in each processor set.
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line [ psrset -e 1 ] priocntl -e -c FX -m 60 -p 60 java -Xmx2048m -Xms2048m -Xmn1536m
Tuning Each transaction injector was run with critical threads priority, in the same processor set as its associated backend.
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 51893 52482 53072 53662 54251
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 15627 16806 20344 22113 24570 19614
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 590 - / 590 - / 590 - / 590 - / 590 - / 590
1000us 4718 / 5307 2948 / 3538 590 / 1179 - / 590 - / 590 - / 590
5000us 36561 / 37150 27715 / 28305 19460 / 20049 17691 / 18280 11204 / 10025 - / 590
10000us 37740 / 38330 35381 / 35971 30074 / 30664 27126 / 27715 17101 / 14153 1769 / 1179
25000us 38920 / 39509 37150 / 37740 33023 / 33612 31254 / 30664 17101 / 16511 2359 / 1179
50000us 39509 / 40099 38330 / 38920 35381 / 35971 33023 / 33612 20049 / 20639 5307 / 1179
75000us 40099 / 40689 38920 / 39509 36561 / 37150 34202 / 34792 22408 / 21819 5307 / 1179
100000us 40689 / 41278 38920 / 39509 37150 / 37740 35971 / 36561 25357 / 24177 5307 / 1179
200000us 42458 / 43047 40689 / 41278 38920 / 39509 37150 / 37740 34202 / 34792 13563 / 1179
500000us 51303 / 51893 45996 / 46586 43637 / 44227 42458 / 43047 41278 / 41868 37740 / 38330
1000000us 51893 / 52482 51303 / 51893 50124 / 50713 48944 / 49534 48355 / 48944 43637 / 41868

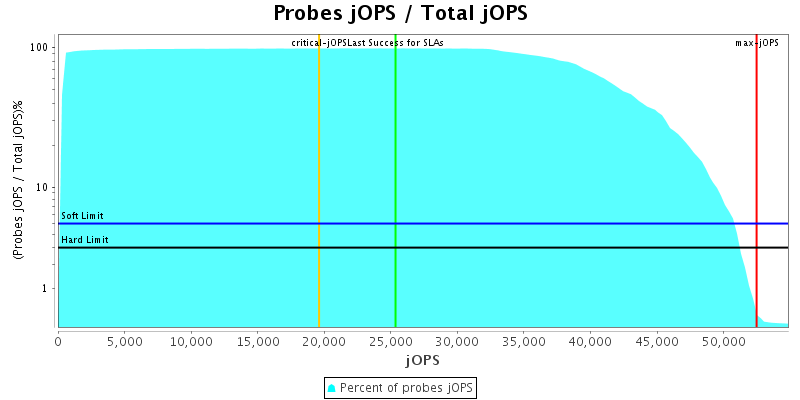

Probes jOPS / Total jOPS

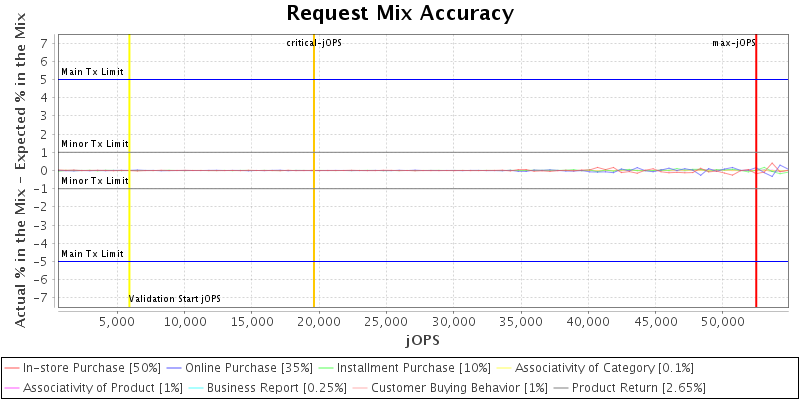

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 320
specjbb.comm.connect.timeouts.connect 60000 100000
specjbb.comm.connect.timeouts.read 60000 100000
specjbb.comm.connect.timeouts.write 60000 100000
specjbb.comm.connect.worker.pool.max 256 224
specjbb.customerDriver.threads 64 {=64, probe=80, saturate=80}
specjbb.forkjoin.workers 24 {Tier1=48, Tier2=20, Tier3=12}
specjbb.group.count 1 4
specjbb.heartbeat.period 10000 20000
specjbb.heartbeat.threshold 100000 200000
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 58969 IR
High-bound (settled) is 56839 IR
