Cisco Systems Cisco UCS C240 M3 CODE DEFECT (CD) RESULT
Tested by: Cisco Systems Test Sponsor: Cisco Systems Test location: San Jose, CA Test date: 28 December, 2013
SPEC license #: 9019 Hardware Availability: September-2013 Software Availability: November-2013 Publication: Feb 05, 2014
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorCisco Systems
Vendor URLhttp://www.cisco.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores24
Total Threads48
Total Memory Amount (GB)128
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameCisco UCS C240 M3
VendorCisco Systems
Vendor URLhttp://www.cisco.com/
AvailableSeptember-2013
ModelCisco UCS C240 M3
Form Factor2U
CPU NameIntel Xeon E5-2697 v2
CPU Characteristics12-Core, 2.70GHz (Turbo Boost Technology up to 3.50 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System24
Cores Per Chip12
Threads Per System48
Threads Per Core2
VersionNone
CPU Frequency (MHz)2700
Primary Cache32 KB(I)+32 KB(D)on chip per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache30MB (I+D) on chip per chip
Other CacheNone
Disk1x 100GB SSD
File SystemEXT3
Memory Amount (GB)128
# and size of DIMM(s)16 x 8192MB (Slots A1,A2,B1,B2,C1,C2,D1,D2,E1,E2,F1,F2,G1,G2,H1,H2 populated)
Memory Details2RX4 PC3-14900R-13-12-E2, running 1866MHz
# and type of Network Interface Cards (NICs)1x 10 Gbit NICs
Power Supply Quantity and Rating (W)2 x 1200 Watts
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server release 6.4 (Santiago)
AvailableFeb-2013
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 7u45
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot(TM) 64-Bit Server VM on Linux, version 1.7.0_45
AvailableOctober-2013
Bitness64
Notesnote
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Energy Performance was set to Performance Mode
  • CPU Performance set to Enterprise
  • Memory RAS Configuration set to Maximum Performance
  • LowVoltage DDR Mode set to Performance
  • DRAM Refresh rate set to 1x
  • Processor C1E set to disabled
Notes notes
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(2)
OS Image Description os_1
Tuning
  • Huge Pages Enabled on OS.Edit sysctl.conf with vm.nr_hugepages as 52000
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -XX:-UseBiasedLocking -XX:LargePageSizeInBytes=2m -XX:+AlwaysPreTouch -XX:+UseLargePages -Xms29g -Xmx29g -Xmn27g -XX:+UseParallelOldGC -XX:ParallelGCThreads=24 -XX:SurvivorRatio=16 -XX:TargetSurvivorRatio=90 -XX:-UseAdaptiveSizePolicy -XX:+AggressiveOpts
Tuning Affinity Masks
  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 62393 63079 63765 64450 65136
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 9942 17484 22969 40110 47652 23797
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 686 - / 686 - / 686 - / 686 - / 686 - / 686
1000us 6171 / 6856 2057 / 2743 1371 / 2057 686 / 1371 - / 686 - / 686
5000us 41824 / 42510 21255 / 21940 13713 / 14398 12342 / 13027 8228 / 7542 - / 686
10000us 43881 / 44567 37710 / 38396 23312 / 23997 22626 / 23312 9599 / 10285 - / 686
20000us 44567 / 45252 41824 / 42510 33596 / 34282 26740 / 26054 13027 / 13713 1371 / 2057
50000us 45252 / 45938 43195 / 43881 35653 / 36339 30168 / 30854 17141 / 17827 2743 / 2057
100000us 47995 / 47309 44567 / 45252 39081 / 39767 34968 / 35653 22626 / 23312 2743 / 2057
200000us 52794 / 50737 46624 / 47309 43881 / 43195 41824 / 42510 40453 / 39767 27426 / 3428
500000us 56222 / 56908 52794 / 53480 48680 / 49366 47995 / 48680 47995 / 47309 44567 / 45252
1000000us 58279 / 58965 57594 / 58279 55537 / 56222 55537 / 56222 54166 / 54851 52109 / 52794

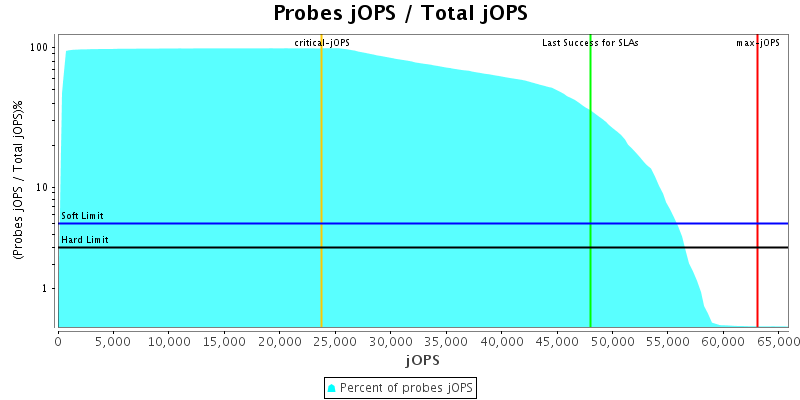

Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

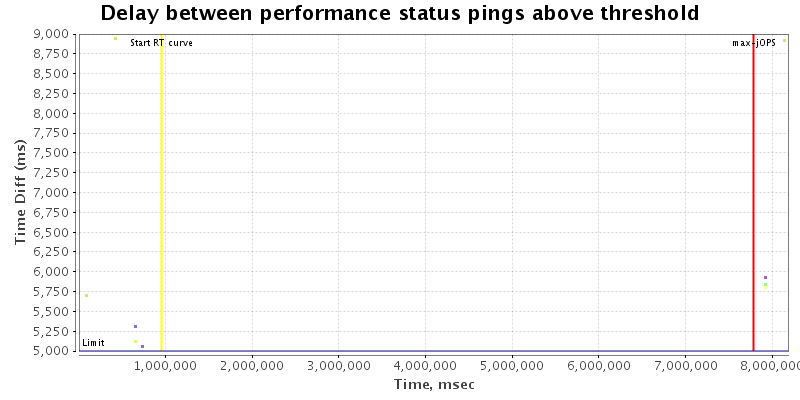

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.customerDriver.threads 64 {=128, saturate=256}
specjbb.group.count 1 2
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 68564 IR
High-bound (settled) is 61607 IR
