Oracle Corporation SPARC T5-2 CODE DEFECT (CD) RESULT
Tested by: Oracle Corporation Test Sponsor: Oracle Corporation Test location: Hillsboro, OR Test date: Sep 11, 2013
SPEC license #: 6 Hardware Availability: Mar-2013 Software Availability: Sep-2013 Publication: Oct 17, 2013
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

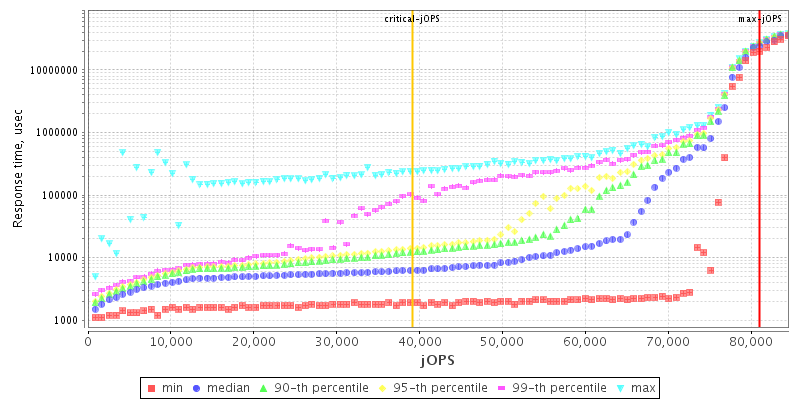

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores32
Total Threads256
Total Memory Amount (GB)512
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameSPARC T5-2
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
AvailableMar-2013
ModelSPARC T5-2
Form Factor3RU rackmount server
CPU NameSPARC T5
CPU Characteristics3600 MHz SPARC-T5
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System32
Cores Per Chip16
Threads Per System256
Threads Per Core8
VersionNone
CPU Frequency (MHz)3600
Primary Cache16 KB I + 16 KB D per core
Secondary Cache128 KB I+D per core
Tertiary Cache8 MB I+D per chip
Other CacheNone
Disk2x 300 GB 10000 RPM SAS disk drive
File SystemZFS
Memory Amount (GB)512
# and size of DIMM(s)32 x 16 GB
Memory Details16GB 2Rx8 PC3-12800R ECC CL11; each slot populated
# and type of Network Interface Cards (NICs)Onboard 10/100/1000 NIC
Power Supply Quantity and Rating (W)1x 2060W AC power supply
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone.
VendorNone.
Vendor URLNone.
VersionNone.
AvailableNone.
BitnessNone.
NotesNone.
Operating System os_1
NameOracle Solaris 11.1
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
VersionOracle Solaris 11.1.4.5.0
AvailableOct-2012
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle JDK 7 Update 40
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/technetwork/java
VersionJava HotSpot 64-bit Server VM, version 1.7.0_40
AvailableSep-2013
Bitness64
NotesNone
Other Software other_1
NameNone.
VendorNone.
Vendor URLNone.
VersionNone.
AvailableNone.
BitnessNone.
NotesNone.
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning None.
Notes None.
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(2)
OS Image Description os_1
Tuning A processor set was configured containing the virtual processors (HW threads) of CPU 1.
Notes The controller and group 2 (backend and transaction injector) were run in the processor set. Group 1 (backend and transaction injector) was run outside the processor set. All java processes were run using the FX scheduling class.
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmx2048m -Xms2048m -Xmn1536m -Dspecjbb.forkjoin.workers=149 -Dspecjbb.group.count=2
Tuning A processor set was configured containing the virtual processors (HW threads) of CPU 1.
Notes Controller was run in processor set 1 with FX scheduling class. The object-caching memory allocation library libumem was used by setting the environment variable LD_PRELOAD=libumem.so.
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xmx125g -Xms125g -Xmn92g -XX:+UseParallelOldGC -XX:ParallelGCThreads=98 -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:LargePageSizeInBytes=2g
Tuning A processor set was configured containing the virtual processors (HW threads) of CPU 1.
Notes The controller and group 2 (backend and transaction injector) were run in the processor set. Group 1 (backend and transaction injector) was run outside the processor set. All java processes were run using the FX scheduling class. The object-caching memory allocation library libumem was used by setting the environment variable LD_PRELOAD=libumem.so.
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmx2048m -Xms2048m -Xmn1536m
Tuning A processor set was configured containing the virtual processors (HW threads) of CPU 1.
Notes The controller and group 2 (backend and transaction injector) were run in the processor set. Group 1 (backend and transaction injector) was run outside the processor set. All java processes were run using the FX scheduling class. The object-caching memory allocation library libumem was used by setting the environment variable LD_PRELOAD=libumem.so.
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 80240 81084 81929 82774 83618
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 19848 33363 39979 50959 67992 39129
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 845 - / 845 - / 845 - / 845 - / 845 - / 845
1000us - / 845 - / 845 - / 845 - / 845 - / 845 - / 845
5000us 61658 / 62503 20271 / 21116 8446 / 9291 7602 / 8446 6757 / 7602 845 / 1689
10000us 65881 / 66726 53212 / 54056 32096 / 32941 27028 / 27873 19426 / 20271 845 / 1689
20000us 67570 / 68415 64192 / 65037 53212 / 54056 48989 / 49833 31251 / 28717 3379 / 4223
50000us 68415 / 69260 65881 / 66726 59124 / 59969 52367 / 53212 33785 / 32941 10980 / 4223
100000us 70104 / 70949 67570 / 68415 61658 / 62503 57435 / 58279 40542 / 38853 10980 / 4223
200000us 72638 / 73483 69260 / 70104 65037 / 65881 63347 / 64192 51522 / 49833 30407 / 4223
500000us 75172 / 76017 72638 / 73483 70949 / 71794 69260 / 70104 67570 / 68415 64192 / 63347
1000000us 76017 / 76861 75172 / 76017 74327 / 75172 74327 / 75172 72638 / 73483 70949 / 71794
Probes jOPS / Total jOPS

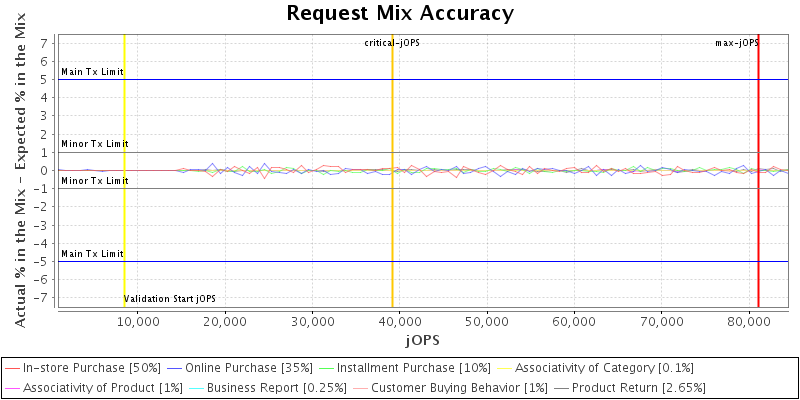

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

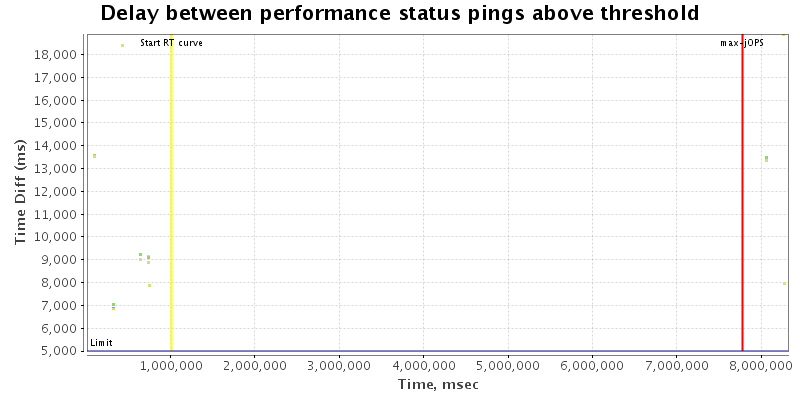

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.forkjoin.workers 128 149
specjbb.group.count 1 2
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 84463 IR
High-bound (settled) is 81813 IR
