SPECjbb2005 SPECjbb2005 bops = 2099870, SPECjbb2005 bops/JVM = 174989
Hewlett-Packard Company ProLiant BL460c Gen8
IBM Corporation IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)

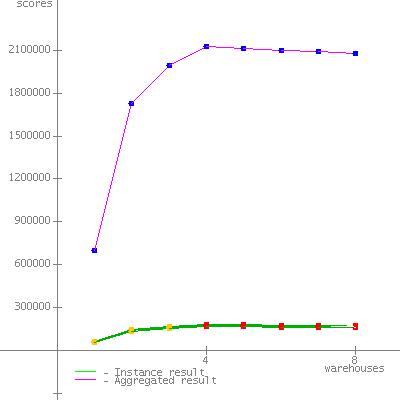

JVM run JVM Scores
1174701
2178493
3179169
4174659
5175306
6175581
7168598
8175066
9178506
10178516
11175911
12165364
SPECjbb2005 bops = 2099870, SPECjbb2005 bops/JVM = 174989

Hardware
Hardware Vendor Hewlett-Packard Company
Vendor URL http://www.hp.com
Model ProLiant BL460c Gen8
Processor Intel Xeon E5-2697 v2 (Intel Turbo Boost Technology up to 3.50 GHz)
MHz 2700
# of Chips 2
# of Cores 24
# of Cores/Chip 12
HW Threading Enabled? Yes
Procs Avail to Java 48
Memory (MB) 131072
Memory Details 16 x 8 GB 2Rx4 PC3-14900R-13, ECC, all slots populated
Primary cache 32 KB I + 32 KB D on chip per chip
Secondary cache 256 KB I+D on chip per core
Other cache 30 MB I+D on chip per chip
Filesystem NTFS
Disks 2 x 100 GB SATA SSD, RAID 0
Other hardware HP BladeSystem c7000 Enclosure
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command Line start /AFFINITY %HEX% \java\bin\java.exe -Xaggressive -Xcompressedrefs -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 spec.jbb.JBBmain -propfile SPECjbb.V1.props12
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\java\jre\lib\aggressive.jar;
C:\java\jre\bin\compressedrefs\jclSC170\vm.jar;
C:\java\jre\lib\se-service.jar;
C:\java\jre\lib\math.jar;
C:\java\jre\lib\jlm.jar;
C:\java\jre\lib\ibmorb.jar;
C:\java\jre\lib\ibmorbapi.jar;
C:\java\jre\lib\ibmcfw.jar;
C:\java\jre\lib\ibmpkcs.jar;
C:\java\jre\lib\ibmcertpathfw.jar;
C:\java\jre\lib\ibmjgssfw.jar;
C:\java\jre\lib\ibmjssefw.jar;
C:\java\jre\lib\ibmsaslfw.jar;
C:\java\jre\lib\ibmjcefw.jar;
C:\java\jre\lib\ibmjgssprovider.jar;
C:\java\jre\lib\ibmjsseprovider2.jar;
C:\java\jre\lib\ibmcertpathprovider.jar;
C:\java\jre\lib\xmldsigfw.jar;
C:\java\jre\lib\xml.jar;
C:\java\jre\lib\charsets.jar;
C:\java\jre\lib\resources.jar;
C:\java\jre\lib\rt.jar
OS Version Microsoft Windows Server 2008 R2 Enterprise (x64)
Other software
  • HP ProLiant Support Pack for Microsoft Windows Server 2008 R2 psp-9.10.w2k8R2.x64.exe (Use hpsum.exe to install default drivers and applications)
  • IBM SDK Java Technology Edition Version 7.0 for Windows x64
    • Test Information
    Tested by Hewlett-Packard Company
    SPEC license # 3
    Test location Houston, TX
    Test date Sep 3, 2013
    H/w available Sep-2013
    JVM available Mar-2012
    OS available Oct-2009
    Other s/w available Jun-2012
    AOT Compilation
    N/A
    Tuning

    Affinity Masks
    jvmID 1: /AFFINITY 0xf
    jvmID 2: /AFFINITY 0xf0
    jvmID 3: /AFFINITY 0xf00
    jvmID 4: /AFFINITY 0xf000
    jvmID 5: /AFFINITY 0xf0000
    jvmID 6: /AFFINITY 0xf00000
    jvmID 7: /AFFINITY 0xf000000
    jvmID 8: /AFFINITY 0xf0000000
    jvmID 9: /AFFINITY 0xf00000000
    jvmID 10: /AFFINITY 0xf000000000
    jvmID 11: /AFFINITY 0xf0000000000
    jvmID 12: /AFFINITY 0xf00000000000

    Notes
    • Command line options are described at: http://publib.boulder.ibm.com/infocenter/java7sdk/v7r0/index.jsp
    • BIOS Configuration:
      • Power Profile set to Maximum Performance
      • Thermal Configuration set to Maximum Cooling
      • HW Prefetcher set to Disabled
      • Adjacent Sector Prefetcher set to Disabled
      • DCU Streamer Prefetcher set to Disabled
      • Collaborative Power Control set to Disabled
      • Memory Power Savings Mode set to Maximum Performance
      • Processor Power and Utilization Monitoring set to Disabled
      • Dynamic Power Capping Functionality set to Disabled
      • Memory Refresh Rate set to 1x

    JVM 1 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 58370
    2 145205
    3 163915
    4 177404 *
    5 176182 *
    6 173670 *
    7 173502 *
    8 172746 *
    SPECjbb2005 (from 4 to 8) 174701 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 3, 2013

    JVM 2 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 56817
    2 145466
    3 171068
    4 181090 *
    5 179784 *
    6 178326 *
    7 176521 *
    8 176746 *
    SPECjbb2005 (from 4 to 8) 178493 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 3, 2013

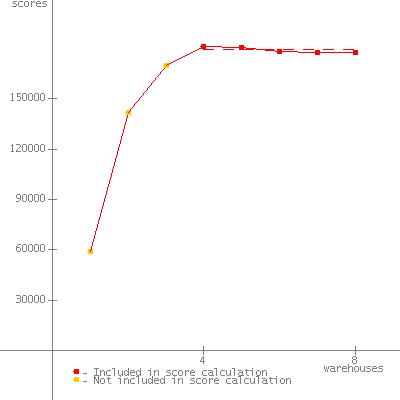

    JVM 3 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 59269
    2 141900
    3 170150
    4 181419 *
    5 180666 *
    6 178291 *
    7 177836 *
    8 177633 *
    SPECjbb2005 (from 4 to 8) 179169 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 3, 2013

    JVM 4 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 57737
    2 138217
    3 165069
    4 175649 *
    5 175270 *
    6 175696 *
    7 174052 *
    8 172626 *
    SPECjbb2005 (from 4 to 8) 174659 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 3, 2013

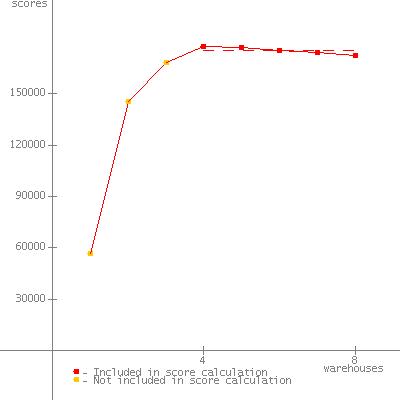

    JVM 5 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 56818
    2 145546
    3 168147
    4 177779 *
    5 176945 *
    6 175189 *
    7 174208 *
    8 172408 *
    SPECjbb2005 (from 4 to 8) 175306 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 3, 2013

    JVM 6 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 58417
    2 143725
    3 168079
    4 178378 *
    5 176428 *
    6 175598 *
    7 174543 *
    8 172960 *
    SPECjbb2005 (from 4 to 8) 175581 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 3, 2013

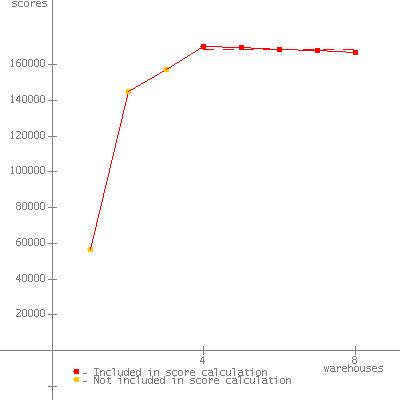

    JVM 7 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 56567
    2 144950
    3 157202
    4 170337 *
    5 169618 *
    6 168545 *
    7 167976 *
    8 166516 *
    SPECjbb2005 (from 4 to 8) 168598 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 3, 2013

    JVM 8 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 58728
    2 145772
    3 167636
    4 177897 *
    5 176937 *
    6 173646 *
    7 174121 *
    8 172727 *
    SPECjbb2005 (from 4 to 8) 175066 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 3, 2013

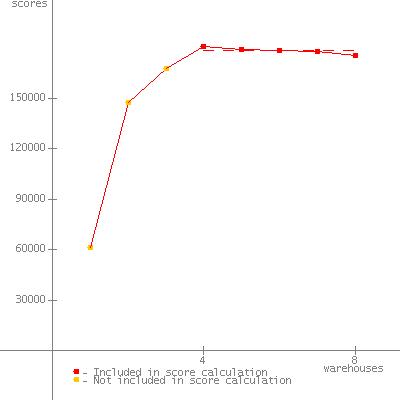

    JVM 9 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 61048
    2 147697
    3 167739
    4 181048 *
    5 179127 *
    6 178674 *
    7 178129 *
    8 175551 *
    SPECjbb2005 (from 4 to 8) 178506 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 3, 2013

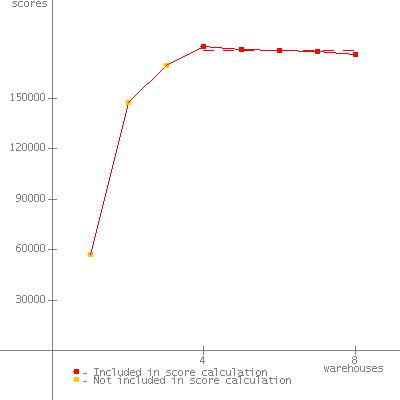

    JVM 10 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 57091
    2 147689
    3 169460
    4 181141 *
    5 179242 *
    6 178270 *
    7 177719 *
    8 176207 *
    SPECjbb2005 (from 4 to 8) 178516 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 3, 2013

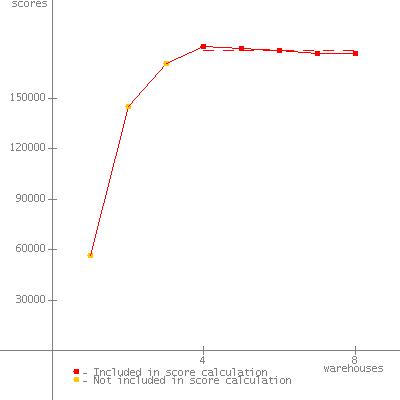

    JVM 11 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 57803
    2 146281
    3 169081
    4 178187 *
    5 177421 *
    6 174791 *
    7 174312 *
    8 174844 *
    SPECjbb2005 (from 4 to 8) 175911 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 3, 2013

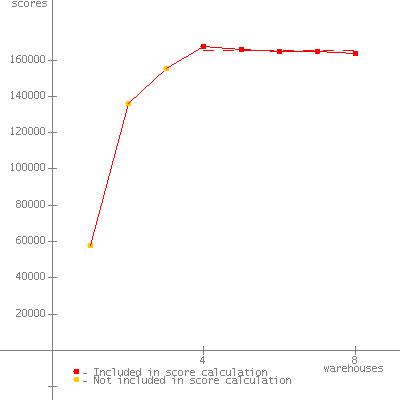

    JVM 12 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 57650
    2 136201
    3 155181
    4 167618 *
    5 166036 *
    6 164830 *
    7 164730 *
    8 163604 *
    SPECjbb2005 (from 4 to 8) 165364 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 3, 2013
    SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
    Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

    First published at SPEC.org on 16-Oct-2013
