SPECjbb2005 SPECjbb2005 bops = 2085141, SPECjbb2005 bops/JVM = 173762
IBM Corporation IBM System x3550 M4
IBM Corporation IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120204_101769 (JIT enabled, AOT enabled)

JVM run JVM Scores
1173720
2176210
3173424
4170482
5177775
6172824
7175272
8170871
9172653
10172112
11177774
12172024
SPECjbb2005 bops = 2085141, SPECjbb2005 bops/JVM = 173762

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM System x3550 M4
Processor Intel Xeon E5-2697 v2 (Intel Turbo Boost Technology up to 3.5 GHz)
MHz 2700
# of Chips 2
# of Cores 24
# of Cores/Chip 12
HW Threading Enabled? Yes
Procs Avail to Java 48
Memory (MB) 262144
Memory Details 16 x 16384MB, 2Rx4 PC3-14900R; slots 1, 2, 4, 5, 8, 9, 11, 12, 13, 14, 16, 17, 20, 21, 23 and 24 populated
Primary cache 32KBI+32KBD
Secondary cache 256 KB (I+D) on chip per core
Other cache 30 MB per processor
Filesystem NTFS
Disks 1 x 200GB 2.5" SATA SSD
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120204_101769 (JIT enabled, AOT enabled)
JVM Command Line set JAVAOPTIONS=-Xaggressive -Xcompressedrefs -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Initial Heap Memory (MB) 1400
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\IBM\ibm_sdk70\jre\bin\compressedrefs\jclSC170\vm.jar;
C:\IBM\ibm_sdk70\jre\lib\se-service.jar;
C:\IBM\ibm_sdk70\jre\lib\math.jar;
C:\IBM\ibm_sdk70\jre\lib\jlm.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmorb.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmorbapi.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmcfw.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmpkcs.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmcertpathfw.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmjgssfw.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmjssefw.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmsaslfw.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmjcefw.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmjgssprovider.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmjsseprovider2.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmcertpathprovider.jar;
C:\IBM\ibm_sdk70\jre\lib\xmldsigfw.jar;
C:\IBM\ibm_sdk70\jre\lib\xml.jar;
C:\IBM\ibm_sdk70\jre\lib\charsets.jar;
C:\IBM\ibm_sdk70\jre\lib\resources.jar;
C:\IBM\ibm_sdk70\jre\lib\rt.jar
OS Version Microsoft Windows Server 2008 R2 Enterprise x64 SP1
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location Taipei, Taiwan
Test date Aug 27, 2013
H/w available Dec 2013
JVM available Mar 2012
OS available July 2008
Other s/w available
AOT Compilation

Tuning
  • Affinity masks set to 0xF, 0xF0, 0xF00, 0xF000, 0xF0000, 0xF00000, 0xF000000, 0xF0000000, 0xF00000000, 0xF000000000, 0xF0000000000, 0xF00000000000
  • Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
  • BIOS Settings
    • Turbo Mode: Enable
    • All Prefetcher: Disable
    • QPI Link Frequency: Max Performance
    • Memory Power Management: Disable
    • Patrol Scrub: Disable
    • Memory Data Scrambling: Disable
    • Active Energy Management: Capping Disabled
    • Power/Performance Bias: Platform Controlled
    • Platform Controlled Type: Max Performance
Notes

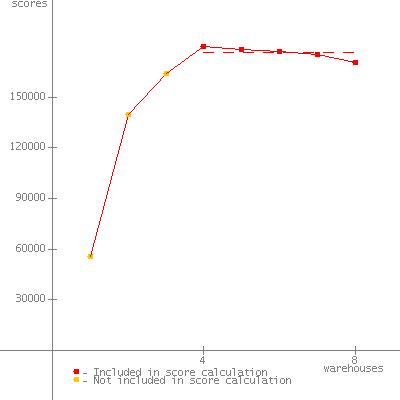

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 55843
2 137801
3 153594
4 176307 *
5 176256 *
6 175065 *
7 173562 *
8 167410 *
SPECjbb2005 (from 4 to 8) 173720 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 27, 2013


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 55523
2 139592
3 163839
4 180101 *
5 178072 *
6 177118 *
7 175295 *
8 170462 *
SPECjbb2005 (from 4 to 8) 176210 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 27, 2013

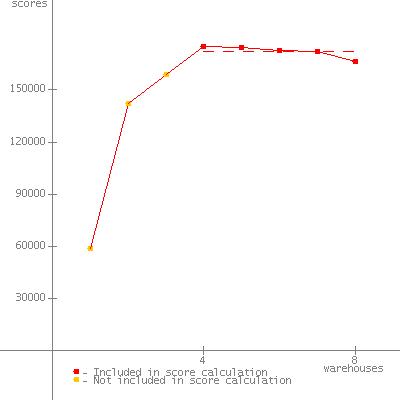

JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 59944
2 144229
3 162334
4 176603 *
5 174875 *
6 174773 *
7 173745 *
8 167124 *
SPECjbb2005 (from 4 to 8) 173424 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 27, 2013

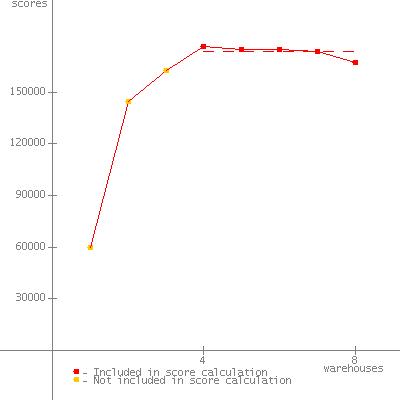

JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 58620
2 141554
3 159912
4 173438 *
5 173087 *
6 171172 *
7 170950 *
8 163764 *
SPECjbb2005 (from 4 to 8) 170482 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 27, 2013


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 55599
2 144383
3 165809
4 180792 *
5 180495 *
6 178273 *
7 177879 *
8 171437 *
SPECjbb2005 (from 4 to 8) 177775 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 27, 2013


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 52270
2 133679
3 159119
4 176243 *
5 174860 *
6 173969 *
7 172549 *
8 166500 *
SPECjbb2005 (from 4 to 8) 172824 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 27, 2013


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 59148
2 143776
3 163610
4 178115 *
5 176807 *
6 176011 *
7 175463 *
8 169964 *
SPECjbb2005 (from 4 to 8) 175272 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 27, 2013

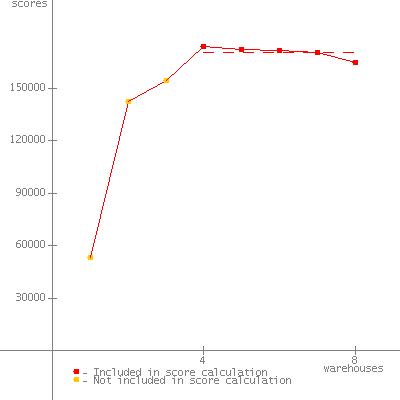

JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 53220
2 142759
3 154630
4 174265 *
5 172572 *
6 172014 *
7 170378 *
8 165126 *
SPECjbb2005 (from 4 to 8) 170871 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 27, 2013


JVM 9 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 55538
2 134564
3 156546
4 176561 *
5 173734 *
6 173473 *
7 172427 *
8 167070 *
SPECjbb2005 (from 4 to 8) 172653 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 27, 2013


JVM 10 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 58977
2 142065
3 158781
4 175177 *
5 174415 *
6 172620 *
7 171893 *
8 166453 *
SPECjbb2005 (from 4 to 8) 172112 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 27, 2013


JVM 11 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 55833
2 142275
3 163639
4 181463 *
5 179597 *
6 178644 *
7 177944 *
8 171224 *
SPECjbb2005 (from 4 to 8) 177774 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 27, 2013


JVM 12 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 54550
2 139395
3 159455
4 175278 *
5 174221 *
6 173110 *
7 171347 *
8 166166 *
SPECjbb2005 (from 4 to 8) 172024 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 27, 2013

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 02-Oct-2013
