SPECjbb2005 SPECjbb2005 bops = 2085368, SPECjbb2005 bops/JVM = 173781
IBM Corporation IBM System x3650 M4
IBM Corporation IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120204_101769 (JIT enabled, AOT enabled)

JVM run JVM Scores
1171690
2178562
3171394
4172394
5173094
6176278
7176045
8173351
9174821
10171238
11173489
12173012
SPECjbb2005 bops = 2085368, SPECjbb2005 bops/JVM = 173781

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM System x3650 M4
Processor Intel Xeon E5-2697 v2 (Intel Turbo Boost Technology up to 3.5 GHz)
MHz 2700
# of Chips 2
# of Cores 24
# of Cores/Chip 12
HW Threading Enabled? Yes
Procs Avail to Java 48
Memory (MB) 262144
Memory Details 16 x 16384MB, 2Rx4 PC3-14900R; slots 1, 2, 4, 5, 8, 9, 11, 12, 13, 14, 16, 17, 20, 21, 23 and 24 populated
Primary cache 32KBI+32KBD
Secondary cache 256 KB (I+D) on chip per core
Other cache 30 MB per processor
Filesystem NTFS
Disks 1 x 200GB 2.5" SATA SSD
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120204_101769 (JIT enabled, AOT enabled)
JVM Command Line set JAVAOPTIONS=-Xaggressive -Xcompressedrefs -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Initial Heap Memory (MB) 1400
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\IBM\ibm_sdk70\jre\bin\compressedrefs\jclSC170\vm.jar;
C:\IBM\ibm_sdk70\jre\lib\se-service.jar;
C:\IBM\ibm_sdk70\jre\lib\math.jar;
C:\IBM\ibm_sdk70\jre\lib\jlm.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmorb.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmorbapi.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmcfw.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmpkcs.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmcertpathfw.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmjgssfw.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmjssefw.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmsaslfw.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmjcefw.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmjgssprovider.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmjsseprovider2.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmcertpathprovider.jar;
C:\IBM\ibm_sdk70\jre\lib\xmldsigfw.jar;
C:\IBM\ibm_sdk70\jre\lib\xml.jar;
C:\IBM\ibm_sdk70\jre\lib\charsets.jar;
C:\IBM\ibm_sdk70\jre\lib\resources.jar;
C:\IBM\ibm_sdk70\jre\lib\rt.jar
OS Version Microsoft Windows Server 2008 R2 Enterprise x64 SP1
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location Taipei, Taiwan
Test date Aug 28, 2013
H/w available Dec 2013
JVM available Mar 2012
OS available July 2008
Other s/w available
AOT Compilation

Tuning
  • Affinity masks set to 0xF, 0xF0, 0xF00, 0xF000, 0xF0000, 0xF00000, 0xF000000, 0xF0000000, 0xF00000000, 0xF000000000, 0xF0000000000, 0xF00000000000
  • Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
  • BIOS Settings
    • Turbo Mode: Enable
    • All Prefetcher: Disable
    • QPI Link Frequency: Max Performance
    • Memory Power Management: Disable
    • Patrol Scrub: Disable
    • Memory Data Scrambling: Disable
    • Active Energy Management: Capping Disabled
    • Power/Performance Bias: Platform Controlled
    • Platform Controlled Type: Max Performance
Notes


JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 54701
2 138599
3 159436
4 174608 *
5 173536 *
6 172327 *
7 171755 *
8 166226 *
SPECjbb2005 (from 4 to 8) 171690 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 28, 2013

JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 57939
2 144063
3 163501
4 181701 *
5 179962 *
6 179492 *
7 178664 *
8 172991 *
SPECjbb2005 (from 4 to 8) 178562 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 28, 2013

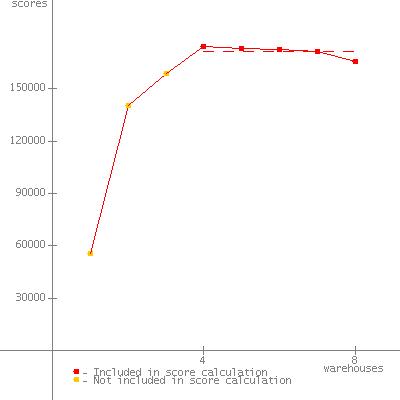

JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 55511
2 140636
3 158555
4 174379 *
5 173231 *
6 172584 *
7 171134 *
8 165640 *
SPECjbb2005 (from 4 to 8) 171394 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 28, 2013

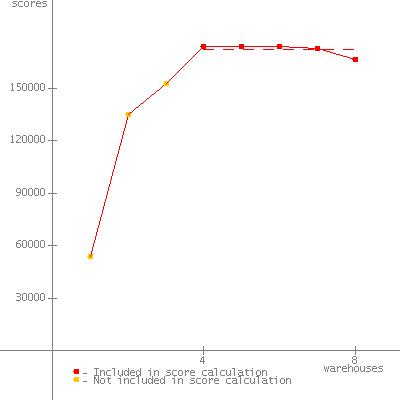

JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 53744
2 134903
3 152585
4 174013 *
5 173939 *
6 174217 *
7 172979 *
8 166820 *
SPECjbb2005 (from 4 to 8) 172394 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 28, 2013

JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 53482
2 135142
3 159719
4 176357 *
5 175241 *
6 173943 *
7 172976 *
8 166955 *
SPECjbb2005 (from 4 to 8) 173094 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 28, 2013

JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 56528
2 143434
3 160418
4 180006 *
5 178545 *
6 177407 *
7 176195 *
8 169236 *
SPECjbb2005 (from 4 to 8) 176278 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 28, 2013

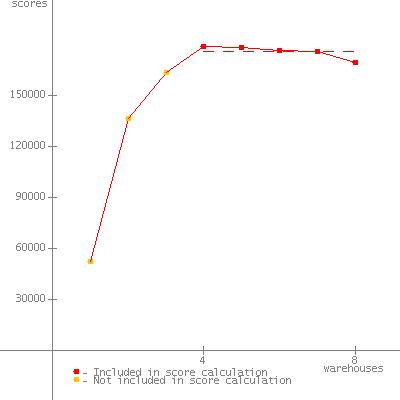

JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 52297
2 136726
3 163781
4 179314 *
5 178407 *
6 177044 *
7 175988 *
8 169474 *
SPECjbb2005 (from 4 to 8) 176045 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 28, 2013

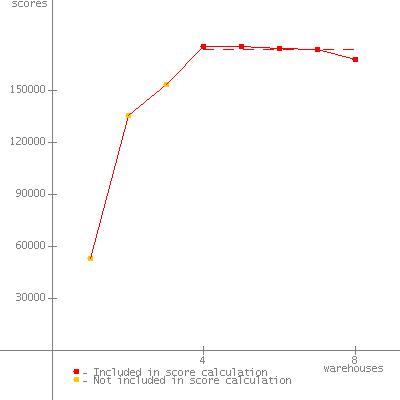

JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 53013
2 135832
3 153148
4 175528 *
5 175339 *
6 174438 *
7 173523 *
8 167930 *
SPECjbb2005 (from 4 to 8) 173351 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 28, 2013

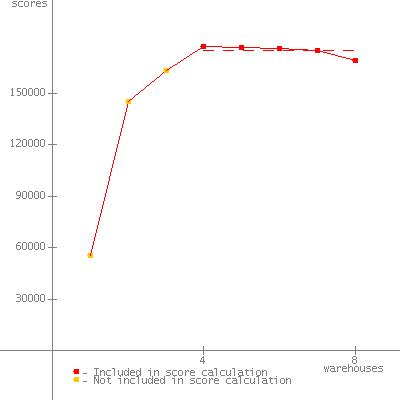

JVM 9 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 55440
2 144898
3 163475
4 177435 *
5 176675 *
6 176055 *
7 174814 *
8 169125 *
SPECjbb2005 (from 4 to 8) 174821 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 28, 2013

JVM 10 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 59258
2 140567
3 159935
4 174243 *
5 173107 *
6 172500 *
7 171705 *
8 164635 *
SPECjbb2005 (from 4 to 8) 171238 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 28, 2013

JVM 11 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 57095
2 140513
3 164065
4 177239 *
5 175403 *
6 174232 *
7 173007 *
8 167564 *
SPECjbb2005 (from 4 to 8) 173489 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 28, 2013

JVM 12 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 54720
2 140872
3 161516
4 175969 *
5 174684 *
6 174125 *
7 172978 *
8 167304 *
SPECjbb2005 (from 4 to 8) 173012 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 28, 2013
SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 02-Oct-2013
