SPECjbb2005 SPECjbb2005 bops = 3663756, SPECjbb2005 bops/JVM = 114492
IBM Corporation IBM Flex System p460 (4.1 GHz, 32 core)
IBM Corporation JRE 1.7.0 (32-bit) IBM J9 2.6 AIX [build pap3270sr3-20120319_01(SR3)]

JVM run JVM Scores
1115030
2116273
3114977
4115628
5114093
6115692
7114505
8114610
9112867
10113903
11114517
12113084
13115111
14114736
15114225
16116012
17113929
18114714
19114161
20113793
21114096
22114282
23115173
24115622
25114807
26113884
27113807
28114303
29114583
30112963
31114364
32114012
SPECjbb2005 bops = 3663756, SPECjbb2005 bops/JVM = 114492

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM Flex System p460 (4.1 GHz, 32 core)
Processor POWER7+ (Intelligent Energy Optimization enabled, up to 4340 MHz)
MHz 4116
# of Chips 4
# of Cores 32
# of Cores/Chip 8
HW Threading Enabled? Yes
Procs Avail to Java 128
Memory (MB) 262144
Memory Details 32 x 8 GB DDR3 1066 MHz
Primary cache 32 KBI + 32 KBD on chip per core
Secondary cache 256 KB I+D on chip per core
Other cache 10 MB I+D on chip per core
Filesystem AIX/JFS2
Disks 1 x 300 GB SFF-1 SSD
Other hardware IBM Flex System Enterprise Chassis 7893-92X
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version JRE 1.7.0 (32-bit) IBM J9 2.6 AIX [build pap3270sr3-20120319_01(SR3)]
JVM Command Line execrset -c processor_set_number -e java -Xlp -Xgcpolicy:gencon -Xms2560m -Xmx2560m -Xmn2048m -Xaggressive -XtlhPrefetch -XlockReservation -Xgcthreads4 spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 2560
JVM Maximum Heap Memory (MB) 2560
JVM Address bits 32
JVM CLASSPATH jbb.jar:
check.jar
JVM BOOTCLASSPATH /speclocal/sdk/jre/lib/ppc/default/jclSC170/vm.jar:
/speclocal/sdk/jre/lib/se-service.jar:
/speclocal/sdk/jre/lib/math.jar:
/speclocal/sdk/jre/lib/jlm.jar:
/speclocal/sdk/jre/lib/ibmorb.jar:
/speclocal/sdk/jre/lib/ibmorbapi.jar:
/speclocal/sdk/jre/lib/ibmcfw.jar:
/speclocal/sdk/jre/lib/ibmpkcs.jar:
/speclocal/sdk/jre/lib/ibmcertpathfw.jar:
/speclocal/sdk/jre/lib/ibmjgssfw.jar:
/speclocal/sdk/jre/lib/ibmjssefw.jar:
/speclocal/sdk/jre/lib/ibmsaslfw.jar:
/speclocal/sdk/jre/lib/ibmjcefw.jar:
/speclocal/sdk/jre/lib/ibmjgssprovider.jar:
/speclocal/sdk/jre/lib/ibmjsseprovider2.jar:
/speclocal/sdk/jre/lib/ibmcertpathprovider.jar:
/speclocal/sdk/jre/lib/xmldsigfw.jar:
/speclocal/sdk/jre/lib/xml.jar:
/speclocal/sdk/jre/lib/charsets.jar:
/speclocal/sdk/jre/lib/resources.jar:
/speclocal/sdk/jre/lib/rt.jar
OS Version IBM AIX V7.1 TL2 SP3
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location Austin, TX
Test date Jun 20, 2013
H/w available Aug-2013
JVM available Nov-2012
OS available Aug-2013
Other s/w available
AOT Compilation

Tuning
Operating system tunings
  • dscrctl -n -s 1
  • MEMORY_AFFINITY=MCM
  • IBM Chassis Management Module used to set "Dynamic Power Saving - Favor Performance" mode for this Compute Node

Notes
  • 12800 16 MB large pages defined with vmo command
  • 32 JVMs were run in processor sets each containing 1 core
  • This Compute Node is housed in an "IBM Flex System Enterprise Chassis" and is the only Compute Node

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 30082
2 71458
3 95600
4 118965 *
5 117268 *
6 115104 *
7 113016 *
8 110798 *
SPECjbb2005 (from 4 to 8) 115030 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 20, 2013

JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 27650
2 74528
3 96532
4 120219 *
5 118326 *
6 116335 *
7 114142 *
8 112344 *
SPECjbb2005 (from 4 to 8) 116273 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 20, 2013

JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 30395
2 72720
3 92805
4 119311 *
5 116873 *
6 114567 *
7 113209 *
8 110925 *
SPECjbb2005 (from 4 to 8) 114977 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 20, 2013

JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 29331
2 70777
3 93909
4 119484 *
5 117716 *
6 115970 *
7 113713 *
8 111257 *
SPECjbb2005 (from 4 to 8) 115628 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 20, 2013

JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 28747
2 68613
3 92894
4 118187 *
5 116279 *
6 114179 *
7 111840 *
8 109980 *
SPECjbb2005 (from 4 to 8) 114093 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 20, 2013

JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 30222
2 74710
3 95535
4 119839 *
5 117753 *
6 115713 *
7 113655 *
8 111500 *
SPECjbb2005 (from 4 to 8) 115692 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 20, 2013

JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 26936
2 69727
3 92641
4 117998 *
5 116688 *
6 114721 *
7 112490 *
8 110628 *
SPECjbb2005 (from 4 to 8) 114505 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 20, 2013

JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 29309
2 74287
3 94940
4 118680 *
5 116545 *
6 114473 *
7 112550 *
8 110802 *
SPECjbb2005 (from 4 to 8) 114610 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 20, 2013

JVM 9 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 32000
2 71127
3 93661
4 116763 *
5 114638 *
6 112883 *
7 111014 *
8 109034 *
SPECjbb2005 (from 4 to 8) 112867 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 20, 2013

JVM 10 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 30033
2 70900
3 94674
4 117678 *
5 116063 *
6 114012 *
7 111700 *
8 110061 *
SPECjbb2005 (from 4 to 8) 113903 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 20, 2013

JVM 11 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 28752
2 73245
3 95290
4 118415 *
5 116350 *
6 114676 *
7 112447 *
8 110695 *
SPECjbb2005 (from 4 to 8) 114517 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 20, 2013

JVM 12 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 28731
2 69457
3 93917
4 116807 *
5 115079 *
6 113316 *
7 110933 *
8 109286 *
SPECjbb2005 (from 4 to 8) 113084 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 20, 2013

JVM 13 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 28350
2 74857
3 95807
4 119132 *
5 116946 *
6 115168 *
7 113031 *
8 111278 *
SPECjbb2005 (from 4 to 8) 115111 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 20, 2013

JVM 14 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 29292
2 73994
3 95592
4 118564 *
5 116457 *
6 114988 *
7 112604 *
8 111067 *
SPECjbb2005 (from 4 to 8) 114736 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 20, 2013

JVM 15 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 28195
2 73644
3 95167
4 118006 *
5 116058 *
6 114343 *
7 112083 *
8 110638 *
SPECjbb2005 (from 4 to 8) 114225 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 20, 2013

JVM 16 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 29323
2 72478
3 96474
4 120260 *
5 118051 *
6 115947 *
7 113682 *
8 112120 *
SPECjbb2005 (from 4 to 8) 116012 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 20, 2013

JVM 17 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 28807
2 72403
3 92510
4 117898 *
5 115856 *
6 113840 *
7 111636 *
8 110414 *
SPECjbb2005 (from 4 to 8) 113929 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 20, 2013

JVM 18 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 28808
2 75221
3 95059
4 119081 *
5 116625 *
6 114740 *
7 112597 *
8 110529 *
SPECjbb2005 (from 4 to 8) 114714 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 20, 2013

JVM 19 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 26409
2 72723
3 94472
4 118141 *
5 116216 *
6 113953 *
7 112346 *
8 110147 *
SPECjbb2005 (from 4 to 8) 114161 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 20, 2013

JVM 20 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 28293
2 69590
3 94720
4 117826 *
5 115728 *
6 113843 *
7 111614 *
8 109952 *
SPECjbb2005 (from 4 to 8) 113793 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 20, 2013

JVM 21 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 32272
2 72844
3 95036
4 118167 *
5 115914 *
6 114136 *
7 111945 *
8 110315 *
SPECjbb2005 (from 4 to 8) 114096 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 20, 2013

JVM 22 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 27620
2 70187
3 92700
4 118159 *
5 116439 *
6 114434 *
7 111966 *
8 110411 *
SPECjbb2005 (from 4 to 8) 114282 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 20, 2013

JVM 23 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 29200
2 69332
3 95206
4 118862 *
5 117408 *
6 115266 *
7 112984 *
8 111347 *
SPECjbb2005 (from 4 to 8) 115173 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 20, 2013

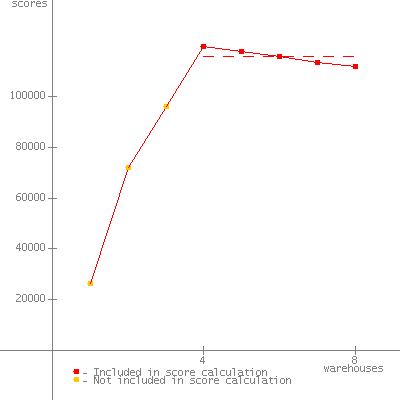

JVM 24 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 26347
2 71805
3 95823
4 119711 *
5 117739 *
6 115642 *
7 113458 *
8 111559 *
SPECjbb2005 (from 4 to 8) 115622 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 20, 2013

JVM 25 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 28852
2 70844
3 95367
4 118800 *
5 116872 *
6 114660 *
7 112648 *
8 111057 *
SPECjbb2005 (from 4 to 8) 114807 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 20, 2013

JVM 26 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 28412
2 72996
3 95163
4 118123 *
5 115659 *
6 113812 *
7 111713 *
8 110112 *
SPECjbb2005 (from 4 to 8) 113884 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 20, 2013

JVM 27 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 29730
2 75485
3 94393
4 117727 *
5 115731 *
6 113877 *
7 111843 *
8 109858 *
SPECjbb2005 (from 4 to 8) 113807 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 20, 2013

JVM 28 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 30481
2 71941
3 95267
4 118371 *
5 116298 *
6 114201 *
7 112088 *
8 110555 *
SPECjbb2005 (from 4 to 8) 114303 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 20, 2013

JVM 29 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 28948
2 67400
3 92846
4 117980 *
5 116819 *
6 114390 *
7 112834 *
8 110892 *
SPECjbb2005 (from 4 to 8) 114583 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 20, 2013

JVM 30 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 29900
2 68777
3 93381
4 116745 *
5 114866 *
6 112975 *
7 111078 *
8 109151 *
SPECjbb2005 (from 4 to 8) 112963 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 20, 2013

JVM 31 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 28959
2 72592
3 94976
4 118184 *
5 116032 *
6 114377 *
7 112689 *
8 110540 *
SPECjbb2005 (from 4 to 8) 114364 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 20, 2013

JVM 32 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 31970
2 70356
3 93369
4 117740 *
5 116075 *
6 114044 *
7 112103 *
8 110096 *
SPECjbb2005 (from 4 to 8) 114012 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 20, 2013
SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 21-Aug-2013
