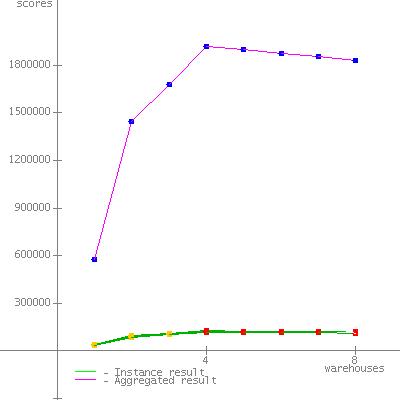

SPECjbb2005 SPECjbb2005 bops = 1877284, SPECjbb2005 bops/JVM = 117330
IBM Corporation IBM Power 730 Express (4.2 GHz, 16 core, SLES)
IBM Corporation JRE 1.7.0 (32-bit) IBM J9 2.6 Linux (build pxp3270sr3-20121025_01(SR3))

JVM run JVM Scores
1114233
2121448
3120976
4121455
5113634
6114113
7119910
8120499
9121142
10113324
11113329
12113608
13120914
14112970
15121995
16113734
SPECjbb2005 bops = 1877284, SPECjbb2005 bops/JVM = 117330

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM Power 730 Express (4.2 GHz, 16 core, SLES)
Processor POWER7+ (Intelligent Energy Optimization enabled, up to 4540 MHz)
MHz 4228
# of Chips 2
# of Cores 16
# of Cores/Chip 8
HW Threading Enabled? yes
Procs Avail to Java 64
Memory (MB) 131072
Memory Details 16 x 8 GB DDR3 1066 MHz
Primary cache 32 KB I + 32 KB D on chip per core
Secondary cache 256 KB I+D on chip per core
Other cache 10 MB I+D on chip per core
Filesystem ext3
Disks 1 x 146.8 GB SAS SFF 15K RPM
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version JRE 1.7.0 (32-bit) IBM J9 2.6 Linux (build pxp3270sr3-20121025_01(SR3))
JVM Command Line taskset -c [0-3,4-7,...,60-63] -- -Xlp -Xaggressive -Xgcpolicy:gencon -Xgcthreads4 -XlockReservation -Xnoloa -Xms2560m -Xmx2560m -Xmn2048m -XtlhPrefetch spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 2560
JVM Maximum Heap Memory (MB) 2560
JVM Address bits 32
JVM CLASSPATH ./jbb.jar:
./check.jar:
JVM BOOTCLASSPATH /autobench/sources/ibm-java-ppc-70/jre/lib/aggressive.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ppc/default/jclSC170/vm.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/se-service.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/math.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/jlm.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmorb.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmorbapi.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmcfw.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmpkcs.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmcertpathfw.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmjgssfw.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmjssefw.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmsaslfw.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmjcefw.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmjgssprovider.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmjsseprovider2.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmcertpathprovider.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/xmldsigfw.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/xml.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/charsets.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/resources.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/rt.jar
OS Version SUSE Linux Enterprise Server 11 SP2 (3.0.42-0.7-ppc64)
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location Austin, TX
Test date Jan 28, 2013
H/w available Feb-2013
JVM available Nov-2012
OS available Feb-2012
Other s/w available
AOT Compilation

Tuning
Operating System tunings
  • echo 3000 > /proc/sys/vm/nr_hugepages
  • echo 50331648000 > /proc/sys/kernel/shmmax
  • echo 768000 > /proc/sys/kernel/shmall
  • ppc64_cpu --dscr=1
Platform tunings
  • The "Dynamic Power Saver - Favor Performance" mode was enabled on "IBM Advanced System Management"
Notes
  • 16 JVMs were run in processor sets each containing 1 core.

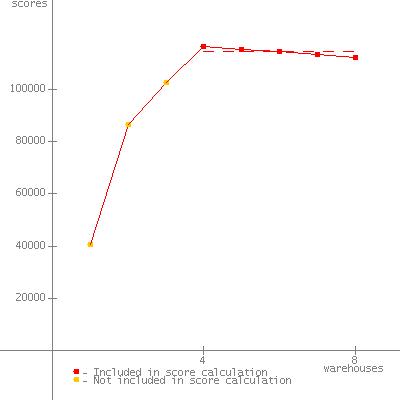

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 40415
2 86453
3 102435
4 116417 *
5 115305 *
6 114231 *
7 113240 *
8 111968 *
SPECjbb2005 (from 4 to 8) 114233 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 28, 2013

JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 38330
2 96511
3 108283
4 125075 *
5 123144 *
6 121641 *
7 119377 *
8 118002 *
SPECjbb2005 (from 4 to 8) 121448 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 28, 2013

JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37212
2 94819
3 107856
4 124014 *
5 122652 *
6 121018 *
7 119364 *
8 117830 *
SPECjbb2005 (from 4 to 8) 120976 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 28, 2013

JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37203
2 94904
3 108744
4 124608 *
5 123004 *
6 121340 *
7 119859 *
8 118462 *
SPECjbb2005 (from 4 to 8) 121455 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 28, 2013

JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35042
2 85733
3 102767
4 115980 *
5 114662 *
6 113500 *
7 112552 *
8 111475 *
SPECjbb2005 (from 4 to 8) 113634 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 28, 2013

JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39690
2 89731
3 100884
4 116107 *
5 115197 *
6 114206 *
7 113266 *
8 111788 *
SPECjbb2005 (from 4 to 8) 114113 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 28, 2013

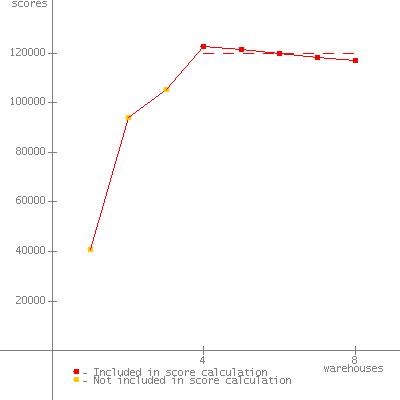

JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 40723
2 94213
3 105464
4 122892 *
5 121385 *
6 119796 *
7 118409 *
8 117067 *
SPECjbb2005 (from 4 to 8) 119910 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 28, 2013

JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33250
2 97917
3 106673
4 124050 *
5 122283 *
6 120081 *
7 118595 *
8 117488 *
SPECjbb2005 (from 4 to 8) 120499 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 28, 2013

JVM 9 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34865
2 94530
3 109813
4 124694 *
5 122462 *
6 121075 *
7 119460 *
8 118016 *
SPECjbb2005 (from 4 to 8) 121142 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 28, 2013

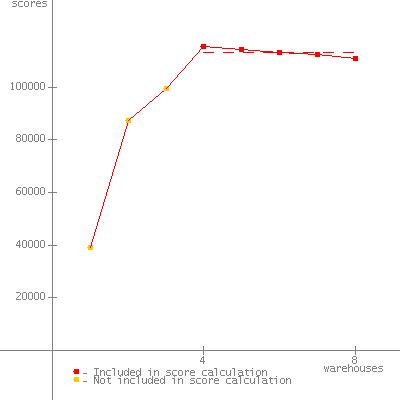

JVM 10 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39288
2 87456
3 99532
4 115643 *
5 114201 *
6 113222 *
7 112446 *
8 111106 *
SPECjbb2005 (from 4 to 8) 113324 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 28, 2013

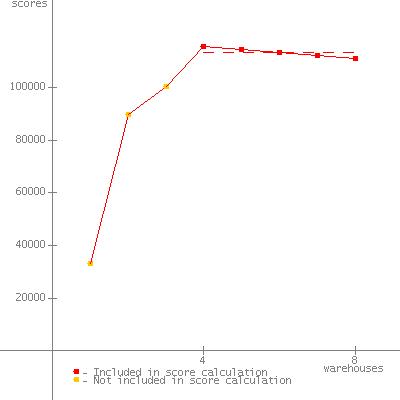

JVM 11 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33132
2 89749
3 100355
4 115837 *
5 114403 *
6 113330 *
7 112100 *
8 110973 *
SPECjbb2005 (from 4 to 8) 113329 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 28, 2013

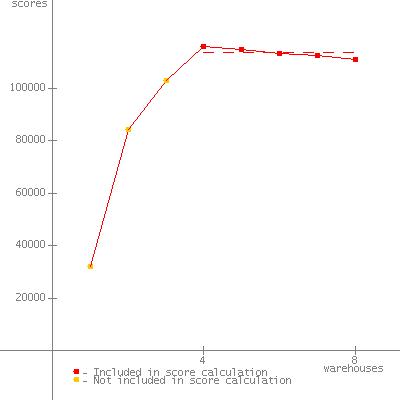

JVM 12 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 32154
2 84356
3 103195
4 116143 *
5 114838 *
6 113529 *
7 112460 *
8 111067 *
SPECjbb2005 (from 4 to 8) 113608 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 28, 2013

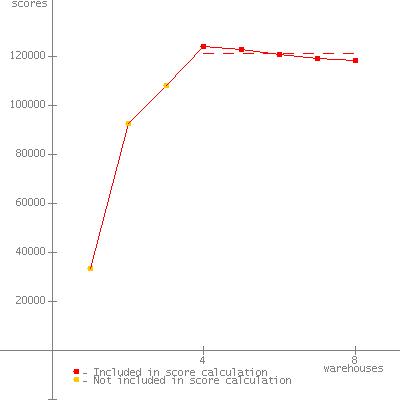

JVM 13 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33664
2 92642
3 107866
4 124065 *
5 122541 *
6 120726 *
7 119142 *
8 118095 *
SPECjbb2005 (from 4 to 8) 120914 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 28, 2013

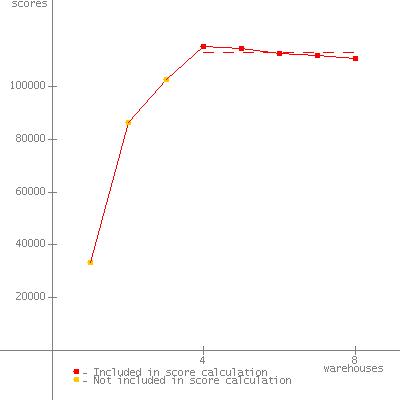

JVM 14 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33499
2 86422
3 102609
4 115289 *
5 114480 *
6 112667 *
7 111699 *
8 110716 *
SPECjbb2005 (from 4 to 8) 112970 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 28, 2013

JVM 15 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33094
2 88605
3 109471
4 124866 *
5 123522 *
6 122158 *
7 120641 *
8 118790 *
SPECjbb2005 (from 4 to 8) 121995 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 28, 2013

JVM 16 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34290
2 80509
3 101769
4 116225 *
5 115183 *
6 113692 *
7 112443 *
8 111130 *
SPECjbb2005 (from 4 to 8) 113734 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 28, 2013
SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 20-Feb-2013
