SPECjbb2005 SPECjbb2005 bops = 1319164, SPECjbb2005 bops/JVM = 82448
Hewlett-Packard Company ProLiant DL385p Gen8
IBM Corporation IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled)

JVM run JVM Scores
182486
281961
383706
482171
581775
681557
782248
882632
982496
1082241
1182559
1282653
1382299
1481789
1583055
1683536
SPECjbb2005 bops = 1319164, SPECjbb2005 bops/JVM = 82448

Hardware
Hardware Vendor Hewlett-Packard Company
Vendor URL http://www.hp.com
Model ProLiant DL385p Gen8
Processor AMD Opteron 6284 SE (AMD Turbo CORE Technology up to 3.40 GHz)
MHz 2700
# of Chips 2
# of Cores 32
# of Cores/Chip 16
HW Threading Enabled? No
Procs Avail to Java 32
Memory (MB) 65501
Memory Details 4 of 8 DIMMs per socket filled with 8 GB 2Rx4 PC3-12800R-11, ECC memory
Primary cache 512 KB I + 256 KB D on chip per chip
Secondary cache 16 MB I+D on chip per chip, 2 MB shared / 2 cores
Other cache 16 MB I+D on chip per chip, 8 MB shared / 2 cores
Filesystem NTFS
Disks 1 x 72 GB 15 K SAS
Other hardware None
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command Line java -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -Xlp
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\java\IBM\jre\bin\compressedrefs\jclSC160\vm.jar;
C:\java\IBM\jre\lib\annotation.jar;
C:\java\IBM\jre\lib\beans.jar;
C:\java\IBM\jre\lib\java.util.jar;
C:\java\IBM\jre\lib\jndi.jar;
C:\java\IBM\jre\lib\logging.jar;
C:\java\IBM\jre\lib\security.jar;
C:\java\IBM\jre\lib\sql.jar;
C:\java\IBM\jre\lib\ibmorb.jar;
C:\java\IBM\jre\lib\ibmorbapi.jar;
C:\java\IBM\jre\lib\ibmcfw.jar;
C:\java\IBM\jre\lib\rt.jar;
C:\java\IBM\jre\lib\charsets.jar;
C:\java\IBM\jre\lib\resources.jar;
C:\java\IBM\jre\lib\ibmpkcs.jar;
C:\java\IBM\jre\lib\ibmcertpathfw.jar;
C:\java\IBM\jre\lib\ibmjgssfw.jar;
C:\java\IBM\jre\lib\ibmjssefw.jar;
C:\java\IBM\jre\lib\ibmsaslfw.jar;
C:\java\IBM\jre\lib\ibmjcefw.jar;
C:\java\IBM\jre\lib\ibmjgssprovider.jar;
C:\java\IBM\jre\lib\ibmjsseprovider2.jar;
C:\java\IBM\jre\lib\ibmcertpathprovider.jar;
C:\java\IBM\jre\lib\ibmxmlcrypto.jar;
C:\java\IBM\jre\lib\management-agent.jar;
C:\java\IBM\jre\lib\xml.jar;
C:\java\IBM\jre\lib\jlm.jar;
C:\java\IBM\jre\lib\javascript.jar
OS Version Microsoft Windows Server 2008 R2 Enterprise Edition with SP1 (64-bit)
Other software IBM Websphere Application Server V7.0 for Windows on x86-64-bit
Test Information
Tested by Hewlett-Packard Company
SPEC license # 3
Test location Houston, TX
Test date Jun 5, 2012
H/w available Jun-2012
JVM available Aug-2009
OS available Feb-2011
Other s/w available None
AOT Compilation
None
Tuning
  • "Lock pages in memory" enabled for benchmark user.
  • Used "start /AFFINITY 0x3, 0xC, 0x30, 0xc0, 0x300, 0xc00, 0x3000, 0xc000, 0x30000, 0xc0000, 0x300000, 0xc00000, 0x3000000, 0xc000000, 0x30000000, 0xc0000000"
  • Power Option set to High Performance in OS.
    • Notes
  • Command line options are described at: http://publib.boulder.ibm.com/infocenter/javasdk/v6r0/index.jsp
  • BIOS Configuration:
  • HP Power Profile - Maximum Peroformance
  • Dynamic Power Savings Mode Response - Slow
  • Collaborative Power Control - Disabled
  • Thermal Configuration - Maximum Cooling
  • Hardware Prefetch training on Software Prefetch - Disabled
  • DRAM Prefetch on I/O Request - Disabled
  • CPU Core Hardware Prefetcher - Disabled
  • CPU Cache Stride Prefetcher - Disabled

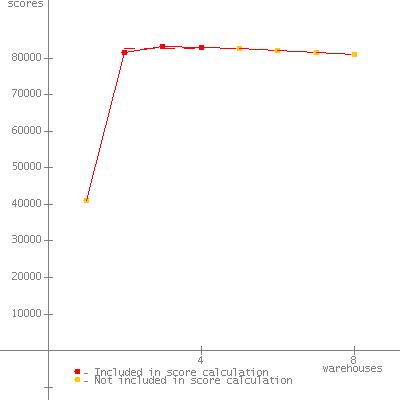

    JVM 1 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 41792
    2 82340 *
    3 82521 *
    4 82596 *
    5 82204
    6 81852
    7 81702
    8 81319
    SPECjbb2005 (from 2 to 4) 82486 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Jun 5, 2012

    JVM 2 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 40437
    2 80901 *
    3 82750 *
    4 82233 *
    5 81743
    6 81253
    7 80938
    8 80749
    SPECjbb2005 (from 2 to 4) 81961 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Jun 5, 2012

    JVM 3 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 40807
    2 83276 *
    3 84232 *
    4 83609 *
    5 83220
    6 82029
    7 81691
    8 81358
    SPECjbb2005 (from 2 to 4) 83706 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Jun 5, 2012

    JVM 4 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 42915
    2 81484 *
    3 82742 *
    4 82285 *
    5 81872
    6 81551
    7 81175
    8 80588
    SPECjbb2005 (from 2 to 4) 82171 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Jun 5, 2012

    JVM 5 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 41480
    2 80721 *
    3 82607 *
    4 81996 *
    5 81271
    6 80599
    7 80374
    8 79984
    SPECjbb2005 (from 2 to 4) 81775 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Jun 5, 2012

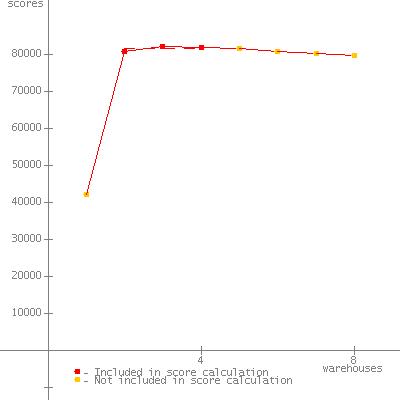

    JVM 6 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 42082
    2 80671 *
    3 82234 *
    4 81766 *
    5 81554
    6 80876
    7 80305
    8 79847
    SPECjbb2005 (from 2 to 4) 81557 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Jun 5, 2012

    JVM 7 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 41357
    2 81244 *
    3 82991 *
    4 82508 *
    5 81957
    6 81209
    7 81112
    8 80748
    SPECjbb2005 (from 2 to 4) 82248 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Jun 5, 2012

    JVM 8 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 39633
    2 82177 *
    3 82915 *
    4 82805 *
    5 82017
    6 81845
    7 81535
    8 81268
    SPECjbb2005 (from 2 to 4) 82632 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Jun 5, 2012

    JVM 9 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 39925
    2 81661 *
    3 83135 *
    4 82691 *
    5 82239
    6 81747
    7 81343
    8 80741
    SPECjbb2005 (from 2 to 4) 82496 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Jun 5, 2012

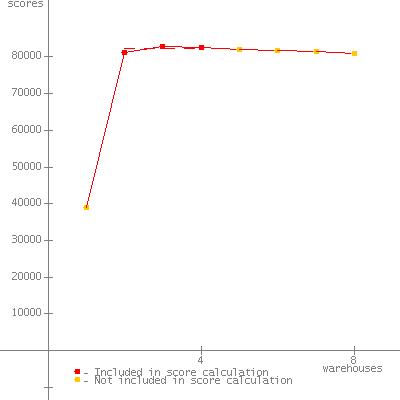

    JVM 10 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 39000
    2 81211 *
    3 82937 *
    4 82575 *
    5 82057
    6 81818
    7 81509
    8 80835
    SPECjbb2005 (from 2 to 4) 82241 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Jun 5, 2012

    JVM 11 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 41098
    2 81523 *
    3 83315 *
    4 82838 *
    5 82568
    6 82012
    7 81702
    8 81047
    SPECjbb2005 (from 2 to 4) 82559 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Jun 5, 2012

    JVM 12 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 40677
    2 81929 *
    3 83305 *
    4 82724 *
    5 81831
    6 81933
    7 81732
    8 81170
    SPECjbb2005 (from 2 to 4) 82653 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Jun 5, 2012

    JVM 13 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 41060
    2 82024 *
    3 82683 *
    4 82190 *
    5 81807
    6 81065
    7 80886
    8 80348
    SPECjbb2005 (from 2 to 4) 82299 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Jun 5, 2012

    JVM 14 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 40045
    2 80991 *
    3 82433 *
    4 81941 *
    5 81689
    6 81206
    7 80748
    8 80230
    SPECjbb2005 (from 2 to 4) 81789 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Jun 5, 2012

    JVM 15 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 41136
    2 82299 *
    3 83740 *
    4 83127 *
    5 82746
    6 82459
    7 82033
    8 81657
    SPECjbb2005 (from 2 to 4) 83055 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Jun 5, 2012

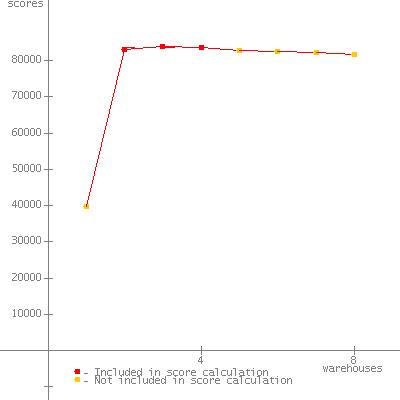

    JVM 16 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 39643
    2 83150 *
    3 83980 *
    4 83477 *
    5 82810
    6 82580
    7 82307
    8 81595
    SPECjbb2005 (from 2 to 4) 83536 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Jun 5, 2012
    SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
    Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

    First published at SPEC.org on 27-Jun-2012
