SPECjbb

SPECjbb2005		SPECjbb2005 bops = 414695, SPECjbb2005 bops/JVM = 414695
Dell Inc. PowerEdge T110 II (Intel E3-1270 V2, 3.5GHz)
Oracle Oracle HotSpot(TM) 64-Bit Server VM (build 1.6.0_25, mixed mode)

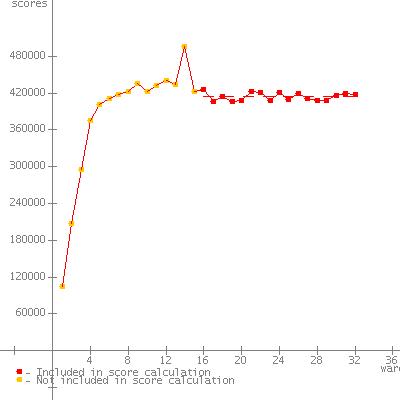

Warehouses	SPECjbb2005 bops	Incl. in metric
1	104142
2	207314
3	295993
4	375050
5	401505
6	411352
7	418035
8	422700
9	435569
10	422872
11	432154
12	440101
13	433442
14	496778
15	423176
16	425770	*
17	407002	*
18	414193	*
19	407196	*
20	408234	*
21	423490	*
22	421644	*
23	408908	*
24	421926	*
25	410337	*
26	419332	*
27	411577	*
28	408602	*
29	408796	*
30	416444	*
31	418734	*
32	417625	*
SPECjbb2005	(from 16 to 32)	414695 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: May 2, 2012

Hardware

Hardware Vendor Dell Inc.

Vendor URL http://www.dell.com

Model PowerEdge T110 II (Intel E3-1270 V2, 3.5GHz)

Processor Intel Xeon E3-1270V2 (Intel Turbo Boost Technology up to 3.9 GHz)

MHz 3500

# of Chips 1

# of Cores 4

# of Cores/Chip 4

HW Threading Enabled? Yes

Procs Avail to Java 8

Memory (MB) 16384

Memory Details 2 x 8GB 2Rx8 PC3L-12800E-11, ECC, Slots A1 and B1 Populated

Primary cache 32 KB I + 32 KB D

Secondary cache 256 KB I+D on chip per core

Other cache 8 MB I+D on chip per chip

Filesystem NTFS

Disks 1 x 250 GB SATA(classes + OS)

Other hardware None

Software

Software Vendor Oracle

Vendor URL http://www.oracle.com

JVM Version Oracle HotSpot(TM) 64-Bit Server VM (build 1.6.0_25, mixed mode)

JVM Command Line -server -Xmx12g -Xms12g -Xmn10g -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=16 -XX:-UseAdaptiveSizePolicy -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseAdaptiveSizePolicy

JVM Initial Heap Memory (MB) 12288

JVM Maximum Heap Memory (MB) 12288

JVM Address bits 64

JVM CLASSPATH .\jbb.jar;
.\check.jar;

JVM BOOTCLASSPATH c:\specjbb2005\jvm\jre6\lib\alt-string.jar;
c:\specjbb2005\jvm\jre6\lib\alt-rt.jar;
c:\specjbb2005\jvm\jre6\lib\resources.jar;
c:\specjbb2005\jvm\jre6\lib\rt.jar;
c:\specjbb2005\jvm\jre6\lib\sunrsasign.jar;
c:\specjbb2005\jvm\jre6\lib\jsse.jar;
c:\specjbb2005\jvm\jre6\lib\jce.jar;
c:\specjbb2005\jvm\jre6\lib\charsets.jar;
c:\specjbb2005\jvm\jre6\lib\modules\jdk.boot.jar;
c:\specjbb2005\jvm\jre6\classes

OS Version Windows 2008 Enterprise x64 Edition R2 SP1

Other software None

Test Information

Tested by Dell Inc.

SPEC license # 55

Test location Round Rock, TX

Test date May 2, 2012

H/w available May-2012

JVM available Apr-2011

OS available Feb-2011

Other s/w available NA

AOT Compilation

None

Tuning

Operating system tunings
Lock pages in memory enabled
BIOS Tunings
Adjacent Cache Line Prefetch disabled
Hardware Prefetch disabled
DCU Streamer Prefetchdisabled
DCU IP Prefetch disabled
Maximum Performance Mode

Notes

"Notes here"

Details of Runs

Warehouses	Thrput	Total heap (MB)		Thread spread %	% > 120s	transaction type	Count	Time (in seconds)
Warehouses	Thrput	Size	Used	Thread spread %	% > 120s	transaction type	Count	total	max
1	104142	12123	5570	<0.01%	<0.01	new_order	1374760	13.6	.016
						payment	947689	4.93	.016
						order_status	94769	.514	.016
						delivery	94769	4.79	.016
						stock_level	94768	.697	.016
						cust_report	520620	4.58	.016
2	207314	12123	5468	.650%	<0.01	new_order	2733909	25.7	.016
						payment	1885618	10.2	.031
						order_status	188562	1.25	.031
						delivery	188562	10.4	.016
						stock_level	188562	1.49	.016
						cust_report	1037324	8.86	.016
3	295993	12165	7960	.149%	<0.01	new_order	3904265	38.8	.032
						payment	2692100	15.0	.032
						order_status	269209	2.23	.016
						delivery	269211	15.5	.032
						stock_level	269210	2.10	.016
						cust_report	1479941	13.8	.016
4	375050	12180	1596	1.96%	<0.01	new_order	4946393	52.5	.047
						payment	3411131	20.2	.047
						order_status	341112	2.91	.016
						delivery	341114	20.7	.031
						stock_level	341113	2.58	.016
						cust_report	1875876	18.2	.016
5	401505	12189	8849	23.3%	<0.01	new_order	5295662	63.3	.016
						payment	3651868	26.5	.016
						order_status	365188	3.37	.016
						delivery	365187	27.0	.016
						stock_level	365186	3.10	.016
						cust_report	2008082	23.0	.016
6	411352	12208	7528	14.1%	<0.01	new_order	5427664	74.5	.016
						payment	3743301	30.1	.016
						order_status	374330	3.83	.016
						delivery	374329	35.8	.016
						stock_level	374332	4.26	.016
						cust_report	2058942	27.6	.016
7	418035	12224	6946	12.6%	<0.01	new_order	5513118	83.7	.016
						payment	3802091	33.6	.016
						order_status	380211	4.30	.016
						delivery	380209	46.8	.016
						stock_level	380208	5.17	.016
						cust_report	2091066	31.6	.016
8	422700	12234	7504	2.50%	<0.01	new_order	5574610	90.6	.032
						payment	3844528	37.5	.016
						order_status	384451	4.95	.016
						delivery	384454	64.6	.032
						stock_level	384452	6.93	.032
						cust_report	2114437	35.3	.032
9	435569	12246	424	38.2%	<0.01	new_order	5743702	103	.234
						payment	3961570	43.0	.250
						order_status	396155	5.86	.218
						delivery	396158	72.6	.219
						stock_level	396155	8.38	.218
						cust_report	2179432	44.7	.219
10	422872	12248	439	40.2%	<0.01	new_order	5578804	113	.405
						payment	3848141	47.6	.219
						order_status	384812	6.36	.374
						delivery	384814	79.8	.312
						stock_level	384812	9.28	.219
						cust_report	2117454	44.6	.219
11	432154	12248	3525	42.5%	<0.01	new_order	5738151	132	1.22
						payment	3957097	53.9	.390
						order_status	395707	6.47	.219
						delivery	395706	83.2	.359
						stock_level	395712	10.7	1.62
						cust_report	2176028	53.3	.608
12	440101	12247	7691	51.3%	<0.01	new_order	5843280	145	.436
						payment	4029864	61.3	.422
						order_status	402988	7.75	.421
						delivery	402983	96.6	.484
						stock_level	402987	11.9	.422
						cust_report	2216425	54.7	.499
13	433442	12243	534	34.9%	<0.01	new_order	5719496	153	.422
						payment	3944328	59.3	.421
						order_status	394432	8.13	.390
						delivery	394430	109	.608
						stock_level	394430	11.6	.421
						cust_report	2169146	60.8	.422
14	496778	12241	585	54.7%	<0.01	new_order	6551376	183	.749
						payment	4518270	81.3	.422
						order_status	451826	8.11	.234
						delivery	451825	129	.483
						stock_level	451829	15.7	.421
						cust_report	2485167	75.5	.530
15	423176	12238	638	49.4%	<0.01	new_order	5583283	174	.780
						payment	3850901	69.2	.624
						order_status	385092	8.14	.421
						delivery	385088	121	.765
						stock_level	385089	13.7	.624
						cust_report	2118509	69.6	.624
16	425770	12242	903	37.2%	3.95	new_order	46673492	1519	.920
						payment	32189610	652	.998
						order_status	3218962	82.6	.561
						delivery	3218961	1070	.998
						stock_level	3218958	114	.530
						cust_report	17705739	616	.842
17	407002	12236	3225	40.2%	<0.01	new_order	42923101	1535	1.20
						payment	29601015	656	1.03
						order_status	2960102	83.2	.718
						delivery	2960097	1013	.999
						stock_level	2960100	128	.827
						cust_report	16278931	603	.936
18	414193	12231	3100	40.4%	1.93	new_order	44524075	1642	1.03
						payment	30705518	723	1.11
						order_status	3070555	86.7	.812
						delivery	3070551	1141	1.05
						stock_level	3070552	128	.749
						cust_report	16886975	689	1.34
19	407196	12182	6485	46.4%	<0.01	new_order	42942887	1702	1.78
						payment	29616969	721	1.53
						order_status	2961700	90.4	1.01
						delivery	2961695	1180	1.98
						stock_level	2961696	131	.874
						cust_report	16291066	666	1.17
20	408234	12209	3819	32.3%	.087	new_order	43087117	1776	1.33
						payment	29715564	766	1.25
						order_status	2971554	92.5	1.12
						delivery	2971553	1245	1.37
						stock_level	2971554	126	1.06
						cust_report	16344023	696	1.06
21	423490	12206	2120	35.9%	<0.01	new_order	44659180	1932	1.95
						payment	30800047	816	1.33
						order_status	3080005	104	.796
						delivery	3080000	1338	2.96
						stock_level	3080006	142	1.12
						cust_report	16940912	783	1.51
22	421644	12204	4302	44.3%	<0.01	new_order	44464989	2009	1.75
						payment	30665786	862	1.53
						order_status	3066578	106	1.06
						delivery	3066575	1438	4.34
						stock_level	3066579	148	1.19
						cust_report	16866558	818	1.25
23	408908	12201	11073	20.9%	<0.01	new_order	43120672	2017	1.36
						payment	29739653	872	1.37
						order_status	2973962	117	1.06
						delivery	2973964	1454	1.47
						stock_level	2973963	159	.905
						cust_report	16358636	842	1.56
24	421926	12199	2876	36.4%	<0.01	new_order	44496880	2206	1.78
						payment	30686275	952	1.58
						order_status	3068628	115	1.42
						delivery	3068627	1543	1.50
						stock_level	3068631	165	.936
						cust_report	16875675	872	1.62
25	410337	12196	2907	41.4%	<0.01	new_order	43276714	2237	1.95
						payment	29843577	1002	2.40
						order_status	2984357	126	1.72
						delivery	2984354	1571	1.81
						stock_level	2984358	162	1.76
						cust_report	16410458	863	1.64
26	419332	12193	1985	35.0%	<0.01	new_order	44223856	2356	2.04
						payment	30499634	1030	1.73
						order_status	3049964	137	1.75
						delivery	3049960	1707	1.84
						stock_level	3049967	191	1.83
						cust_report	16775428	912	1.70
27	411577	12191	4714	33.7%	<0.01	new_order	43404539	2429	1.87
						payment	29933640	1016	1.59
						order_status	2993366	124	.905
						delivery	2993360	1703	2.04
						stock_level	2993363	184	1.31
						cust_report	16462718	969	1.64
28	408602	12188	4154	45.6%	<0.01	new_order	43090028	2473	2.17
						payment	29717405	1050	2.11
						order_status	2971739	143	1.59
						delivery	2971736	1792	2.11
						stock_level	2971739	194	2.23
						cust_report	16344749	986	2.28
29	408796	12187	3867	28.7%	<0.01	new_order	43111491	2591	1.87
						payment	29731362	1107	1.93
						order_status	2973138	140	1.61
						delivery	2973131	1804	2.08
						stock_level	2973136	202	1.40
						cust_report	16351209	1027	1.87
30	416444	12184	2243	37.7%	.341	new_order	44064021	2729	2.37
						payment	30390098	1190	2.22
						order_status	3039012	171	2.08
						delivery	3039004	1893	2.57
						stock_level	3039009	192	1.58
						cust_report	16716187	1097	2.12
31	418734	12182	1107	34.2%	.172	new_order	44233962	2789	2.37
						payment	30505679	1253	2.43
						order_status	3050569	160	1.65
						delivery	3050560	1987	2.00
						stock_level	3050570	199	1.79
						cust_report	16777387	1153	2.29
32	417625	12179	1314	29.1%	.302	new_order	44173090	2900	2.28
						payment	30464329	1254	2.37
						order_status	3046430	170	2.07
						delivery	3046432	2093	2.32
						stock_level	3046434	231	2.48
						cust_report	16755546	1176	2.06
