SPECjbb2005 SPECjbb2005 bops = 424938, SPECjbb2005 bops/JVM = 424938
Dell Inc. PowerEdge R210 II (Intel E3-1280 V2, 3.6GHz)
Oracle Oracle HotSpot(TM) 64-Bit Server VM (build 1.6.0_25, mixed mode)

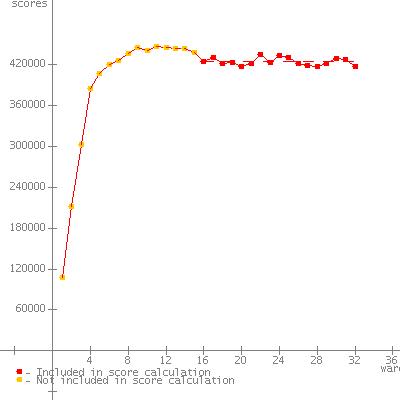

Warehouses SPECjbb2005 bops Incl. in metric
1 106989
2 211488
3 302556
4 384748
5 408158
6 420337
7 427080
8 437448
9 445290
10 440701
11 447677
12 445982
13 444468
14 443939
15 438413
16 425440 *
17 430302 *
18 422679 *
19 424161 *
20 418260 *
21 422177 *
22 435199 *
23 423271 *
24 433274 *
25 431166 *
26 422721 *
27 418870 *
28 418243 *
29 422538 *
30 429484 *
31 427816 *
32 418351 *
SPECjbb2005 (from 16 to 32) 424938 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: May 2, 2012

Hardware
Hardware Vendor Dell Inc.
Vendor URL http://www.dell.com
Model PowerEdge R210 II (Intel E3-1280 V2, 3.6GHz)
Processor Intel Xeon E3-1280V2 (Intel Turbo Boost Technology up to 4.0 GHz)
MHz 3600
# of Chips 1
# of Cores 4
# of Cores/Chip 4
HW Threading Enabled? Yes
Procs Avail to Java 8
Memory (MB) 16384
Memory Details 2 x 8GB 2Rx8 PC3L-12800E-11, ECC, Slots A1 and B1 populated
Primary cache 32 KB I + 32 KB D
Secondary cache 256 KB I+D on chip per core
Other cache 8 MB I+D on chip per chip
Filesystem NTFS
Disks 1 x 250 GB SATA(classes + OS)
Other hardware None
Software
Software Vendor Oracle
Vendor URL http://www.oracle.com
JVM Version Oracle HotSpot(TM) 64-Bit Server VM (build 1.6.0_25, mixed mode)
JVM Command Line -server -Xmx12g -Xms12g -Xmn10g -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=16 -XX:-UseAdaptiveSizePolicy -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseAdaptiveSizePolicy
JVM Initial Heap Memory (MB) 12288
JVM Maximum Heap Memory (MB) 12288
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH c:\specjbb2005\jvm\jre6\lib\alt-string.jar;
c:\specjbb2005\jvm\jre6\lib\alt-rt.jar;
c:\specjbb2005\jvm\jre6\lib\resources.jar;
c:\specjbb2005\jvm\jre6\lib\rt.jar;
c:\specjbb2005\jvm\jre6\lib\sunrsasign.jar;
c:\specjbb2005\jvm\jre6\lib\jsse.jar;
c:\specjbb2005\jvm\jre6\lib\jce.jar;
c:\specjbb2005\jvm\jre6\lib\charsets.jar;
c:\specjbb2005\jvm\jre6\lib\modules\jdk.boot.jar;
c:\specjbb2005\jvm\jre6\classes
OS Version Windows 2008 Enterprise x64 Edition R2 SP1
Other software None
Test Information
Tested by Dell Inc.
SPEC license # 55
Test location Round Rock, TX
Test date May 2, 2012
H/w available May-2012
JVM available Apr-2011
OS available Feb-2011
Other s/w available NA
AOT Compilation
None
Tuning
  • Operating system tunings
    • Lock pages in memory enabled
  • BIOS Tunings
    • Adjacent Cache Line Prefetch disabled
    • Hardware Prefetch disabled
    • DCU Streamer Prefetchdisabled
    • DCU IP Prefetch disabled
    • Maximum Performance Mode
Notes
"Notes here"

Details of Runs

Warehouses Thrput Total heap (MB) Thread spread % % > 120s transaction type Count Time (in seconds)
SizeUsed totalmax
1 106989 12123 6153 <0.01% <0.01 new_order 1410863 13.5 .016
payment 973080 5.25 .016
order_status 97308 .656 .016
delivery 97307 4.76 .016
stock_level 97308 .528 .016
cust_report 535298 4.43 .016
2 211488 12123 6689 .305% <0.01 new_order 2788980 25.4 .016
payment 1923576 10.5 .016
order_status 192358 1.41 .016
delivery 192356 10.5 .016
stock_level 192358 1.14 .016
cust_report 1058177 9.24 .016
3 302556 12170 319 .663% <0.01 new_order 3990499 38.1 .031
payment 2751881 15.1 .031
order_status 275189 1.70 .016
delivery 275189 17.1 .031
stock_level 275188 1.95 .016
cust_report 1513263 13.2 .031
4 384748 12189 5252 .498% <0.01 new_order 5073819 50.5 .032
payment 3499340 21.1 .032
order_status 349935 2.92 .016
delivery 349935 21.1 .031
stock_level 349935 2.79 .016
cust_report 1924861 18.2 .031
5 408158 12202 3475 5.66% <0.01 new_order 5385061 61.9 .016
payment 3714243 26.0 .016
order_status 371423 3.26 .016
delivery 371424 27.3 .016
stock_level 371425 3.12 .016
cust_report 2043408 23.8 .016
6 420337 12219 3287 17.9% <0.01 new_order 5546542 72.7 .016
payment 3825066 30.9 .016
order_status 382506 3.68 .016
delivery 382505 34.5 .032
stock_level 382507 4.35 .016
cust_report 2103590 29.0 .016
7 427080 12233 3856 11.7% <0.01 new_order 5631958 80.2 .016
payment 3884363 33.4 .016
order_status 388435 4.33 .016
delivery 388435 48.0 .016
stock_level 388437 5.56 .016
cust_report 2136766 33.1 .016
8 437448 12241 6618 1.03% <0.01 new_order 5769481 90.9 .016
payment 3978795 37.8 .016
order_status 397878 4.79 .016
delivery 397879 61.1 .016
stock_level 397881 7.03 .016
cust_report 2188102 38.3 .016
9 445290 12244 424 24.5% <0.01 new_order 5872546 105 .219
payment 4050110 44.1 .219
order_status 405013 5.00 .203
delivery 405010 71.9 .437
stock_level 405012 8.59 .218
cust_report 2227688 41.9 .328
10 440701 12246 3754 33.9% <0.01 new_order 5836243 116 .234
payment 4024934 50.0 .219
order_status 402494 5.74 .203
delivery 402494 78.9 .219
stock_level 402495 9.88 .219
cust_report 2213625 45.2 .328
11 447677 12246 7463 41.7% <0.01 new_order 5902970 125 .421
payment 4071817 58.0 .281
order_status 407184 5.39 .219
delivery 407183 86.6 .250
stock_level 407182 10.1 .234
cust_report 2240676 53.6 .343
12 445982 12247 918 43.1% <0.01 new_order 5880327 140 .422
payment 4056413 58.2 .421
order_status 405643 7.94 .421
delivery 405639 93.5 .421
stock_level 405641 12.1 .421
cust_report 2232494 57.0 .452
13 444468 12244 4227 41.5% <0.01 new_order 5865549 149 .468
payment 4044661 66.6 .421
order_status 404465 8.30 .531
delivery 404465 104 .609
stock_level 404468 10.9 .374
cust_report 2223779 60.9 .422
14 443939 12240 8115 53.3% <0.01 new_order 5855653 159 .811
payment 4037693 72.6 .624
order_status 403769 9.34 .421
delivery 403768 111 .624
stock_level 403769 11.1 .375
cust_report 2219727 66.1 .842
15 438413 12236 1520 52.9% <0.01 new_order 5819508 178 .765
payment 4014397 72.0 .499
order_status 401441 8.63 .296
delivery 401440 115 .765
stock_level 401440 16.3 .422
cust_report 2209301 68.9 .765
16 425440 12243 4246 33.2% .087 new_order 44904326 1439 .874
payment 30968018 616 .889
order_status 3096799 76.2 .608
delivery 3096797 972 .796
stock_level 3096802 113 .827
cust_report 17031704 562 .936
17 430302 12236 1281 34.0% <0.01 new_order 45379644 1569 .920
payment 31297561 667 1.53
order_status 3129754 83.3 .624
delivery 3129754 1050 .874
stock_level 3129754 116 .702
cust_report 17215480 612 .858
18 422679 12232 11188 29.9% <0.01 new_order 44578867 1640 1.06
payment 30743126 675 .827
order_status 3074311 86.7 .733
delivery 3074309 1108 1.01
stock_level 3074313 127 1.05
cust_report 16907376 626 .951
19 424161 12228 3744 41.6% <0.01 new_order 44737931 1706 1.17
payment 30850916 730 1.14
order_status 3085092 92.1 1.20
delivery 3085090 1163 1.23
stock_level 3085091 134 1.03
cust_report 16963910 675 1.17
20 418260 12208 10941 24.1% <0.01 new_order 44109374 1777 1.61
payment 30419807 794 1.55
order_status 3041980 99.2 .889
delivery 3041979 1197 1.64
stock_level 3041978 136 1.16
cust_report 16730242 728 1.70
21 422177 12206 3402 42.0% <0.01 new_order 44522035 1911 1.39
payment 30704513 801 1.33
order_status 3070450 108 1.01
delivery 3070448 1254 1.25
stock_level 3070449 143 1.22
cust_report 16886999 748 1.23
22 435199 12204 3478 39.8% .581 new_order 46161400 2065 1.40
payment 31834830 895 1.25
order_status 3183483 106 1.03
delivery 3183482 1388 1.45
stock_level 3183482 158 1.09
cust_report 17508267 786 1.17
23 423271 12201 8175 22.8% .100 new_order 44682434 2052 1.54
payment 30814097 891 1.40
order_status 3081409 118 1.25
delivery 3081406 1396 1.37
stock_level 3081404 147 1.05
cust_report 16945766 834 1.26
24 433274 12199 3677 32.8% <0.01 new_order 45691705 2189 1.67
payment 31511604 991 1.62
order_status 3151161 127 1.22
delivery 3151158 1495 1.83
stock_level 3151160 163 .952
cust_report 17331502 868 1.62
25 431166 12196 6826 36.8% <0.01 new_order 45471386 2296 1.65
payment 31358312 1017 1.75
order_status 3135830 129 1.23
delivery 3135829 1541 3.59
stock_level 3135833 185 1.25
cust_report 17245250 910 1.47
26 422721 12193 3478 30.1% .087 new_order 44617787 2314 1.83
payment 30770132 1011 1.83
order_status 3077012 131 1.23
delivery 3077007 1581 1.84
stock_level 3077015 174 1.31
cust_report 16922480 943 1.67
27 418870 12191 3845 36.0% <0.01 new_order 44177483 2418 1.90
payment 30466061 1007 1.62
order_status 3046605 117 1.40
delivery 3046605 1654 2.00
stock_level 3046604 183 1.48
cust_report 16754655 960 1.51
28 418243 12189 4769 33.0% <0.01 new_order 44110756 2465 1.79
payment 30420436 1105 1.69
order_status 3042046 124 1.31
delivery 3042038 1718 1.79
stock_level 3042047 189 1.76
cust_report 16730128 986 1.72
29 422538 12186 10873 29.8% .074 new_order 44592948 2610 1.86
payment 30752803 1143 2.28
order_status 3075278 151 1.20
delivery 3075275 1728 1.92
stock_level 3075282 197 1.69
cust_report 16912648 1051 1.84
30 429484 12184 1097 42.1% <0.01 new_order 45292458 2716 3.51
payment 31236107 1232 2.14
order_status 3123608 144 1.56
delivery 3123607 1908 2.87
stock_level 3123614 198 1.73
cust_report 17179739 1100 3.50
31 427816 12181 1284 36.9% <0.01 new_order 45118225 2825 2.18
payment 31114710 1225 2.18
order_status 3111469 141 1.69
delivery 3111465 1961 2.17
stock_level 3111468 232 2.12
cust_report 17111177 1099 1.90
32 418351 12179 2218 29.5% .087 new_order 44154782 2851 2.01
payment 30452007 1258 2.20
order_status 3045201 166 1.75
delivery 3045199 1913 2.75
stock_level 3045200 229 2.04
cust_report 16749219 1108 2.03

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 13-Jun-2012
