SPECjbb2005 SPECjbb2005 bops = 1373738, SPECjbb2005 bops/JVM = 686869
Dell Inc. Dell PowerEdge M520 (Intel E5-2470, 2.3GHz)
Oracle Oracle Java HotSpot(TM) 64-Bit Server VM (build 1.6.0_30-b12, mixed mode)

JVM run JVM Scores
1689464
2684274
SPECjbb2005 bops = 1373738, SPECjbb2005 bops/JVM = 686869

Hardware
Hardware Vendor Dell Inc.
Vendor URL http://www.dell.com
Model Dell PowerEdge M520 (Intel E5-2470, 2.3GHz)
Processor Intel Xeon E5-2470 (Intel Turbo Boost Technology up to 3.1 GHz)
MHz 2300
# of Chips 2
# of Cores 16
# of Cores/Chip 8
HW Threading Enabled? Yes
Procs Avail to Java 32
Memory (MB) 98304
Memory Details 12 x 8GB 2Rx4 PC3-12800R-11, ECC, Slots A1-6, B1-6 populated
Primary cache 32 KB I + 32 KB D
Secondary cache 256 KB I+D on chip per core
Other cache 20 MB I+D on chip per chip
Filesystem NTFS
Disks 1 x 500 GB SAS(classes + OS)
Other hardware 1.0.0 BIOS
Software
Software Vendor Oracle
Vendor URL http://www.oracle.com
JVM Version Oracle Java HotSpot(TM) 64-Bit Server VM (build 1.6.0_30-b12, mixed mode)
JVM Command Line -server -Xmx29g -Xms29g -Xmn24g -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=16 -XX:-UseAdaptiveSizePolicy -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:+AggressiveOpts
JVM Initial Heap Memory (MB) 29696
JVM Maximum Heap Memory (MB) 29696
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH c:\specjbb2005\jvm\jre6-30\lib\alt-string.jar;
c:\specjbb2005\jvm\jre6-30\lib\alt-rt.jar;
c:\specjbb2005\jvm\jre6-30\lib\resources.jar;
c:\specjbb2005\jvm\jre6-30\lib\rt.jar;
c:\specjbb2005\jvm\jre6-30\lib\sunrsasign.jar;
c:\specjbb2005\jvm\jre6-30\lib\jsse.jar;
c:\specjbb2005\jvm\jre6-30\lib\jce.jar;
c:\specjbb2005\jvm\jre6-30\lib\charsets.jar;
c:\specjbb2005\jvm\jre6-30\lib\modules\jdk.boot.jar;
c:\specjbb2005\jvm\jre6-30\classes
OS Version Windows 2008 Enterprise x64 Edition R2 SP1
Other software None
Test Information
Tested by Dell Inc.
SPEC license # 55
Test location Round Rock, TX
Test date Apr 29, 2012
H/w available May-2012
JVM available Dec-2011
OS available Feb-2011
Other s/w available NA
AOT Compilation
None
Tuning
  • Operating System Tunings
    • Lock pages in memory enabled
  • BIOS Tunings
    • Adjacent Cache Line Prefetch disabled in BIOS
    • Hardware Pretcher disabled in BIOS
    • DCU Streamer Prefetcher disabled in BIOS
    • Performance Optimized System Profile set in BIOS
  • Benchmark Tunings
    • Parameter expected_peak_warehouse was set to 16
  • JVM Tunings
    • Affinity Masks set to 0xFFFF and 0xFFFF0000
    Notes
    "Notes here"

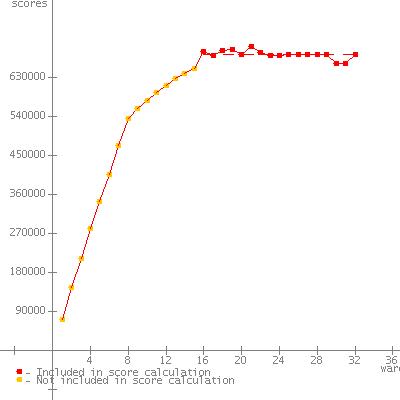

    JVM 1 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 71527
    2 144427
    3 212563
    4 280807
    5 344895
    6 406625
    7 476658
    8 543591
    9 561870
    10 579209
    11 597482
    12 613509
    13 630228
    14 642229
    15 652182
    16 691036 *
    17 684783 *
    18 690199 *
    19 697561 *
    20 692570 *
    21 705192 *
    22 693113 *
    23 704229 *
    24 679223 *
    25 672832 *
    26 680241 *
    27 684429 *
    28 674126 *
    29 704758 *
    30 678318 *
    31 684850 *
    32 703424 *
    SPECjbb2005 (from 16 to 32) 689464 SPECjbb2005 bops
    SPEC license # 55 Tested by: Dell Inc. Test date: Apr 29, 2012


    JVM 2 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 71425
    2 145042
    3 213711
    4 280998
    5 343408
    6 407959
    7 473550
    8 537317
    9 560458
    10 577961
    11 596879
    12 612228
    13 628342
    14 639746
    15 652208
    16 690977 *
    17 682842 *
    18 693030 *
    19 696168 *
    20 684838 *
    21 703383 *
    22 689656 *
    23 681602 *
    24 682110 *
    25 684123 *
    26 683416 *
    27 683345 *
    28 683123 *
    29 683613 *
    30 664117 *
    31 662969 *
    32 683355 *
    SPECjbb2005 (from 16 to 32) 684274 SPECjbb2005 bops
    SPEC license # 55 Tested by: Dell Inc. Test date: Apr 29, 2012

    SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
    Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

    First published at SPEC.org on 30-May-2012
