SPECjbb2005 SPECjbb2005 bops = 1542328, SPECjbb2005 bops/JVM = 771164
Dell Inc. PowerEdge R620 (Intel Xeon E5-2690, 2.90GHz)
Oracle Oracle Java HotSpot(TM) 64-Bit Server VM (build 1.6.0_30-b12, mixed mode)

JVM run JVM Scores
1770011
2772317
SPECjbb2005 bops = 1542328, SPECjbb2005 bops/JVM = 771164

Hardware
Hardware Vendor Dell Inc.
Vendor URL http://www.dell.com
Model PowerEdge R620 (Intel Xeon E5-2690, 2.90GHz)
Processor Intel Xeon E5-2690 (Intel Turbo Boost Technology up to 3.8 GHz)
MHz 2900
# of Chips 2
# of Cores 16
# of Cores/Chip 8
HW Threading Enabled? Yes
Procs Avail to Java 32
Memory (MB) 131072
Memory Details 16 x 8GB 2Rx4 PC3-12800R-11, ECC, Slots A1-8, B1-8 populated
Primary cache 32 KB I + 32 KB D
Secondary cache 256 KB I+D on chip per core
Other cache 20 MB I+D on chip per chip
Filesystem NTFS
Disks 1 x 100 GB SATA SSD
Other hardware N/A
Software
Software Vendor Oracle
Vendor URL http://www.oracle.com
JVM Version Oracle Java HotSpot(TM) 64-Bit Server VM (build 1.6.0_30-b12, mixed mode)
JVM Command Line -server -Xmx29g -Xms29g -Xmn24g -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=16 -XX:-UseAdaptiveSizePolicy -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:+AggressiveOpts
JVM Initial Heap Memory (MB) 29696
JVM Maximum Heap Memory (MB) 29696
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH c:\specjbb2005\jvm\HotSpot_1p6_b30\lib\alt-string.jar;
c:\specjbb2005\jvm\HotSpot_1p6_b30\lib\alt-rt.jar;
c:\specjbb2005\jvm\HotSpot_1p6_b30\lib\resources.jar;
c:\specjbb2005\jvm\HotSpot_1p6_b30\lib\rt.jar;
c:\specjbb2005\jvm\HotSpot_1p6_b30\lib\sunrsasign.jar;
c:\specjbb2005\jvm\HotSpot_1p6_b30\lib\jsse.jar;
c:\specjbb2005\jvm\HotSpot_1p6_b30\lib\jce.jar;
c:\specjbb2005\jvm\HotSpot_1p6_b30\lib\charsets.jar;
c:\specjbb2005\jvm\HotSpot_1p6_b30\lib\modules\jdk.boot.jar;
c:\specjbb2005\jvm\HotSpot_1p6_b30\classes
OS Version Windows 2008 Enterprise x64 Edition R2 SP1
Other software None
Test Information
Tested by Dell Inc.
SPEC license # 55
Test location Round Rock, TX
Test date Feb 16, 2012
H/w available Mar-2012
JVM available Dec-2011
OS available Feb-2011
Other s/w available NA
AOT Compilation
None
Tuning
  • Operating System Tunings
    • Lock pages in memory enabled
  • BIOS Tunings
    • Adjacent Cache Line Prefetch disabled in BIOS
    • Hardware Pretcher disabled in BIOS
    • DCU Streamer Prefetcher disabled in BIOS
    • Performance Optimized System Profile set in BIOS
  • Benchmark Tunings
    • Parameter expected_peak_warehouse was set to 16
  • JVM Tunings
    • Affinity Masks set to 0xFFFF and 0xFFFF0000
    Notes
    "Notes here"

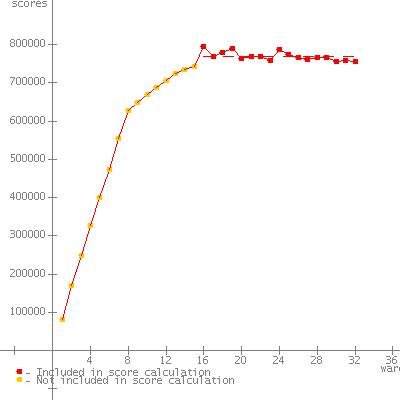

    JVM 1 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 82663
    2 170355
    3 249408
    4 326354
    5 401154
    6 474042
    7 554969
    8 628009
    9 648483
    10 669150
    11 689096
    12 707094
    13 723456
    14 734023
    15 743117
    16 796237 *
    17 768664 *
    18 779364 *
    19 789589 *
    20 763082 *
    21 769286 *
    22 768211 *
    23 759794 *
    24 787696 *
    25 773253 *
    26 766266 *
    27 761052 *
    28 767223 *
    29 767555 *
    30 757180 *
    31 759778 *
    32 755961 *
    SPECjbb2005 (from 16 to 32) 770011 SPECjbb2005 bops
    SPEC license # 55 Tested by: Dell Inc. Test date: Feb 16, 2012


    JVM 2 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 83317
    2 171582
    3 251960
    4 328259
    5 405125
    6 477643
    7 561362
    8 636682
    9 659180
    10 676974
    11 697301
    12 715173
    13 728555
    14 739652
    15 750875
    16 766226 *
    17 773616 *
    18 773006 *
    19 775077 *
    20 770895 *
    21 771868 *
    22 771412 *
    23 766286 *
    24 773880 *
    25 773604 *
    26 770996 *
    27 772120 *
    28 777184 *
    29 770289 *
    30 776927 *
    31 771285 *
    32 774710 *
    SPECjbb2005 (from 16 to 32) 772317 SPECjbb2005 bops
    SPEC license # 55 Tested by: Dell Inc. Test date: Feb 16, 2012

    SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
    Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

    First published at SPEC.org on 21-Mar-2012
