SPECjbb

SPECjbb2005		SPECjbb2005 bops = 5307339, SPECjbb2005 bops/JVM = 663417
Hewlett-Packard Company HP Proliant DL980 G7
Oracle Corporation Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_25

JVM run JVM Scores

1 647235

2 677859

3 675851

4 663053

5 641802

6 677900

7 648098

8 675541

SPECjbb2005 bops = 5307339, SPECjbb2005 bops/JVM = 663417

Hardware

Hardware Vendor Hewlett-Packard Company

Vendor URL http://www.hp.com

Model HP Proliant DL980 G7

Processor Intel Xeon E7-4870 2.4 GHz (Intel Turbo Boost Technology up to 2.80 GHz)

MHz 2400

# of Chips 8

# of Cores 80

# of Cores/Chip 10

HW Threading Enabled? Yes

Procs Avail to Java 160

Memory (MB) 1048576

Memory Details 128 x 8GB PC3-10600R dual-rank DIMMs

Primary cache 32 KB I + 32 KB D on chip per core.

Secondary cache 256 KB I+D on chip per core

Other cache 30MB L3 per chip

Filesystem NTFS

Disks 146GB SAS 6G DP 15K

Other hardware none

Software

Software Vendor Oracle Corporation

Vendor URL http://www.oracle.com

JVM Version Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_25

JVM Command Line start /B /AFFINITY %MASK% /HIGH java -Xmx25g -Xms25g -Xmn23g -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=20 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:-UseAdaptiveSizePolicy

JVM Initial Heap Memory (MB) 25000

JVM Maximum Heap Memory (MB) 25000

JVM Address bits 64

JVM CLASSPATH jbb.jar;
check.jar

JVM BOOTCLASSPATH C:\jre6\lib\alt-rt.jar;
C:\jre6\lib\alt-string.jar;
C:\jre6\lib\alt-string.jar;
C:\jre6\lib\alt-rt.jar;
C:\jre6\lib\resources.jar;
C:\jre6\lib\rt.jar;
C:\jre6\lib\sunrsasign.jar;
C:\jre6\lib\jsse.jar;
C:\jre6\lib\jce.jar;
C:\jre6\lib\charsets.jar;
C:\jre6\lib\modules\jdk.boot.jar;
C:\jre6\classes

OS Version Microsoft Windows Server 2008 Enterprise with SP1 (64-bit)

Other software none

Test Information

Tested by Hewlett-Packard Company

SPEC license # 3

Test location Cupertino, CA

Test date May 20, 2011

H/w available June-2011

JVM available Apr-2011

OS available Jan-2009

Other s/w available

AOT Compilation

Tuning

"Lock pages in memory" enabled for benchmark user.
Power Option Set to High Performance
Used start /AFFINITY to bind each of the 8 JVM instances to one physical CPU node

Notes

Set input.expected_peak_warehouse to 20, this is due to the fact that Runtime.getRuntime.availableProcessors() doesn't return the total number of processors in the system but instead returns the number of processors in the group which command prompt belongs to on Windows 2008 R2.
Command line options are described at: http://www.oracle.com/technetwork/java/javase/tech/vmoptions-jsp-140102.html

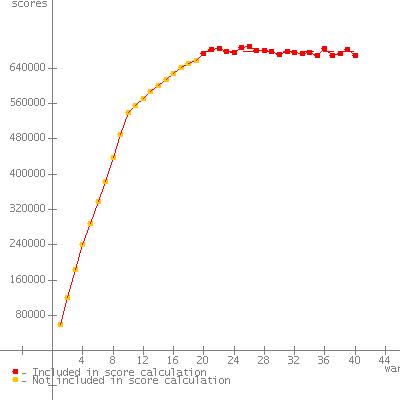

JVM 1 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	58248
2	118199
3	178061
4	233281
5	277388
6	327458
7	366454
8	421072
9	470654
10	519551
11	536458
12	551451
13	569279
14	583075
15	593077
16	604411
17	612973
18	622776
19	628858
20	651966	*
21	654488	*
22	666019	*
23	655802	*
24	656371	*
25	645741	*
26	643973	*
27	642673	*
28	647788	*
29	637276	*
30	641856	*
31	651997	*
32	640317	*
33	641778	*
34	650657	*
35	637851	*
36	646003	*
37	646978	*
38	642362	*
39	643425	*
40	646617	*
SPECjbb2005	(from 20 to 40)	647235 SPECjbb2005 bops

SPEC license # 3

Tested by: Hewlett-Packard Company

Test date: May 20, 2011

JVM 2 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	59647
2	119199
3	184359
4	242011
5	292148
6	341282
7	385221
8	440433
9	490057
10	541245
11	556395
12	571780
13	587140
14	600814
15	616761
16	629784
17	641593
18	651549
19	659236
20	676700	*
21	677597	*
22	680205	*
23	675150	*
24	674197	*
25	679619	*
26	684121	*
27	670245	*
28	672642	*
29	678775	*
30	687563	*
31	687097	*
32	669061	*
33	669306	*
34	682563	*
35	668155	*
36	678151	*
37	678575	*
38	689885	*
39	682115	*
40	673312	*
SPECjbb2005	(from 20 to 40)	677859 SPECjbb2005 bops

SPEC license # 3

Tested by: Hewlett-Packard Company

Test date: May 20, 2011

JVM 3 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	59746
2	122224
3	184563
4	241462
5	289959
6	340110
7	381672
8	436100
9	487692
10	539291
11	555191
12	572052
13	587994
14	601854
15	615826
16	628308
17	641594
18	652826
19	657969
20	674188	*
21	679893	*
22	679483	*
23	672666	*
24	674837	*
25	676822	*
26	681979	*
27	672806	*
28	673717	*
29	682511	*
30	672608	*
31	665652	*
32	682706	*
33	670264	*
34	681453	*
35	677249	*
36	683270	*
37	678315	*
38	667636	*
39	674754	*
40	670060	*
SPECjbb2005	(from 20 to 40)	675851 SPECjbb2005 bops

SPEC license # 3

Tested by: Hewlett-Packard Company

Test date: May 20, 2011

JVM 4 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	57406
2	119784
3	182938
4	237558
5	285829
6	337333
7	380234
8	433796
9	486034
10	536627
11	553147
12	567573
13	582655
14	597223
15	609533
16	621245
17	629482
18	638807
19	645231
20	663338	*
21	666826	*
22	667746	*
23	669985	*
24	657341	*
25	671618	*
26	658806	*
27	667979	*
28	660808	*
29	662830	*
30	655820	*
31	660247	*
32	663401	*
33	659276	*
34	666729	*
35	665830	*
36	658339	*
37	665343	*
38	660722	*
39	658118	*
40	663015	*
SPECjbb2005	(from 20 to 40)	663053 SPECjbb2005 bops

SPEC license # 3

Tested by: Hewlett-Packard Company

Test date: May 20, 2011

JVM 5 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	58334
2	118182
3	180236
4	234411
5	279581
6	329706
7	370755
8	422899
9	472655
10	521494
11	537057
12	551238
13	565818
14	579202
15	589011
16	599344
17	608591
18	618155
19	625182
20	641182	*
21	649563	*
22	644936	*
23	638654	*
24	647864	*
25	638580	*
26	657003	*
27	642041	*
28	637830	*
29	639621	*
30	641517	*
31	637688	*
32	649291	*
33	639729	*
34	641913	*
35	634047	*
36	634329	*
37	646549	*
38	639424	*
39	637720	*
40	638362	*
SPECjbb2005	(from 20 to 40)	641802 SPECjbb2005 bops

SPEC license # 3

Tested by: Hewlett-Packard Company

Test date: May 20, 2011

JVM 6 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	59387
2	121456
3	183867
4	241056
5	287632
6	338403
7	383459
8	438954
9	490589
10	540247
11	554855
12	571685
13	587506
14	601547
15	614564
16	629095
17	642086
18	650972
19	657720
20	674909	*
21	682982	*
22	684770	*
23	678474	*
24	675009	*
25	687959	*
26	690439	*
27	679946	*
28	679805	*
29	678765	*
30	672024	*
31	677324	*
32	676512	*
33	672950	*
34	675868	*
35	669421	*
36	684343	*
37	668813	*
38	673531	*
39	683730	*
40	668317	*
SPECjbb2005	(from 20 to 40)	677900 SPECjbb2005 bops

SPEC license # 3

Tested by: Hewlett-Packard Company

Test date: May 20, 2011

JVM 7 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	57276
2	119356
3	181784
4	234561
5	281050
6	331303
7	372943
8	426176
9	477409
10	526920
11	542525
12	557330
13	571615
14	585951
15	597311
16	607285
17	617385
18	626710
19	632322
20	647591	*
21	656008	*
22	659554	*
23	659563	*
24	642829	*
25	645812	*
26	656747	*
27	651834	*
28	643860	*
29	647495	*
30	646681	*
31	640902	*
32	651959	*
33	655366	*
34	642635	*
35	642999	*
36	648124	*
37	642653	*
38	640964	*
39	641382	*
40	645096	*
SPECjbb2005	(from 20 to 40)	648098 SPECjbb2005 bops

SPEC license # 3

Tested by: Hewlett-Packard Company

Test date: May 20, 2011

JVM 8 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	59702
2	122296
3	186146
4	242788
5	290041
6	342179
7	384680
8	440386
9	494387
10	545976
11	562826
12	579270
13	593621
14	608265
15	620435
16	630573
17	642030
18	650896
19	656629
20	670987	*
21	679409	*
22	681472	*
23	673991	*
24	684726	*
25	674726	*
26	681776	*
27	675448	*
28	672543	*
29	679526	*
30	669268	*
31	665704	*
32	680009	*
33	670624	*
34	669133	*
35	677330	*
36	680915	*
37	673554	*
38	669169	*
39	679606	*
40	676438	*
SPECjbb2005	(from 20 to 40)	675541 SPECjbb2005 bops

SPEC license # 3

Tested by: Hewlett-Packard Company

Test date: May 20, 2011
