SPECjbb2005 SPECjbb2005 bops = 4966457, SPECjbb2005 bops/JVM = 620807
Fujitsu PRIMERGY RX900 S2, Intel Xeon E7-8870, 2.40 GHz
Oracle Corporation Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_25

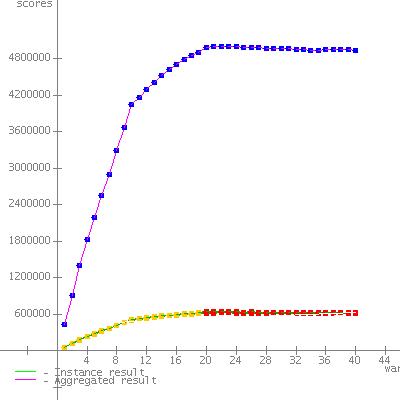

JVM run JVM Scores
1621317
2615585
3614756
4623483
5620811
6616640
7621481
8632384
SPECjbb2005 bops = 4966457, SPECjbb2005 bops/JVM = 620807

Hardware
Hardware Vendor Fujitsu
Vendor URL http://www.fujitsu.com
Model PRIMERGY RX900 S2, Intel Xeon E7-8870, 2.40 GHz
Processor Intel Xeon E7-8870 (Intel Turbo Boost Technology up to 2.80 GHz)
MHz 2400
# of Chips 8
# of Cores 80
# of Cores/Chip 10
HW Threading Enabled? Yes
Procs Avail to Java 160
Memory (MB) 1048576
Memory Details 128 x 8GB DDR-1066 QR RDIMMs
Primary cache 32 KB I + 32 KB D on chip per core
Secondary cache 256 KB I+D on chip per core
Other cache 30 MB I+D L3 on chip per chip
Filesystem NTFS
Disks 1x 147GB 15000 RPM SAS
Other hardware N/A
Software
Software Vendor Oracle Corporation
Vendor URL http://www.oracle.com
JVM Version Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_25
JVM Command Line start /HIGH /NODE 0-7 /AFFINITY [0xFFFFF] /B java -Xmx25g -Xms25g -Xmn23g -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=20 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:-UseAdaptiveSizePolicy
JVM Initial Heap Memory (MB) 25600
JVM Maximum Heap Memory (MB) 25600
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\Program Files\Java\jre6\lib\alt-string.jar;
C:\Program Files\Java\jre6\lib\alt-rt.jar;
C:\Program Files\Java\jre6\lib\resources.jar;
C:\Program Files\Java\jre6\lib\rt.jar;
C:\Program Files\Java\jre6\lib\sunrsasign.jar;
C:\Program Files\Java\jre6\lib\jsse.jar;
C:\Program Files\Java\jre6\lib\jce.jar;
C:\Program Files\Java\jre6\lib\charsets.jar;
C:\Program Files\Java\jre6\lib\modules\jdk.boot.jar;
C:\Program Files\Java\jre6\classes
OS Version Microsoft Windows Server 2008 Datacenter x64 Edition R2 SP1
Other software N/A
Test Information
Tested by Fujitsu
SPEC license # 19
Test location Kawasaki, Japan
Test date Apr 13, 2011
H/w available Jun-2011
JVM available Apr-2011
OS available Feb-2011
Other s/w available N/A
AOT Compilation
N/A
Tuning
  • Turned off "Hardware Prefetch" in BIOS
  • Turned off "Adjacent Sector Prefetch" in BIOS.
  • Each JVM instance was affinitized to a socket.
  • Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
  • Notes
    input.expected_peak_warehouse is set to 20, because Runtime.getRuntime.availableProcessors() doesn't return number of processors in the system but returns number of processors in the group which the process belongs to on Windows 2008 R2.
    Command line options are described at:http://www.oracle.com/technetwork/java/javase/tech/vmoptions-jsp-140102.html


    JVM 1 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 54711
    2 112319
    3 175340
    4 226017
    5 272157
    6 314885
    7 358729
    8 410073
    9 455514
    10 503008
    11 516491
    12 531589
    13 547292
    14 559457
    15 575129
    16 586255
    17 598274
    18 606323
    19 613732
    20 624784 *
    21 623987 *
    22 625507 *
    23 624105 *
    24 623899 *
    25 621551 *
    26 622444 *
    27 622906 *
    28 621999 *
    29 620358 *
    30 621291 *
    31 620550 *
    32 620382 *
    33 620811 *
    34 617619 *
    35 618992 *
    36 619728 *
    37 619372 *
    38 618222 *
    39 621700 *
    40 617453 *
    SPECjbb2005 (from 20 to 40) 621317 SPECjbb2005 bops
    SPEC license # 19 Tested by: Fujitsu Test date: Apr 13, 2011


    JVM 2 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 54428
    2 111382
    3 172423
    4 226392
    5 270318
    6 317501
    7 356931
    8 408015
    9 456033
    10 501008
    11 517123
    12 533704
    13 547683
    14 562186
    15 575906
    16 585416
    17 592536
    18 600770
    19 609386
    20 617860 *
    21 619601 *
    22 619771 *
    23 620041 *
    24 617422 *
    25 619076 *
    26 617567 *
    27 617493 *
    28 616808 *
    29 615508 *
    30 615951 *
    31 613521 *
    32 615244 *
    33 612172 *
    34 612773 *
    35 611986 *
    36 614318 *
    37 613042 *
    38 612083 *
    39 612251 *
    40 612803 *
    SPECjbb2005 (from 20 to 40) 615585 SPECjbb2005 bops
    SPEC license # 19 Tested by: Fujitsu Test date: Apr 13, 2011


    JVM 3 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 54510
    2 114878
    3 175667
    4 229014
    5 273411
    6 319782
    7 359694
    8 411832
    9 458127
    10 505256
    11 519234
    12 535920
    13 549279
    14 563644
    15 575474
    16 585323
    17 594859
    18 604165
    19 608818
    20 618128 *
    21 618148 *
    22 619544 *
    23 618441 *
    24 618791 *
    25 616206 *
    26 617441 *
    27 616417 *
    28 616394 *
    29 614040 *
    30 614605 *
    31 614165 *
    32 612371 *
    33 612830 *
    34 611928 *
    35 609377 *
    36 611217 *
    37 612725 *
    38 612646 *
    39 613064 *
    40 611396 *
    SPECjbb2005 (from 20 to 40) 614756 SPECjbb2005 bops
    SPEC license # 19 Tested by: Fujitsu Test date: Apr 13, 2011


    JVM 4 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 54462
    2 114301
    3 176184
    4 228684
    5 275559
    6 320345
    7 363646
    8 416270
    9 462637
    10 509347
    11 523686
    12 539945
    13 554854
    14 568099
    15 579267
    16 593102
    17 601389
    18 611311
    19 616318
    20 627437 *
    21 628350 *
    22 629168 *
    23 624797 *
    24 626833 *
    25 624650 *
    26 625917 *
    27 624878 *
    28 625128 *
    29 623431 *
    30 623501 *
    31 622807 *
    32 621510 *
    33 622559 *
    34 621363 *
    35 621564 *
    36 621558 *
    37 618157 *
    38 618768 *
    39 620805 *
    40 619955 *
    SPECjbb2005 (from 20 to 40) 623483 SPECjbb2005 bops
    SPEC license # 19 Tested by: Fujitsu Test date: Apr 13, 2011


    JVM 5 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 54891
    2 114915
    3 176365
    4 227995
    5 273534
    6 319801
    7 361307
    8 411831
    9 458385
    10 504985
    11 520574
    12 534591
    13 550461
    14 564257
    15 575445
    16 586927
    17 600103
    18 608003
    19 611867
    20 619797 *
    21 624741 *
    22 623151 *
    23 623935 *
    24 623548 *
    25 620937 *
    26 622217 *
    27 621895 *
    28 621461 *
    29 621035 *
    30 621133 *
    31 620520 *
    32 620595 *
    33 621540 *
    34 619167 *
    35 618259 *
    36 619566 *
    37 619145 *
    38 618809 *
    39 618458 *
    40 617115 *
    SPECjbb2005 (from 20 to 40) 620811 SPECjbb2005 bops
    SPEC license # 19 Tested by: Fujitsu Test date: Apr 13, 2011


    JVM 6 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 54270
    2 111622
    3 174647
    4 226824
    5 270457
    6 319182
    7 361429
    8 409688
    9 456418
    10 502981
    11 517851
    12 534585
    13 548156
    14 564684
    15 576884
    16 583658
    17 594274
    18 603541
    19 610032
    20 619985 *
    21 620563 *
    22 621614 *
    23 619378 *
    24 619950 *
    25 617562 *
    26 619021 *
    27 618651 *
    28 618086 *
    29 615036 *
    30 616636 *
    31 615713 *
    32 614076 *
    33 615060 *
    34 613816 *
    35 614126 *
    36 615028 *
    37 614713 *
    38 613836 *
    39 614296 *
    40 612286 *
    SPECjbb2005 (from 20 to 40) 616640 SPECjbb2005 bops
    SPEC license # 19 Tested by: Fujitsu Test date: Apr 13, 2011


    JVM 7 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 54392
    2 112651
    3 175434
    4 227507
    5 274767
    6 320301
    7 363905
    8 414624
    9 461784
    10 507559
    11 524614
    12 539334
    13 553710
    14 567242
    15 578519
    16 589865
    17 596565
    18 605144
    19 612844
    20 622506 *
    21 625581 *
    22 625917 *
    23 624860 *
    24 625553 *
    25 623353 *
    26 624678 *
    27 623194 *
    28 623478 *
    29 621001 *
    30 621474 *
    31 620009 *
    32 619549 *
    33 620858 *
    34 616359 *
    35 617684 *
    36 619920 *
    37 618429 *
    38 621403 *
    39 617882 *
    40 617411 *
    SPECjbb2005 (from 20 to 40) 621481 SPECjbb2005 bops
    SPEC license # 19 Tested by: Fujitsu Test date: Apr 13, 2011


    JVM 8 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 54713
    2 115391
    3 177262
    4 230386
    5 276609
    6 325568
    7 365079
    8 415241
    9 464298
    10 509036
    11 523557
    12 541833
    13 554792
    14 569110
    15 582972
    16 592129
    17 605429
    18 615332
    19 620992
    20 635284 *
    21 635769 *
    22 638894 *
    23 636200 *
    24 636131 *
    25 633511 *
    26 635626 *
    27 634708 *
    28 631554 *
    29 632275 *
    30 632456 *
    31 631795 *
    32 630941 *
    33 631796 *
    34 628908 *
    35 629520 *
    36 629198 *
    37 630250 *
    38 630358 *
    39 628949 *
    40 625950 *
    SPECjbb2005 (from 20 to 40) 632384 SPECjbb2005 bops
    SPEC license # 19 Tested by: Fujitsu Test date: Apr 13, 2011

    SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
    Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

    First published at SPEC.org on 04-May-2011
