SPECjbb2005 SPECjbb2005 bops = 1301194, SPECjbb2005 bops/JVM = 130119
IBM Corporation IBM BladeCenter HX5
IBM Corporation IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090326_01(SR5) (JIT enabled, AOT enabled)

JVM run JVM Scores
1131159
2131651
3131147
4129268
5129852
6129350
7129959
8130116
9129591
10129101
SPECjbb2005 bops = 1301194, SPECjbb2005 bops/JVM = 130119

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM BladeCenter HX5
Processor Intel Xeon E7-2870
MHz 2400
# of Chips 2
# of Cores 20
# of Cores/Chip 10
HW Threading Enabled? Yes
Procs Avail to Java 40
Memory (MB) 131072
Memory Details 16 x 8GB, 4Rx8 PC3L-8500R
Primary cache 32KBI+32KBD
Secondary cache 256KB(I+D) on chip per chip
Other cache 30 MB per processor
Filesystem NTFS
Disks 1 x 50GB SATA SSD
Other hardware IBM BladeCenter H
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090326_01(SR5) (JIT enabled, AOT enabled)
JVM Command Line start /AFFINITY %HEX% java -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1500m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\Program Files\IBM\Java60\jre\bin\compressedrefs\jclSC160\vm.jar;
C:\Program Files\IBM\Java60\jre\lib\annotation.jar;
C:\Program Files\IBM\Java60\jre\lib\beans.jar;
C:\Program Files\IBM\Java60\jre\lib\java.util.jar;
C:\Program Files\IBM\Java60\jre\lib\jndi.jar;
C:\Program Files\IBM\Java60\jre\lib\logging.jar;
C:\Program Files\IBM\Java60\jre\lib\security.jar;
C:\Program Files\IBM\Java60\jre\lib\sql.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmorb.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmorbapi.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmcfw.jar;
C:\Program Files\IBM\Java60\jre\lib\rt.jar;
C:\Program Files\IBM\Java60\jre\lib\charsets.jar;
C:\Program Files\IBM\Java60\jre\lib\resources.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmpkcs.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmcertpathfw.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmjgssfw.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmjssefw.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmsaslfw.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmjcefw.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmjgssprovider.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmjsseprovider2.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmcertpathprovider.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmxmlcrypto.jar;
C:\Program Files\IBM\Java60\jre\lib\management-agent.jar;
C:\Program Files\IBM\Java60\jre\lib\xml.jar;
C:\Program Files\IBM\Java60\jre\lib\jlm.jar;
C:\Program Files\IBM\Java60\jre\lib\javascript.jar
OS Version Microsoft Windows Server 2008 Enterprise x64 Edition R2
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location RTP, NC
Test date Mar 22, 2011
H/w available May-2011
JVM available Jun-2009
OS available Oct-2009
Other s/w available
AOT Compilation

precompiled code for

  • Deliverytransaction.process
  • TransactionManager.go
loaded at startup

Tuning
Operating system tunings
  • Affinity Masks set to 0xF, 0xF0, 0xF00, 0xF000, 0xF0000, 0xF00000, 0xF000000, 0xF0000000, 0xF00000000, 0xF000000000
  • Lock Pages in memory enabled under Local Security Policies
BIOS Settings
  • Operating Mode set to Custom Mode
  • Turbo Mode Enabled
  • Turbo Boost Power set to Traditional
  • Cache Data Prefetch Disabled
Notes

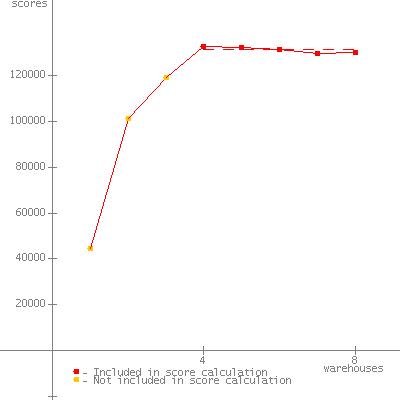

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 44475
2 101440
3 119090
4 132808 *
5 132128 *
6 131211 *
7 129714 *
8 129935 *
SPECjbb2005 (from 4 to 8) 131159 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 22, 2011

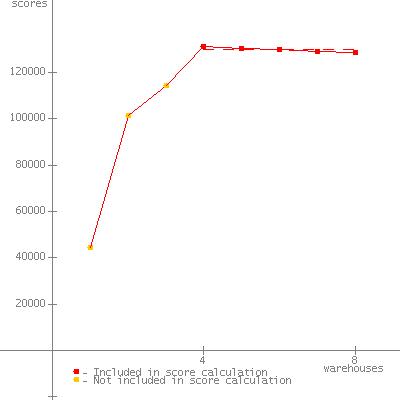

JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 44051
2 102148
3 114718
4 132570 *
5 132301 *
6 132048 *
7 131030 *
8 130308 *
SPECjbb2005 (from 4 to 8) 131651 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 22, 2011


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 47065
2 103145
3 117729
4 133116 *
5 131491 *
6 131316 *
7 130612 *
8 129202 *
SPECjbb2005 (from 4 to 8) 131147 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 22, 2011


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 45081
2 100291
3 114504
4 129886 *
5 130529 *
6 129458 *
7 128393 *
8 128073 *
SPECjbb2005 (from 4 to 8) 129268 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 22, 2011


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 44536
2 101589
3 114335
4 131366 *
5 130305 *
6 129781 *
7 129254 *
8 128557 *
SPECjbb2005 (from 4 to 8) 129852 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 22, 2011


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 44210
2 101947
3 118078
4 130364 *
5 130203 *
6 129388 *
7 128901 *
8 127894 *
SPECjbb2005 (from 4 to 8) 129350 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 22, 2011


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 44001
2 102194
3 114931
4 132170 *
5 130819 *
6 129957 *
7 129005 *
8 127842 *
SPECjbb2005 (from 4 to 8) 129959 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 22, 2011


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 46141
2 100266
3 114364
4 132221 *
5 130521 *
6 130108 *
7 129103 *
8 128630 *
SPECjbb2005 (from 4 to 8) 130116 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 22, 2011


JVM 9 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 44574
2 101139
3 115759
4 131095 *
5 129940 *
6 129250 *
7 129263 *
8 128409 *
SPECjbb2005 (from 4 to 8) 129591 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 22, 2011


JVM 10 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 43759
2 100604
3 116757
4 130857 *
5 130400 *
6 128688 *
7 128425 *
8 127135 *
SPECjbb2005 (from 4 to 8) 129101 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 22, 2011

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 20-Apr-2011
