SPECjbb2005 SPECjbb2005 bops = 950913, SPECjbb2005 bops/JVM = 158486
Cisco Systems Cisco UCS B200 M2 (Intel Xeon X5690, 3.46GHz)
IBM Corporation IBM Corporation IBM J9 JVM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled)

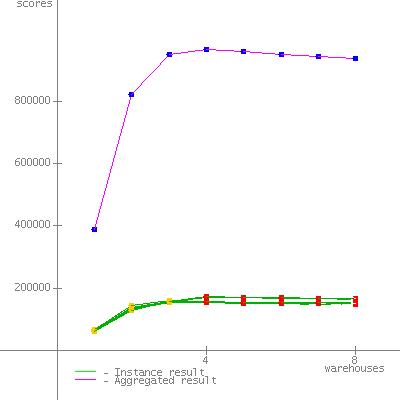

JVM run JVM Scores
1153205
2150472
3168519
4154736
5154458
6169523
SPECjbb2005 bops = 950913, SPECjbb2005 bops/JVM = 158486

Hardware
Hardware Vendor Cisco Systems
Vendor URL http://www.cisco.com
Model Cisco UCS B200 M2 (Intel Xeon X5690, 3.46GHz)
Processor Intel Xeon X5690 (Intel Turbo Boost Technology up to 3.73GHz)
MHz 3467
# of Chips 2
# of Cores 12
# of Cores/Chip 6
HW Threading Enabled? yes
Procs Avail to Java 24
Memory (MB) 49152
Memory Details 48GB(12 x 4GB 2Rx4 PC3-10600R, ECC, running 1333MHz)
Primary cache 32KB I+32KB D on chip per core
Secondary cache 256KB(I+D) on chip per core
Other cache 12MB (I+D) on chip per chip
Filesystem NTFS
Disks 1 x 100GB SATA SSD
Other hardware Cisco UCS 6120XP 20 Port Fabric Interconnect, Cisco UCS 5100 Series Blade Server Chassis, Cisco UCS 2104XP Fabric Extender
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM Corporation IBM J9 JVM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled)
JVM Command Line java /HIGH /AFFINITY [0x000007,0x0000F0,0x000700, 0x007000,0x0F0000,0x700000] -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp spec.jbb.JBBmain -propfile SPECjbb-UCS-B200-M2-X5690.props
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\Program Files\Java\jre\bin\compressedrefs\jclSC160\vm.jar;
C:\Program Files\Java\jre\lib\annotation.jar;
C:\Program Files\Java\jre\lib\beans.jar;
C:\Program Files\Java\jre\lib\java.util.jar;
C:\Program Files\Java\jre\lib\jndi.jar;
C:\Program Files\Java\jre\lib\logging.jar;
C:\Program Files\Java\jre\lib\security.jar;
C:\Program Files\Java\jre\lib\sql.jar;
C:\Program Files\Java\jre\lib\ibmorb.jar;
C:\Program Files\Java\jre\lib\ibmorbapi.jar;
C:\Program Files\Java\jre\lib\ibmcfw.jar;
C:\Program Files\Java\jre\lib\rt.jar;
C:\Program Files\Java\jre\lib\charsets.jar;
C:\Program Files\Java\jre\lib\resources.jar;
C:\Program Files\Java\jre\lib\ibmpkcs.jar;
C:\Program Files\Java\jre\lib\ibmcertpathfw.jar;
C:\Program Files\Java\jre\lib\ibmjgssfw.jar;
C:\Program Files\Java\jre\lib\ibmjssefw.jar;
C:\Program Files\Java\jre\lib\ibmsaslfw.jar;
C:\Program Files\Java\jre\lib\ibmjcefw.jar;
C:\Program Files\Java\jre\lib\ibmjgssprovider.jar;
C:\Program Files\Java\jre\lib\ibmjsseprovider2.jar;
C:\Program Files\Java\jre\lib\ibmcertpathprovider.jar;
C:\Program Files\Java\jre\lib\ibmxmlcrypto.jar;
C:\Program Files\Java\jre\lib\management-agent.jar;
C:\Program Files\Java\jre\lib\xml.jar;
C:\Program Files\Java\jre\lib\jlm.jar;
C:\Program Files\Java\jre\lib\javascript.jar
OS Version Microsoft Windows Server 2008 Enterprise Edition x64
Other software WebSphere Application Server V7.0 for Windows on x86-64bit
Test Information
Tested by Cisco Systems
SPEC license # 9019
Test location San Jose, CA
Test date Feb 21, 2011
H/w available Feb-2011
JVM available Sept-2009
OS available Oct-2009
Other s/w available N/A
AOT Compilation

Tuning
Operating system tunings
  • Turned off "Hardware Prefetch" in BIOS.
  • Turned off "Adjacent Sector Prefetch" in BIOS.
  • Turned off "DCU Streamer Prefetch" in BIOS.
  • Turned off "DCU IP Prefetch" in BIOS.
  • Turned off "Data Reuse Optimization" in BIOS.
  • "Lock pages in memory" enabled for benchmark user.
  • Each JVM instance was affinitized to two cores of a processor chip.
Notes
Command line options are described at: http://publib.boulder.ibm.com/infocenter/javasdk/v6r0/index.jsp

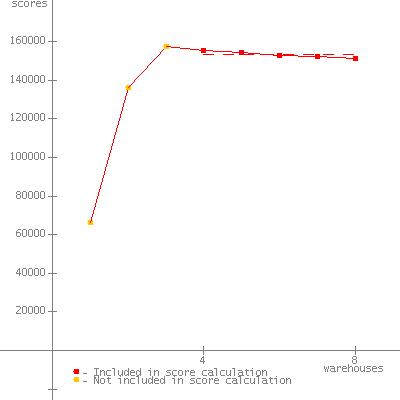

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 66255
2 136046
3 157644
4 155169 *
5 154569 *
6 153033 *
7 152201 *
8 151053 *
SPECjbb2005 (from 4 to 8) 153205 SPECjbb2005 bops
SPEC license # 9019 Tested by: Cisco Systems Test date: Feb 21, 2011


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 63373
2 132896
3 155654
4 153344 *
5 151677 *
6 149825 *
7 149398 *
8 148117 *
SPECjbb2005 (from 4 to 8) 150472 SPECjbb2005 bops
SPEC license # 9019 Tested by: Cisco Systems Test date: Feb 21, 2011


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 63674
2 138934
3 158432
4 171217 *
5 169895 *
6 168812 *
7 167319 *
8 165350 *
SPECjbb2005 (from 4 to 8) 168519 SPECjbb2005 bops
SPEC license # 9019 Tested by: Cisco Systems Test date: Feb 21, 2011

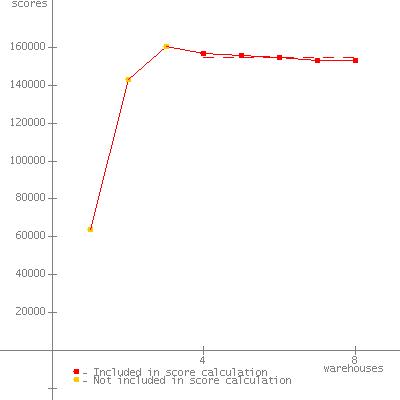

JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 63986
2 143201
3 160588
4 156940 *
5 155841 *
6 154761 *
7 153233 *
8 152904 *
SPECjbb2005 (from 4 to 8) 154736 SPECjbb2005 bops
SPEC license # 9019 Tested by: Cisco Systems Test date: Feb 21, 2011

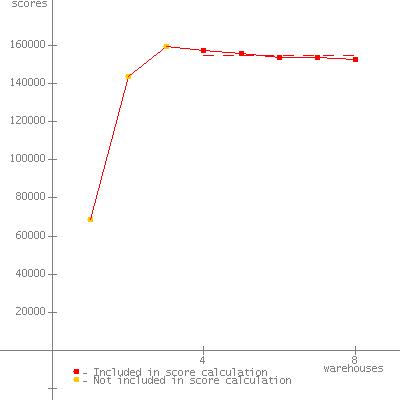

JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 68503
2 143805
3 159508
4 156998 *
5 155787 *
6 153647 *
7 153552 *
8 152304 *
SPECjbb2005 (from 4 to 8) 154458 SPECjbb2005 bops
SPEC license # 9019 Tested by: Cisco Systems Test date: Feb 21, 2011


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 62573
2 128523
3 157386
4 172452 *
5 170859 *
6 169153 *
7 167917 *
8 167233 *
SPECjbb2005 (from 4 to 8) 169523 SPECjbb2005 bops
SPEC license # 9019 Tested by: Cisco Systems Test date: Feb 21, 2011

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 09-Mar-2011
