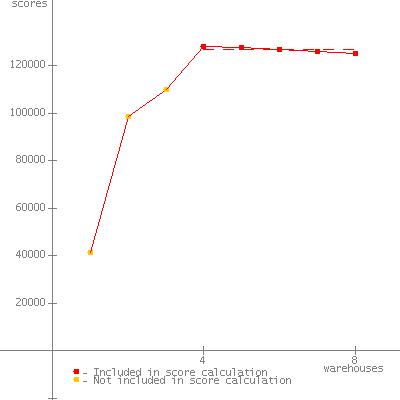

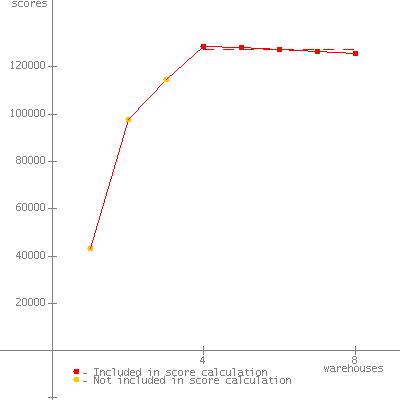

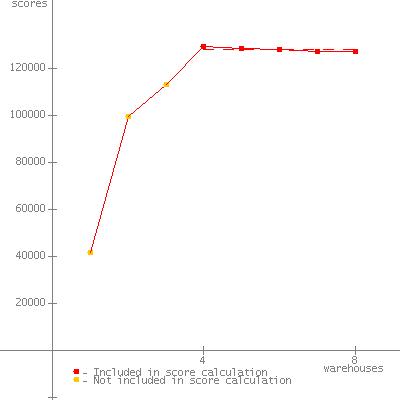

JVM run JVM Scores 1 125643 2 127018 3 127213 4 128159 5 127338 6 126340 7 127348 8 126743 SPECjbb2005 bops = 1015802, SPECjbb2005 bops/JVM = 126975

Hardware Hardware Vendor Cisco Systems Vendor URL http://www.cisco.com Model Cisco UCS B230 M1 Processor Intel Xeon X7560 (Intel Turbo Boost Technology up to 2.666GHz) MHz 2266 # of Chips 2 # of Cores 16 # of Cores/Chip 8 HW Threading Enabled? yes Procs Avail to Java 32 Memory (MB) 131072 Memory Details 32 x 4GB 2Rx4 PC3L-10600R, ECC, running at 1066MHz Primary cache 32KB I + 32KB D on chip per core Secondary cache 256KB (I+D) on chip per core Other cache 24MB (I+D) on chip per core Filesystem NTFS Disks 2 x 64GB 3Gb/s SATA SSD Other hardware Cisco UCS 6120XP 20 Port Fabric Interconnect, Cisco UCS 5100 Series Blade Server Chassis, Cisco UCS 2104XP Fabric Extender

Software Software Vendor IBM Corporation Vendor URL http://www.ibm.com JVM Version IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled) JVM Command Line java /HIGH /AFFINITY [0xF,0xF0,0xF00,0xF000,0xF0000,0xF00000,0xF000000,0xF0000000] -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp spec.jbb.JBBmain -propfile SPECjbb-UCS-B230-M1.props JVM Initial Heap Memory (MB) 1875 JVM Maximum Heap Memory (MB) 1875 JVM Address bits 64 JVM CLASSPATH .\jbb.jar; .\check.jar; JVM BOOTCLASSPATH C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\bin\compressedrefs\jclSC160\vm.jar; C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\annotation.jar; C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\beans.jar; C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\java.util.jar; C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\jndi.jar; C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\logging.jar; C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\security.jar; C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\sql.jar; C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\ibmorb.jar; C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\ibmorbapi.jar; C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\ibmcfw.jar; C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\rt.jar; C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\charsets.jar; C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\resources.jar; C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\ibmpkcs.jar; C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\ibmcertpathfw.jar; C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\ibmjgssfw.jar; C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\ibmjssefw.jar; C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\ibmsaslfw.jar; C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\ibmjcefw.jar; C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\ibmjgssprovider.jar; C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\ibmjsseprovider2.jar; C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\ibmcertpathprovider.jar; C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\ibmxmlcrypto.jar; C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\management-agent.jar; C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\xml.jar; C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\jlm.jar; C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\javascript.jar OS Version Microsoft Windows Server 2008 R2 Enterprise Edition x64 Other software None

Test Information Tested by Cisco Systems SPEC license # 9019 Test location San Jose, CA Test date Sep 2, 2010 H/w available Oct-2010 JVM available May-2009 OS available Feb-2008 Other s/w available N/A

AOT Compilation   Tuning Operating system tunings Turned off "Hardware Prefetcher" in BIOS. Turned off "Adjacent Cache Line Prefetch" in BIOS. "Lock pages in memory" enabled for benchmark user. Each JVM instance was affinitized to four logical cores of a chip. Notes Command line options are described at: http://publib.boulder.ibm.com/infocenter/javasdk/v6r0/index.jsp
