SPECjbb

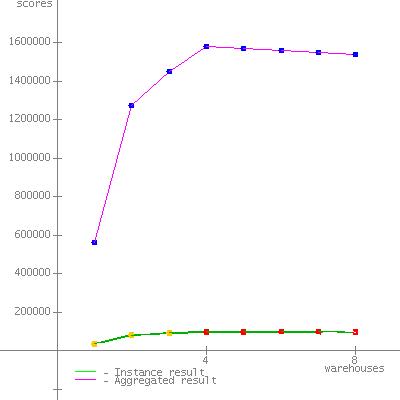

SPECjbb2005		SPECjbb2005 bops = 1559781, SPECjbb2005 bops/JVM = 97486
Dell Inc. PowerEdge M910 (Intel Xeon L7555, 1.86 GHz)
IBM Corporation IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled)

JVM run JVM Scores

1 99012

2 97462

3 97011

4 98801

5 96643

6 99286

7 95924

8 98456

9 95448

10 95612

11 99072

12 96158

13 96665

14 97827

15 98794

16 97610

SPECjbb2005 bops = 1559781, SPECjbb2005 bops/JVM = 97486

Hardware

Hardware Vendor Dell Inc.

Vendor URL http://www.dell.com

Model PowerEdge M910 (Intel Xeon L7555, 1.86 GHz)

Processor Intel Xeon L7555 1.86 GHz (Intel Turbo Boost Technology up to 2.53 GHz)

MHz 1867

# of Chips 4

# of Cores 32

# of Cores/Chip 8

HW Threading Enabled? Yes

Procs Avail to Java 64

Memory (MB) 131072

Memory Details 32 x 4 GB DDR3-1066 QR RDIMM

Primary cache 32 KB I + 32 KB D on chip per core

Secondary cache 256 KB I+D on chip per core

Other cache 24 MB I+D L3 on chip per chip

Filesystem NTFS

Disks 1 x 146 GB 15000 RPM SAS

Other hardware N/A

Software

Software Vendor IBM Corporation

Vendor URL http://www.ibm.com

JVM Version IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled)

JVM Command Line start /HIGH /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000,F00000000,F000000000,F0000000000,F00000000000, F000000000000, F0000000000000, F00000000000000, F000000000000000] Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp spec.jbb.JBBmain -propfile SPECjbb.props

JVM Initial Heap Memory (MB) 1875

JVM Maximum Heap Memory (MB) 1875

JVM Address bits 64

JVM CLASSPATH .\jbb.jar;
.\check.jar;

JVM BOOTCLASSPATH c:\specjbb2005\jvm\jre\bin\compressedrefs\jclSC160\vm.jar;
c:\specjbb2005\jvm\jre\lib\annotation.jar;
c:\specjbb2005\jvm\jre\lib\beans.jar;
c:\specjbb2005\jvm\jre\lib\java.util.jar;
c:\specjbb2005\jvm\jre\lib\jndi.jar;
c:\specjbb2005\jvm\jre\lib\logging.jar;
c:\specjbb2005\jvm\jre\lib\security.jar;
c:\specjbb2005\jvm\jre\lib\sql.jar;
c:\specjbb2005\jvm\jre\lib\ibmorb.jar;
c:\specjbb2005\jvm\jre\lib\ibmorbapi.jar;
c:\specjbb2005\jvm\jre\lib\ibmcfw.jar;
c:\specjbb2005\jvm\jre\lib\rt.jar;
c:\specjbb2005\jvm\jre\lib\charsets.jar;
c:\specjbb2005\jvm\jre\lib\resources.jar;
c:\specjbb2005\jvm\jre\lib\ibmpkcs.jar;
c:\specjbb2005\jvm\jre\lib\ibmcertpathfw.jar;
c:\specjbb2005\jvm\jre\lib\ibmjgssfw.jar;
c:\specjbb2005\jvm\jre\lib\ibmjssefw.jar;
c:\specjbb2005\jvm\jre\lib\ibmsaslfw.jar;
c:\specjbb2005\jvm\jre\lib\ibmjcefw.jar;
c:\specjbb2005\jvm\jre\lib\ibmjgssprovider.jar;
c:\specjbb2005\jvm\jre\lib\ibmjsseprovider2.jar;
c:\specjbb2005\jvm\jre\lib\ibmcertpathprovider.jar;
c:\specjbb2005\jvm\jre\lib\ibmxmlcrypto.jar;
c:\specjbb2005\jvm\jre\lib\management-agent.jar;
c:\specjbb2005\jvm\jre\lib\xml.jar;
c:\specjbb2005\jvm\jre\lib\jlm.jar;
c:\specjbb2005\jvm\jre\lib\javascript.jar

OS Version Microsoft Windows Server 2008 R2, Enterprise Edition

Other software N/A

Test Information

Tested by Dell Inc.

SPEC license # 55

Test location Round Rock, TX

Test date Mar 10, 2010

H/w available Mar-2010

JVM available Jul-2009

OS available Oct-2009

Other s/w available N/A

AOT Compilation

N/A

Tuning

Disabled 'Hardware Prefetcher' in BIOS
Disabled 'Adjacent Cache Line Prefetch' in BIOS
"Lock pages in memory" enabled for benchmark user.
Each JVM instance was affinitized to 4 logical processors.

Notes

Command line options are described at:http://publib.boulder.ibm.com/infocenter/javasdk/v6r0/index.jsp

JVM 1 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	35331
2	78287
3	90829
4	100759	*
5	98646	*
6	99083	*
7	98614	*
8	97958	*
SPECjbb2005	(from 4 to 8)	99012 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Mar 10, 2010

JVM 2 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	35231
2	79820
3	91337
4	98686	*
5	98290	*
6	97388	*
7	96586	*
8	96357	*
SPECjbb2005	(from 4 to 8)	97462 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Mar 10, 2010

JVM 3 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	35252
2	79275
3	89820
4	97718	*
5	98072	*
6	97174	*
7	96516	*
8	95578	*
SPECjbb2005	(from 4 to 8)	97011 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Mar 10, 2010

JVM 4 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	35452
2	79875
3	92766
4	100054	*
5	99315	*
6	98842	*
7	97996	*
8	97797	*
SPECjbb2005	(from 4 to 8)	98801 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Mar 10, 2010

JVM 5 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	35343
2	77869
3	91023
4	98423	*
5	96606	*
6	96625	*
7	96151	*
8	95410	*
SPECjbb2005	(from 4 to 8)	96643 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Mar 10, 2010

JVM 6 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	35265
2	80949
3	92556
4	100713	*
5	99350	*
6	99560	*
7	98463	*
8	98342	*
SPECjbb2005	(from 4 to 8)	99286 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Mar 10, 2010

JVM 7 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	34111
2	78347
3	90619
4	96709	*
5	96705	*
6	95845	*
7	95599	*
8	94762	*
SPECjbb2005	(from 4 to 8)	95924 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Mar 10, 2010

JVM 8 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	37236
2	80461
3	92599
4	99652	*
5	99324	*
6	98270	*
7	97688	*
8	97344	*
SPECjbb2005	(from 4 to 8)	98456 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Mar 10, 2010

JVM 9 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	34661
2	80253
3	88525
4	96834	*
5	96128	*
6	95366	*
7	94509	*
8	94406	*
SPECjbb2005	(from 4 to 8)	95448 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Mar 10, 2010

JVM 10 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	34911
2	79053
3	89687
4	96489	*
5	96021	*
6	95692	*
7	95257	*
8	94603	*
SPECjbb2005	(from 4 to 8)	95612 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Mar 10, 2010

JVM 11 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	35269
2	81480
3	91418
4	100629	*
5	99931	*
6	98880	*
7	98436	*
8	97485	*
SPECjbb2005	(from 4 to 8)	99072 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Mar 10, 2010

JVM 12 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	34685
2	81753
3	87503
4	97814	*
5	96612	*
6	95964	*
7	95375	*
8	95025	*
SPECjbb2005	(from 4 to 8)	96158 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Mar 10, 2010

JVM 13 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	34045
2	78891
3	89116
4	97867	*
5	97116	*
6	96746	*
7	96100	*
8	95497	*
SPECjbb2005	(from 4 to 8)	96665 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Mar 10, 2010

JVM 14 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	34838
2	79599
3	92102
4	99708	*
5	98601	*
6	97796	*
7	97131	*
8	95899	*
SPECjbb2005	(from 4 to 8)	97827 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Mar 10, 2010

JVM 15 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	35214
2	79202
3	89688
4	100466	*
5	99234	*
6	98524	*
7	98172	*
8	97576	*
SPECjbb2005	(from 4 to 8)	98794 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Mar 10, 2010

JVM 16 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	35631
2	79092
3	92572
4	99364	*
5	98351	*
6	97531	*
7	96788	*
8	96018	*
SPECjbb2005	(from 4 to 8)	97610 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Mar 10, 2010
