SPECjbb2005 SPECjbb2005 bops = 918378, SPECjbb2005 bops/JVM = 229595
Hewlett-Packard Company ProLiant DL385 G7
IBM Corporation IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled)

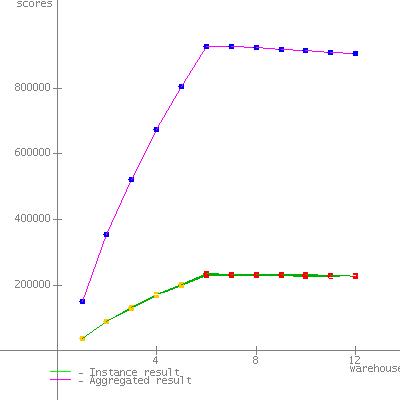

JVM run JVM Scores
1227978
2228383
3230456
4231561
SPECjbb2005 bops = 918378, SPECjbb2005 bops/JVM = 229595

Hardware
Hardware Vendor Hewlett-Packard Company
Vendor URL http://www.hp.com
Model ProLiant DL385 G7
Processor AMD Opteron 6176 SE
MHz 2300
# of Chips 2
# of Cores 24
# of Cores/Chip 12
HW Threading Enabled? No
Procs Avail to Java 24
Memory (MB) 16384
Memory Details 8 x 2048 MB PC3-10600R
Primary cache 64 KB I + 64 KB D on chip per core
Secondary cache 512 MB I+D on chip per core
Other cache 12 MB I+D on chip per chip, 6 MB shared per 6 cores
Filesystem NTFS
Disks 1 x 120GB SFF SATA SSD
Other hardware None
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command Line java -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1500m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\java\jre\bin\compressedrefs\jclSC160\vm.jar;
C:\java\jre\lib\annotation.jar;
C:\java\jre\lib\beans.jar;
C:\java\jre\lib\java.util.jar;
C:\java\jre\lib\jndi.jar;
C:\java\jre\lib\logging.jar;
C:\java\jre\lib\security.jar;
C:\java\jre\lib\sql.jar;
C:\java\jre\lib\ibmorb.jar;
C:\java\jre\lib\ibmorbapi.jar;
C:\java\jre\lib\ibmcfw.jar;
C:\java\jre\lib\rt.jar;
C:\java\jre\lib\charsets.jar;
C:\java\jre\lib\resources.jar;
C:\java\jre\lib\ibmpkcs.jar;
C:\java\jre\lib\ibmcertpathfw.jar;
C:\java\jre\lib\ibmjgssfw.jar;
C:\java\jre\lib\ibmjssefw.jar;
C:\java\jre\lib\ibmsaslfw.jar;
C:\java\jre\lib\ibmjcefw.jar;
C:\java\jre\lib\ibmjgssprovider.jar;
C:\java\jre\lib\ibmjsseprovider2.jar;
C:\java\jre\lib\ibmcertpathprovider.jar;
C:\java\jre\lib\ibmxmlcrypto.jar;
C:\java\jre\lib\management-agent.jar;
C:\java\jre\lib\xml.jar;
C:\java\jre\lib\jlm.jar;
C:\java\jre\lib\javascript.jar
OS Version Windows Server 2008 Enterprise Edition R2
Other software
Test Information
Tested by Hewlett-Packard Company
SPEC license # 3
Test location Houston, TX
Test date Mar 23, 2010
H/w available Apr-2010
JVM available Sep-2009
OS available Oct-2009
Other s/w available
AOT Compilation

Tuning
  • "Lock pages in memory" enabled for benchmark user
  • Power Option Set to High Performance
  • Used start /affinity to bind each JVM to 6 cores in each socket
    • Used the following affinity masks: [3F,FC0,3F000,FC0000]
Notes
Java command line options are described at http://publib.boulder.ibm.com/infocenter/javasdk/v6r0/index.jsp
BIOS Configuration
  • Power Regulator set to Static High
  • Thermal Configuration set to Increased Cooling

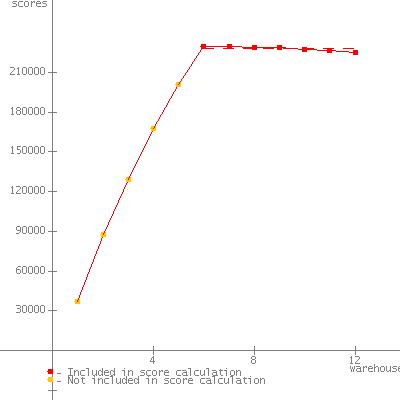

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37358
2 87627
3 129321
4 167596
5 201260
6 229824 *
7 229825 *
8 229112 *
9 228578 *
10 227074 *
11 226488 *
12 224948 *
SPECjbb2005 (from 6 to 12) 227978 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Mar 23, 2010


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37495
2 87969
3 129868
4 167688
5 199738
6 230376 *
7 230452 *
8 229727 *
9 228291 *
10 227790 *
11 226148 *
12 225900 *
SPECjbb2005 (from 6 to 12) 228383 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Mar 23, 2010


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 36918
2 88733
3 130972
4 168621
5 202510
6 233018 *
7 233089 *
8 231943 *
9 230050 *
10 230117 *
11 228433 *
12 226542 *
SPECjbb2005 (from 6 to 12) 230456 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Mar 23, 2010


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37531
2 89407
3 132070
4 169673
5 202798
6 235185 *
7 233101 *
8 232912 *
9 231409 *
10 230817 *
11 229187 *
12 228313 *
SPECjbb2005 (from 6 to 12) 231561 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Mar 23, 2010

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 14-Apr-2010
