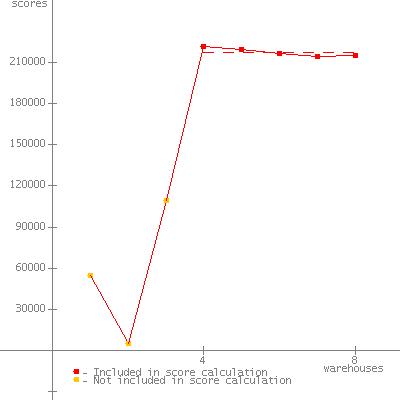

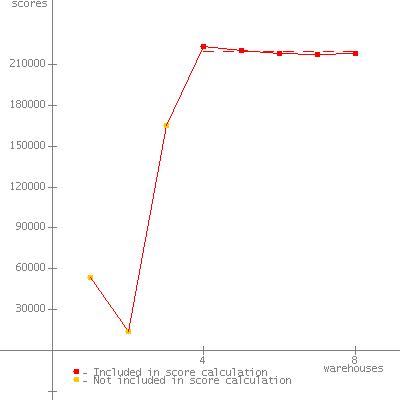

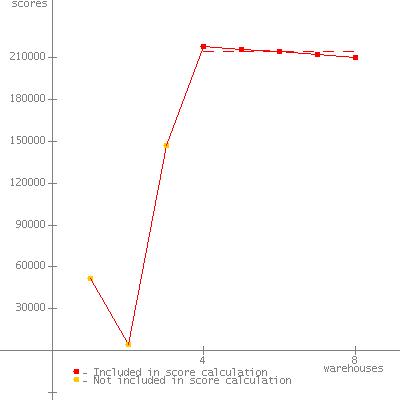

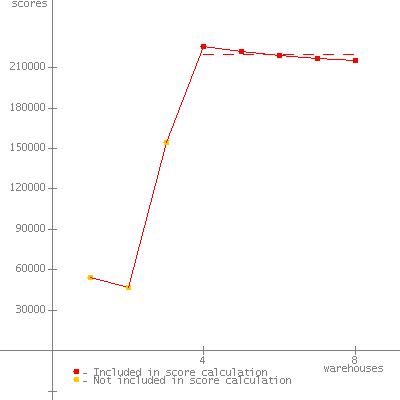

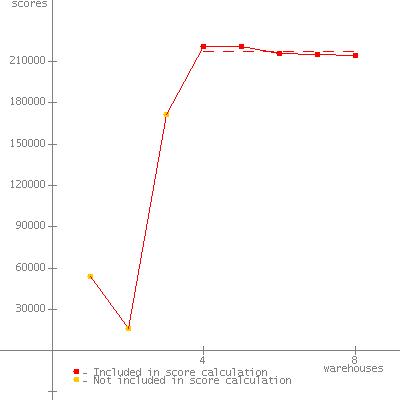

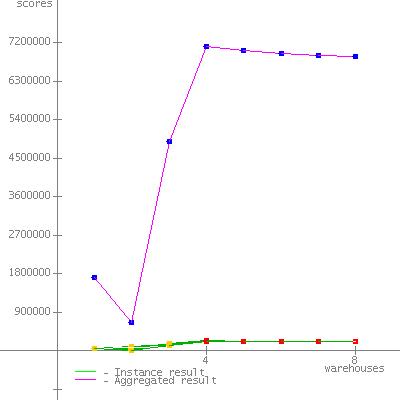

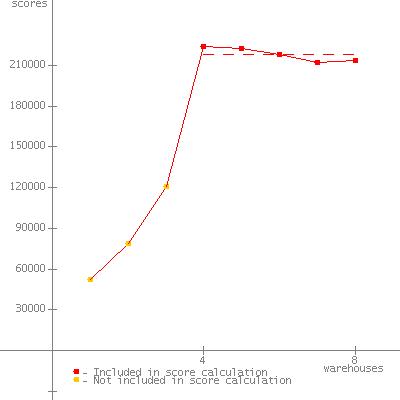

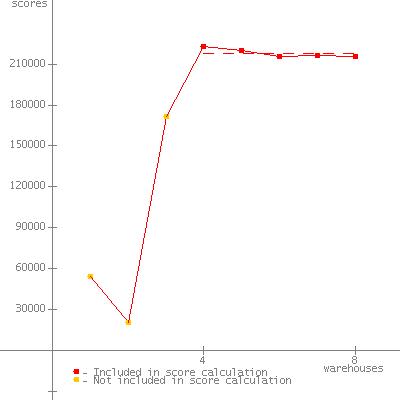

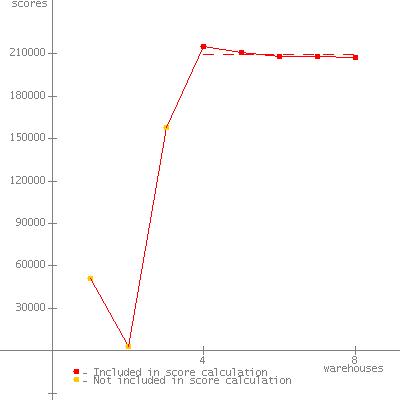

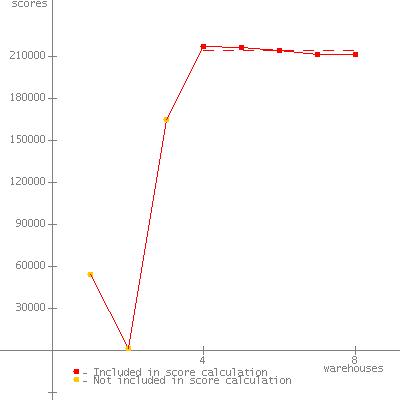

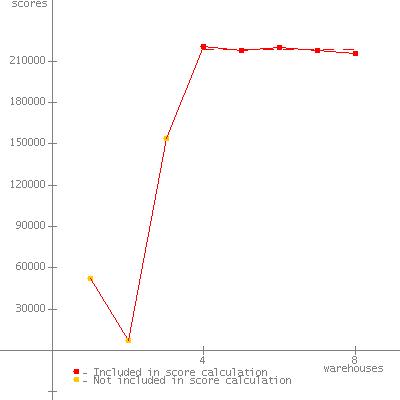

JVM run JVM Scores 1 218492 2 221369 3 218724 4 217489 5 215660 6 217538 7 219446 8 219741 9 217759 10 217000 11 217397 12 209819 13 217865 14 214272 15 222119 16 217618 17 218656 18 215293 19 212310 20 216824 21 218035 22 218730 23 219513 24 216169 25 220355 26 219941 27 218509 28 221927 29 218117 30 221047 31 214215 32 220948 SPECjbb2005 bops = 6972897, SPECjbb2005 bops/JVM = 217903

Hardware Hardware Vendor ScaleMP Inc. Vendor URL http://www.scalemp.com Model vSMP Foundation with 16 X PowerEdge M610 (Intel Xeon X5570, 2.93 GHz) Processor Intel Xeon X5570 2.93 GHz MHz 2933 # of Chips 32 # of Cores 128 # of Cores/Chip 4 HW Threading Enabled? No Procs Avail to Java 128 Memory (MB) 786432 MB Memory Details 16 x 2 x 6 x 4 GB DDR3-1066R, ECC, CL9 Primary cache 32 KB I + 32 KB D on chip per core Secondary cache 256 KB I+D on chip per core Other cache L3: 8 MB I+D on chip per chip Filesystem xfs Disks 16 x 150 GB SATA, 7200 RPM Other hardware Other Cache: - ScaleMP vSMP Foundation manages cache coherency between the InfiniBand-connected systems via multiple concurrent memory coherency mechanisms, on a per-block basis, based on real-time memory activity access patterns. - This mechanism reserves 96 GB of the main memory across all boards (distributed), which is used as a 4th level cache. Hardware Details: - System was aggregated using 16 X Dell PowerEdge M610. - The servers were connected with Melanox InfiniBand QDR and a QDR switch. CPU Characteristics: Intel Turbo Boost Technology not-enabled: As the prerequisites listed below for enablement of this technology did not exist. The prerequisites for Turbo Boost Technology are: - Hardware: Enabling Turbo Boost Technology require BIOS setting. - Software: OS needs to be ACPI-aware and set P0 power state. For more details on vSMP Foundation architecture: http://www.scalemp.com/architecture

Software Software Vendor Oracle Corporation Vendor URL http://www.oracle.com JVM Version Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29_BR8175970_BR9402966-129478-1.6.0_11-20100223-1644-linux-x86_64, compiled mode) JVM Command Line java -cp jbb.jar:check.jar -Xms3900m -Xmx3900m -Xns3300m -XlargePages -XXaggressive -XXcallProfiling -Xgc:genpar -XXgcthreads:4 -XXtlaSize:min=4k,preferred=1024k spec.jbb.JBBmain -propfile SPECjbb.props -id $x > multi.$x & JVM Initial Heap Memory (MB) 3900 JVM Maximum Heap Memory (MB) 3900 JVM Address bits 64 JVM CLASSPATH jbb.jar: check.jar JVM BOOTCLASSPATH /opt/jrockit-jdk1.6.0_11/jre/lib/amd64/jrockit/jrockit1.6.0.jar: /opt/jrockit-jdk1.6.0_11/jre/lib/amd64/jrockit/jmapi.jar: /opt/jrockit-jdk1.6.0_11/jre/lib/amd64/jrockit/jmxmapi.jar: /opt/jrockit-jdk1.6.0_11/jre/lib/amd64/jrockit/rmp.jar: /opt/jrockit-jdk1.6.0_11/jre/lib/amd64/jrockit/latency.jar: /opt/jrockit-jdk1.6.0_11/jre/lib/resources.jar: /opt/jrockit-jdk1.6.0_11/jre/lib/rt.jar: /opt/jrockit-jdk1.6.0_11/jre/lib/sunrsasign.jar: /opt/jrockit-jdk1.6.0_11/jre/lib/jsse.jar: /opt/jrockit-jdk1.6.0_11/jre/lib/jce.jar: /opt/jrockit-jdk1.6.0_11/jre/lib/charsets.jar: /opt/jrockit-jdk1.6.0_11/jre/classes OS Version RHEL5.4 Linux with 2.6.21.7-21.vSMP.nomc Kernel Other software ScaleMP vSMP Foundation 2.1.85.18

Test Information Tested by ScaleMP Inc. SPEC license # 2929 Test location Cupertino, CA Test date Mar 3, 2010 H/w available Apr-2009 JVM available Feb-2010 OS available May-2009 Other s/w available Jan-2010

AOT Compilation   Tuning Operating system tunings vm.nr_hugepages=100000 mount -t hugetlbfs nodev /mnt/hugepages Notes Numactl was used to bind JVMs to sockets; using numactl --cpunodebind=[NUMA node] JRockit Command line options are described at: http://download.oracle.com/docs/cd/E13150_01/jrockit_jvm/jrockit/jrdocs/refman/intro.html Customers can obtain the Kernel source and binaries, with full support from ScaleMP's support website (http://www.scalemp.com/support).
