SPECjbb2005 SPECjbb2005 bops = 304793, SPECjbb2005 bops/JVM = 152397
IBM Corporation IBM System x3200 M3
IBM Corporation IBM J9 VM (build pwa6460sr5-20090529_04(SR5))

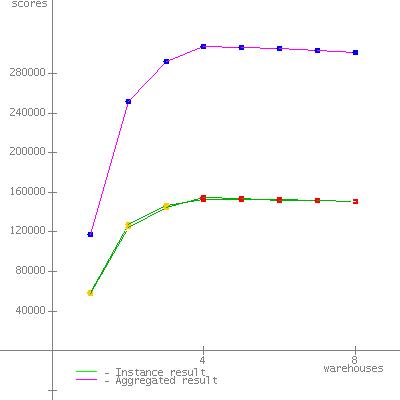

JVM run JVM Scores
1152337
2152456
SPECjbb2005 bops = 304793, SPECjbb2005 bops/JVM = 152397

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM System x3200 M3
Processor Intel Xeon X3470 (Intel Turbo Boost Technology up to 3.6 GHz)
MHz 2933
# of Chips 1
# of Cores 4
# of Cores/Chip 4
HW Threading Enabled? Yes
Procs Avail to Java 8
Memory (MB) 2 x 4096 MB
Memory Details SAMSUNG M393B5273BH1-CH9 2RX8 PC3-10600R; slots 1 and 4 populated
Primary cache 32 KB I + 32 KB D on chip per core
Secondary cache 256 KB I+D on chip per core
Other cache 8 MB I+D on chip per chip
Filesystem NTFS
Disks 1 x 250GB SATA, 7200 RPM
Other hardware None
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build pwa6460sr5-20090529_04(SR5))
JVM Command Line -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\IBM\Java60\jre\bin\compressedrefs\jclSC160\vm.jar;
C:\IBM\Java60\jre\lib\annotation.jar;
C:\IBM\Java60\jre\lib\beans.jar;
C:\IBM\Java60\jre\lib\java.util.jar;
C:\IBM\Java60\jre\lib\jndi.jar;
C:\IBM\Java60\jre\lib\logging.jar;
C:\IBM\Java60\jre\lib\security.jar;
C:\IBM\Java60\jre\lib\sql.jar;
C:\IBM\Java60\jre\lib\ibmorb.jar;
C:\IBM\Java60\jre\lib\ibmorbapi.jar;
C:\IBM\Java60\jre\lib\ibmcfw.jar;
C:\IBM\Java60\jre\lib\rt.jar;
C:\IBM\Java60\jre\lib\charsets.jar;
C:\IBM\Java60\jre\lib\resources.jar;
C:\IBM\Java60\jre\lib\ibmpkcs.jar;
C:\IBM\Java60\jre\lib\ibmcertpathfw.jar;
C:\IBM\Java60\jre\lib\ibmjgssfw.jar;
C:\IBM\Java60\jre\lib\ibmjssefw.jar;
C:\IBM\Java60\jre\lib\ibmsaslfw.jar;
C:\IBM\Java60\jre\lib\ibmjcefw.jar;
C:\IBM\Java60\jre\lib\ibmjgssprovider.jar;
C:\IBM\Java60\jre\lib\ibmjsseprovider2.jar;
C:\IBM\Java60\jre\lib\ibmcertpathprovider.jar;
C:\IBM\Java60\jre\lib\ibmxmlcrypto.jar;
C:\IBM\Java60\jre\lib\management-agent.jar;
C:\IBM\Java60\jre\lib\xml.jar;
C:\IBM\Java60\jre\lib\jlm.jar;
C:\IBM\Java60\jre\lib\javascript.jar
OS Version Microsoft Windows Server 2008 Enterprise Edition x64 SP1
Other software None
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location Taipei, Taiwan
Test date Sep 8, 2009
H/w available Sep-2009
JVM available Jun-2009
OS available 2008
Other s/w available None
AOT Compilation

Tuning
  • Affinity Masks set to 0x0F, 0xF0.
  • Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
  • Screen Saver set to None.
  • Power Options set to "High Performance".
  • "Visual Effects" set to "Adjust to best performance" in Performance Options.
  • BIOS Settings:
    • "Operating Mode" set to "Custom Mode"
    • Enable "Turbo Mode"
    • Enable "CPU C-States"
    • "Package ACPI C-State limit" set to "ACPI C3"
    • Disable "Hardware Prefetcher"
    • Disable "Adjacent Cache Prefetch"
    • Disable "DCU Streamer Prefetcher"
    • "Memory Speed" set to "Max Performance"
Notes
Command line options are described at: http://publib.boulder.ibm.com/infocenter/javasdk/v6r0/index.jsp

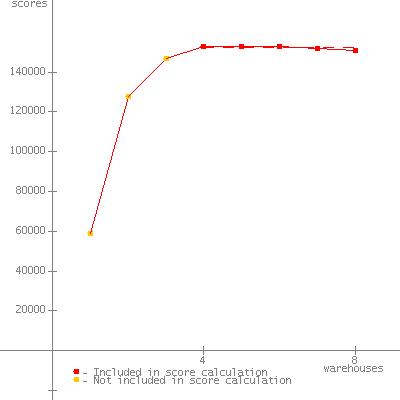

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 58764
2 127561
3 147098
4 153029 *
5 153096 *
6 152807 *
7 151738 *
8 151015 *
SPECjbb2005 (from 4 to 8) 152337 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 8, 2009


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 58096
2 124079
3 144896
4 154546 *
5 153306 *
6 152173 *
7 151593 *
8 150662 *
SPECjbb2005 (from 4 to 8) 152456 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 8, 2009

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
