SPECjbb

SPECjbb2005		SPECjbb2005 bops = 231464, SPECjbb2005 bops/JVM = 28933
Fujitsu Fujitsu SPARC Enterprise T5220
Sun Microsystems, Inc. Java HotSpot(TM) 32-Bit Server VM on Solaris, version 1.6.0_14 Performance Release

JVM run JVM Scores

1 28783

2 28884

3 28899

4 28851

5 28950

6 28892

7 29722

8 28483

SPECjbb2005 bops = 231464, SPECjbb2005 bops/JVM = 28933

Hardware

Hardware Vendor Fujitsu

Vendor URL http://www.fujitsu.com/

Model Fujitsu SPARC Enterprise T5220

Processor UltraSPARC(TM) T2

MHz 1582

# of Chips 1

# of Cores 8

# of Cores/Chip 8

HW Threading Enabled? Yes

Procs Avail to Java 64

Memory (MB) 65536

Memory Details 16x 4GB DDR2-667 FBDIMMs

Primary cache 16KB(I)+8KB(D) per core

Secondary cache 4MB per chip

Other cache

Filesystem ZFS

Disks 1x 73GB SCSI Disk

Other hardware

Software

Software Vendor Sun Microsystems, Inc.

Vendor URL http://www.sun.com

JVM Version Java HotSpot(TM) 32-Bit Server VM on Solaris, version 1.6.0_14 Performance Release

JVM Command Line psrset -e processor set number priocntl -c FX -t 250 -e java -Xmx3g -Xms3g -Xmn2g -XX:+UseParallelOldGC -XX:+AggressiveOpts -XX:ParallelGCThreads=11 -XX:LargePageSizeInBytes=256m -XX:AllocatePrefetchStyle=2 -XX:BiasedLockingStartupDelay=500 -classpath jbb.jar:check.jar spec.jbb.JBBmain -propfile SPECjbb.props -id JVM id

JVM Initial Heap Memory (MB) 3072

JVM Maximum Heap Memory (MB) 3072

JVM Address bits 32

JVM CLASSPATH jbb.jar:
check.jar

JVM BOOTCLASSPATH /disk4/benchmarks/java/jdk1.6.0_14/jre/lib/alt-rt.jar:
/disk4/benchmarks/java/jdk1.6.0_14/jre/lib/resources.jar:
/disk4/benchmarks/java/jdk1.6.0_14/jre/lib/rt.jar:
/disk4/benchmarks/java/jdk1.6.0_14/jre/lib/sunrsasign.jar:
/disk4/benchmarks/java/jdk1.6.0_14/jre/lib/jsse.jar:
/disk4/benchmarks/java/jdk1.6.0_14/jre/lib/jce.jar:
/disk4/benchmarks/java/jdk1.6.0_14/jre/lib/charsets.jar:
/disk4/benchmarks/java/jdk1.6.0_14/jre/classes

OS Version OpenSolaris 2009.06

Other software

Test Information

Tested by Sun Microsystems, Inc.

SPEC license # 19

Test location Burlington, MA.

Test date Jun 10, 2009

H/w available Jul-2009

JVM available May-2009

OS available Jun-2009

Other s/w available

AOT Compilation

Tuning

Notes

Each JVM was placed in the FX priority class with the priocntl command.
Seven JVMs were run in processor sets each containing one core.
One JVM was run in the default processor set
The parameter expected_peak_warehouse was set to 8.
This result was measured on the Sun SPARC Enterprise T5220.
The Sun SPARC Enterprise T5220 and the Fujitsu SPARC Enterprise T5220
are electronically equivalent.

JVM 1 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	4927
2	10225
3	14525
4	18296
5	21551
6	24498
7	26845
8	28925	*
9	28849	*
10	28842	*
11	28732	*
12	28834	*
13	28914	*
14	28702	*
15	28591	*
16	28655	*
SPECjbb2005	(from 8 to 16)	28783 SPECjbb2005 bops

SPEC license # 19

Tested by: Sun Microsystems, Inc.

Test date: Jun 10, 2009

JVM 2 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	4907
2	10277
3	14476
4	18259
5	21463
6	24415
7	26758
8	28941	*
9	28869	*
10	28770	*
11	28964	*
12	28809	*
13	28952	*
14	28628	*
15	29291	*
16	28730	*
SPECjbb2005	(from 8 to 16)	28884 SPECjbb2005 bops

SPEC license # 19

Tested by: Sun Microsystems, Inc.

Test date: Jun 10, 2009

JVM 3 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	4915
2	10257
3	14517
4	18307
5	21471
6	24538
7	26784
8	29001	*
9	28847	*
10	28788	*
11	28928	*
12	28832	*
13	29075	*
14	28572	*
15	29324	*
16	28722	*
SPECjbb2005	(from 8 to 16)	28899 SPECjbb2005 bops

SPEC license # 19

Tested by: Sun Microsystems, Inc.

Test date: Jun 10, 2009

JVM 4 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	4918
2	10242
3	14456
4	18264
5	21459
6	24419
7	26750
8	28865	*
9	28886	*
10	28727	*
11	28827	*
12	28832	*
13	28928	*
14	28719	*
15	29305	*
16	28572	*
SPECjbb2005	(from 8 to 16)	28851 SPECjbb2005 bops

SPEC license # 19

Tested by: Sun Microsystems, Inc.

Test date: Jun 10, 2009

JVM 5 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	4908
2	10252
3	14474
4	18289
5	21513
6	24492
7	26848
8	28963	*
9	28958	*
10	28796	*
11	29145	*
12	28876	*
13	28816	*
14	28794	*
15	28805	*
16	29400	*
SPECjbb2005	(from 8 to 16)	28950 SPECjbb2005 bops

SPEC license # 19

Tested by: Sun Microsystems, Inc.

Test date: Jun 10, 2009

JVM 6 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	4922
2	10215
3	14489
4	18263
5	21441
6	24480
7	26765
8	28947	*
9	29020	*
10	28806	*
11	28898	*
12	28876	*
13	28875	*
14	28830	*
15	29147	*
16	28632	*
SPECjbb2005	(from 8 to 16)	28892 SPECjbb2005 bops

SPEC license # 19

Tested by: Sun Microsystems, Inc.

Test date: Jun 10, 2009

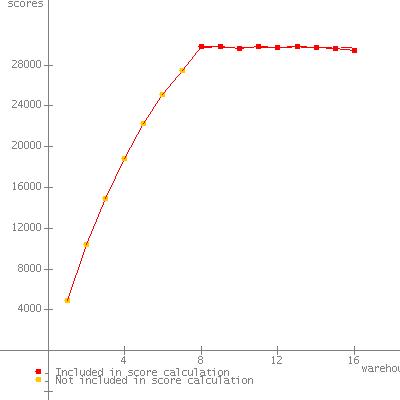

JVM 7 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	4880
2	10440
3	14921
4	18847
5	22230
6	25138
7	27508
8	29790	*
9	29860	*
10	29678	*
11	29779	*
12	29754	*
13	29830	*
14	29684	*
15	29662	*
16	29464	*
SPECjbb2005	(from 8 to 16)	29722 SPECjbb2005 bops

SPEC license # 19

Tested by: Sun Microsystems, Inc.

Test date: Jun 10, 2009

JVM 8 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	4894
2	10209
3	14343
4	18164
5	21428
6	24364
7	26542
8	28613	*
9	28612	*
10	28560	*
11	28543	*
12	28464	*
13	28490	*
14	28409	*
15	28409	*
16	28243	*
SPECjbb2005	(from 8 to 16)	28483 SPECjbb2005 bops

SPEC license # 19

Tested by: Sun Microsystems, Inc.

Test date: Jun 10, 2009
