SPECjbb2005 SPECjbb2005 bops = 60853, SPECjbb2005 bops/JVM = 60853
Sun Microsystems, Inc. Sun SPARC Enterprise M3000
Sun Microsystems, Inc. Java HotSpot(TM) 32-Bit Server VM on Solaris, version 1.6.0_06 Performance Release

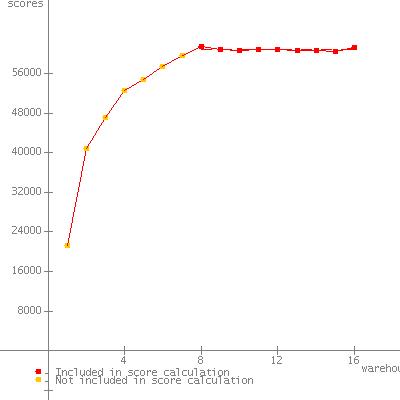

Warehouses SPECjbb2005 bops Incl. in metric
1 21172
2 40901
3 47184
4 52649
5 54772
6 57395
7 59712
8 61516 *
9 60848 *
10 60595 *
11 60926 *
12 60844 *
13 60664 *
14 60626 *
15 60368 *
16 61294 *
SPECjbb2005 (from 8 to 16) 60853 SPECjbb2005 bops
SPEC license # 6 Tested by: Fujitsu Limited Test date: 2008/09/28

Hardware
Hardware Vendor Sun Microsystems, Inc.
Vendor URL http://www.sun.com/
Model Sun SPARC Enterprise M3000
Processor SPARC64 VII
MHz 2520
# of Chips 1
# of Cores 4
# of Cores/Chip 4
HW Threading Enabled? Yes
Procs Avail to Java 8
Memory (MB) 16384
Memory Details 8x2GB DIMMs, all 2-way interleaved
Primary cache 64KBI+64KBD on chip per core
Secondary cache 5MB(I+D) on chip per chip
Other cache
Filesystem UFS
Disks Fujitsu 73GB 10K RPM SAS
Other hardware
Software
Software Vendor Sun Microsystems, Inc.
Vendor URL http://java.sun.com/
JVM Version Java HotSpot(TM) 32-Bit Server VM on Solaris, version 1.6.0_06 Performance Release
JVM Command Line priocntl -c FX -e java -server -Xms3680m -Xmx3680m -Xmn2g -Xss128k -XX:+UseParallelOldGC -XX:+AggressiveOpts -XX:+UseBiasedLocking -XX:+UseStringCache -XX:LargePageSizeInBytes=32m -XX:ParallelGCThreads=7 -XX:AllocatePrefetchLines=16 -verbose:gc -cp jbb.jar:check.jar spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 3680
JVM Maximum Heap Memory (MB) 3680
JVM Address bits 32
JVM CLASSPATH jbb.jar:
check.jar
JVM BOOTCLASSPATH /spec/export/specjbb/jre1.6.0_06-p/lib/resources.jar:
/spec/export/specjbb/jre1.6.0_06-p/lib/rt.jar:
/spec/export/specjbb/jre1.6.0_06-p/lib/sunrsasign.jar:
/spec/export/specjbb/jre1.6.0_06-p/lib/jsse.jar:
/spec/export/specjbb/jre1.6.0_06-p/lib/jce.jar:
/spec/export/specjbb/jre1.6.0_06-p/lib/charsets.jar:
/spec/export/specjbb/jre1.6.0_06-p/classes
OS Version Solaris 10 10/08 (64-bit)
Other software
Test Information
Tested by Fujitsu Limited
SPEC license # 6
Test location Kawasaki, Japan
Test date 2008/09/28
H/w available Oct-2008
JVM available Jul-2008
OS available Oct-2008
Other s/w available
AOT Compilation

Tuning
Operating system tunings
  • autoup=600
  • tune_t_fsflushr=10
  • bufhwm=3000
  • segmap_percent=1
Notes
  • Disabled hardware prefetch by 'setprefetchmode -s off' command on XSCF
  • Command line options are described at http://java.sun.com/docs/performance
  • This result was measured on the Fujitsu SPARC Enterprise M3000. The Fujitsu SPARC Enterprise M3000 and the Sun SPARC Enterprise M3000 are electronically equivalent.

Details of Runs

Warehouses Thrput Total heap (MB) Thread spread % % > 120s transaction type Count Time (in seconds)
SizeUsed totalmax
1 21172 3424 844 <0.01% <0.01 new_order 279226 12.5 .023
payment 192497 4.90 .023
order_status 19251 .545 .022
delivery 19250 5.29 .020
stock_level 19250 .920 .095
cust_report 105773 4.92 .090
2 40901 3585 1704 7.11% <0.01 new_order 539014 21.5 .146
payment 371916 8.68 .068
order_status 37192 .982 <0.01
delivery 37192 15.9 <0.01
stock_level 37191 2.08 .146
cust_report 204824 9.49 .069
3 47184 3595 422 9.80% <0.01 new_order 622060 25.6 .081
payment 429021 10.4 .082
order_status 42902 1.42 <0.01
delivery 42903 33.4 .124
stock_level 42903 3.85 .123
cust_report 235978 13.7 .123
4 52649 3602 1914 7.20% <0.01 new_order 694331 30.2 .064
payment 478809 11.9 <0.01
order_status 47879 1.80 .045
delivery 47880 50.4 .065
stock_level 47880 5.24 .064
cust_report 263279 18.7 .064
5 54772 3616 1786 20.5% <0.01 new_order 722030 37.1 .048
payment 498108 15.2 .019
order_status 49809 1.99 <0.01
delivery 49810 62.6 .050
stock_level 49811 6.43 .019
cust_report 274187 24.0 .048
6 57395 3620 1996 15.5% <0.01 new_order 757005 43.9 .076
payment 521952 18.0 .023
order_status 52194 2.55 <0.01
delivery 52192 74.2 .078
stock_level 52193 7.63 .023
cust_report 286884 30.2 .075
7 59712 3629 589 10.9% <0.01 new_order 787144 50.7 .075
payment 542963 21.5 .055
order_status 54295 2.81 <0.01
delivery 54295 85.7 .077
stock_level 54296 8.91 <0.01
cust_report 298774 36.1 .027
8 61516 3661 786 9.00% .036 new_order 6490197 458 .082
payment 4475535 194 .033
order_status 447555 25.0 .029
delivery 447552 778 .115
stock_level 447554 81.8 .031
cust_report 2460870 343 .082
9 60848 3659 1547 10.7% .032 new_order 6420357 516 .281
payment 4426712 224 .231
order_status 442671 30.5 .201
delivery 442669 868 .381
stock_level 442672 91.2 .201
cust_report 2433084 383 .231
10 60595 3656 2197 16.4% .070 new_order 6394225 571 .782
payment 4410005 249 .449
order_status 441001 34.4 .201
delivery 441001 960 .552
stock_level 441001 106 .441
cust_report 2425806 429 .631
11 60926 3654 1646 15.7% .036 new_order 6427301 633 .467
payment 4432548 270 .831
order_status 443253 37.6 .401
delivery 443253 1063 .652
stock_level 443254 112 .491
cust_report 2437791 469 .651
12 60844 3652 1092 16.5% .020 new_order 6417746 693 1.04
payment 4425889 294 .931
order_status 442587 41.7 .811
delivery 442587 1158 3.27
stock_level 442591 121 .441
cust_report 2434037 510 .651
13 60664 3649 2495 13.0% .044 new_order 6399639 747 .991
payment 4413849 324 1.07
order_status 441386 43.3 .651
delivery 441383 1248 3.79
stock_level 441386 130 .831
cust_report 2428062 559 .791
14 60626 3647 2407 15.8% .165 new_order 6404651 813 1.20
payment 4416485 352 1.03
order_status 441648 45.6 .561
delivery 441642 1342 1.25
stock_level 441649 139 .461
cust_report 2428290 605 1.40
15 60368 3644 2075 11.2% .106 new_order 6373049 867 1.68
payment 4395061 376 1.47
order_status 439504 55.3 .917
delivery 439501 1422 1.47
stock_level 439507 157 1.28
cust_report 2417068 647 1.58
16 61294 3642 1748 9.13% .042 new_order 6467065 970 2.82
payment 4459584 418 2.49
order_status 445959 51.4 .653
delivery 445958 1521 8.64
stock_level 445961 158 1.02
cust_report 2452116 698 1.75
SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 19-Nov-2008
