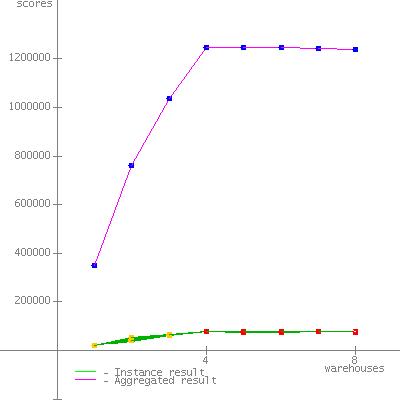

SPECjbb2005 SPECjbb2005 bops = 1243824, SPECjbb2005 bops/JVM = 77739
IBM Corporation IBM Power 570 (4.2 GHz, 32 core)
IBM Corporation J2RE 1.6.0 (32-bit) IBM J9 2.4 Linux (build pxp3260sr2-20080818_01)

JVM run JVM Scores
176620
278053
377077
478048
577592
677658
777866
876694
978019
1076968
1177934
1277527
1378923
1478985
1577970
1677890
SPECjbb2005 bops = 1243824, SPECjbb2005 bops/JVM = 77739

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM Power 570 (4.2 GHz, 32 core)
Processor POWER6
MHz 4200
# of Chips 16
# of Cores 32
# of Cores/Chip 2
HW Threading Enabled? yes
Procs Avail to Java 64
Memory (MB) 131072
Memory Details 64 x 2GB DDR2 667MHz
Primary cache 64KBI+64KBD on chip per core
Secondary cache 4MB on chip per core
Other cache 32MB off chip per chip
Filesystem ext3
Disks 1 x 146GB SAS 15K RPM
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version J2RE 1.6.0 (32-bit) IBM J9 2.4 Linux (build pxp3260sr2-20080818_01)
JVM Command Line numactl --physcpubind=n1,n2,n3,n4 --localalloc -- -Xlp -Xgcpolicy:gencon -Xgcthreads4 -Xcompactgc -XlockReservation -Xnoloa -Xms3328m -Xmx3328m -Xmn3072m spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 3328
JVM Maximum Heap Memory (MB) 3328
JVM Address bits 32
JVM CLASSPATH ./jbb.jar:
./check.jar:
JVM BOOTCLASSPATH /java/jre/lib/vm.jar:
/java/jre/lib/annotation.jar:
/java/jre/lib/beans.jar:
/java/jre/lib/java.util.jar:
/java/jre/lib/jndi.jar:
/java/jre/lib/logging.jar:
/java/jre/lib/security.jar:
/java/jre/lib/sql.jar:
/java/jre/lib/ibmorb.jar:
/java/jre/lib/ibmorbapi.jar:
/java/jre/lib/ibmcfw.jar:
/java/jre/lib/rt.jar:
/java/jre/lib/charsets.jar:
/java/jre/lib/resources.jar:
/java/jre/lib/ibmpkcs.jar:
/java/jre/lib/ibmcertpathfw.jar:
/java/jre/lib/ibmjgssfw.jar:
/java/jre/lib/ibmjssefw.jar:
/java/jre/lib/ibmsaslfw.jar:
/java/jre/lib/ibmjcefw.jar:
/java/jre/lib/ibmjgssprovider.jar:
/java/jre/lib/ibmjsseprovider2.jar:
/java/jre/lib/ibmcertpathprovider.jar:
/java/jre/lib/ibmxmlcrypto.jar:
/java/jre/lib/management-agent.jar:
/java/jre/lib/xml.jar:
/java/jre/lib/jlm.jar:
/java/jre/lib/javascript.jar
OS Version Red Hat Enterprise Linux Advanced Platform 5.2 for IBM POWER (2.6.18.92.el5)
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location Austin TX
Test date Sep 19, 2008
H/w available Nov-2008
JVM available Aug-2008
OS available May-2008
Other s/w available
AOT Compilation

Tuning
Operating system tunings
  • echo 4000 > /proc/sys/vm/nr_hugepages
  • echo 8000000000 > /proc/sys/kernel/shmmax
  • echo 1000000 > /proc/sys/kernel/shmall
Notes


JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 21457
2 46743
3 64861
4 76935 *
5 76460 *
6 76297 *
7 76714 *
8 76697 *
SPECjbb2005 (from 4 to 8) 76620 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 19, 2008

JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 22153
2 39524
3 64421
4 78694 *
5 78420 *
6 77949 *
7 77808 *
8 77393 *
SPECjbb2005 (from 4 to 8) 78053 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 19, 2008

JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 21411
2 52274
3 63690
4 77840 *
5 77549 *
6 76820 *
7 76797 *
8 76379 *
SPECjbb2005 (from 4 to 8) 77077 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 19, 2008

JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 21372
2 52699
3 64471
4 78115 *
5 77648 *
6 78289 *
7 78339 *
8 77848 *
SPECjbb2005 (from 4 to 8) 78048 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 19, 2008

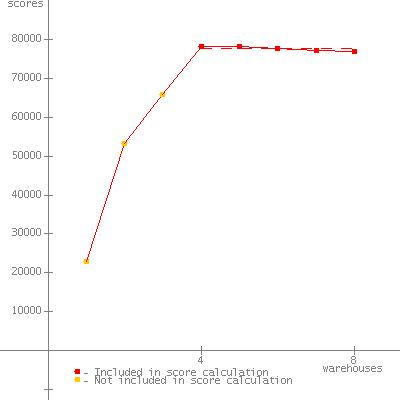

JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 23028
2 53209
3 65912
4 78274 *
5 78104 *
6 77573 *
7 77107 *
8 76900 *
SPECjbb2005 (from 4 to 8) 77592 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 19, 2008

JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 20896
2 52058
3 63909
4 77082 *
5 78233 *
6 77882 *
7 77774 *
8 77318 *
SPECjbb2005 (from 4 to 8) 77658 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 19, 2008

JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 21998
2 39328
3 64258
4 78157 *
5 78151 *
6 77930 *
7 77808 *
8 77282 *
SPECjbb2005 (from 4 to 8) 77866 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 19, 2008

JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 21949
2 51882
3 64731
4 77234 *
5 76987 *
6 76541 *
7 76547 *
8 76164 *
SPECjbb2005 (from 4 to 8) 76694 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 19, 2008

JVM 9 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 23023
2 53512
3 65087
4 78585 *
5 78175 *
6 77748 *
7 77599 *
8 77986 *
SPECjbb2005 (from 4 to 8) 78019 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 19, 2008

JVM 10 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 21867
2 50687
3 64108
4 76936 *
5 77686 *
6 77142 *
7 76648 *
8 76425 *
SPECjbb2005 (from 4 to 8) 76968 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 19, 2008

JVM 11 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 22208
2 39671
3 63955
4 78353 *
5 78221 *
6 77971 *
7 77778 *
8 77347 *
SPECjbb2005 (from 4 to 8) 77934 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 19, 2008

JVM 12 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 22393
2 39468
3 64153
4 77539 *
5 77426 *
6 77785 *
7 77671 *
8 77216 *
SPECjbb2005 (from 4 to 8) 77527 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 19, 2008

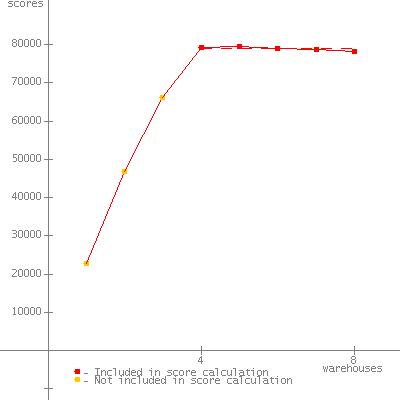

JVM 13 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 22859
2 46885
3 66239
4 79251 *
5 79584 *
6 78913 *
7 78643 *
8 78223 *
SPECjbb2005 (from 4 to 8) 78923 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 19, 2008

JVM 14 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 21665
2 40002
3 65149
4 78767 *
5 78866 *
6 79339 *
7 79234 *
8 78721 *
SPECjbb2005 (from 4 to 8) 78985 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 19, 2008

JVM 15 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 21544
2 52436
3 65081
4 77617 *
5 77501 *
6 78418 *
7 78348 *
8 77969 *
SPECjbb2005 (from 4 to 8) 77970 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 19, 2008

JVM 16 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 21199
2 52815
3 64740
4 77561 *
5 78526 *
6 77990 *
7 77851 *
8 77520 *
SPECjbb2005 (from 4 to 8) 77890 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 19, 2008
SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 23-Oct-2008
