SPECjbb

SPECjbb2005		SPECjbb2005 bops = 192055, SPECjbb2005 bops/JVM = 24007
Sun Microsystems, Inc. Sun SPARC Enterprise T5220
Sun Microsystems, Inc. Java HotSpot(TM) 32-Bit Server VM on Solaris, version 1.6.0_04-p

JVM run JVM Scores

1 24195

2 23923

3 24049

4 23802

5 23899

6 24058

7 24088

8 24041

SPECjbb2005 bops = 192055, SPECjbb2005 bops/JVM = 24007

Hardware

Hardware Vendor Sun Microsystems, Inc.

Vendor URL http://www.sun.com

Model Sun SPARC Enterprise T5220

Processor UltraSPARC(TM) T2

MHz 1400

# of Chips 1

# of Cores 8

# of Cores/Chip 8

HW Threading Enabled? Yes

Procs Avail to Java 64

Memory (MB) 32768

Memory Details 16 x 2GB DDR2 FBDIMMs

Primary cache 16KB(I)+8KB(D) per core

Secondary cache 4MB per chip

Other cache

Filesystem UFS

Disks 1 x 72GB SAS

Other hardware

Software

Software Vendor Sun Microsystems, Inc.

Vendor URL http://www.sun.com

JVM Version Java HotSpot(TM) 32-Bit Server VM on Solaris, version 1.6.0_04-p

JVM Command Line psrset -e processor set number priocntl -c FX -e java -Xmx2560m -Xms2560m -Xmn1280m -Xss96k -XX:+PrintGCTimeStamps -XX:+PrintGCDetails -XX:+UseParallelOldGC -XX:+AggressiveOpts -XX:ParallelGCThreads=8 -XX:LargePageSizeInBytes=256m -classpath jbb.jar:check.jar spec.jbb.JBBmain -propfile SPECjbb.props -id JVM id

JVM Initial Heap Memory (MB) 2560

JVM Maximum Heap Memory (MB) 2560

JVM Address bits 32

JVM CLASSPATH jbb.jar:
check.jar

JVM BOOTCLASSPATH /export/home/dagastin/VMs/jdk1.6.0_04-p/jre/lib/resources.jar:
/export/home/dagastin/VMs/jdk1.6.0_04-p/jre/lib/rt.jar:
/export/home/dagastin/VMs/jdk1.6.0_04-p/jre/lib/sunrsasign.jar:
/export/home/dagastin/VMs/jdk1.6.0_04-p/jre/lib/jsse.jar:
/export/home/dagastin/VMs/jdk1.6.0_04-p/jre/lib/jce.jar:
/export/home/dagastin/VMs/jdk1.6.0_04-p/jre/lib/charsets.jar:
/export/home/dagastin/VMs/jdk1.6.0_04-p/jre/classes

OS Version Solaris 10 8/07

Other software

Test Information

Tested by Sun Microsystems, Inc.

SPEC license # 6

Test location Burlington, MA.

Test date Oct 4, 2007

H/w available Nov-2007

JVM available Dec-2007

OS available Sep-2007

Other s/w available

AOT Compilation

Tuning

Each JVM was placed in the FX priority class with the priocntl command.
Each JVM was run in its own processor set containing one core.
Tuning added to /etc/system
set autoup=345600
set tune_t_fsflushr=345600
set segmap_percent=1
Sun System Firmware patch 127580-01.

Notes

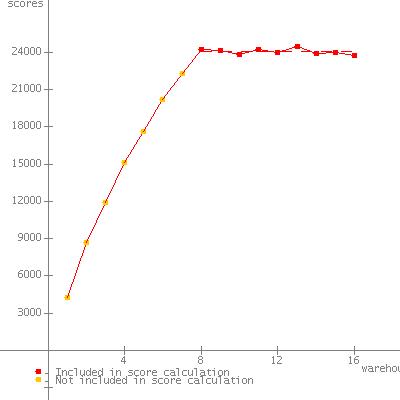

JVM 1 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	4258
2	8747
3	11951
4	15136
5	17699
6	20266
7	22296
8	24324	*
9	24217	*
10	23876	*
11	24142	*
12	24164	*
13	24313	*
14	24034	*
15	24024	*
16	24661	*
SPECjbb2005	(from 8 to 16)	24195 SPECjbb2005 bops

SPEC license # 6

Tested by: Sun Microsystems, Inc.

Test date: Oct 4, 2007

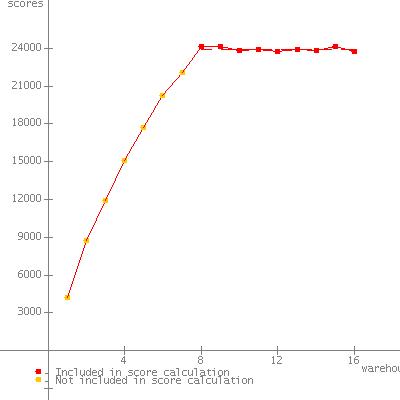

JVM 2 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	4238
2	8710
3	11900
4	15104
5	17694
6	20235
7	22067
8	24163	*
9	24107	*
10	23789	*
11	23866	*
12	23777	*
13	23920	*
14	23827	*
15	24098	*
16	23757	*
SPECjbb2005	(from 8 to 16)	23923 SPECjbb2005 bops

SPEC license # 6

Tested by: Sun Microsystems, Inc.

Test date: Oct 4, 2007

JVM 3 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	4269
2	8771
3	11948
4	15136
5	17708
6	20254
7	22194
8	24203	*
9	24094	*
10	23839	*
11	24037	*
12	24042	*
13	24064	*
14	23936	*
15	24202	*
16	24028	*
SPECjbb2005	(from 8 to 16)	24049 SPECjbb2005 bops

SPEC license # 6

Tested by: Sun Microsystems, Inc.

Test date: Oct 4, 2007

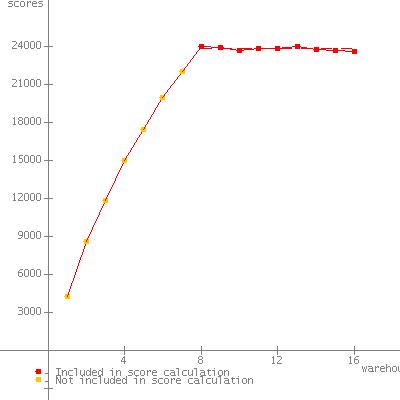

JVM 4 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	4274
2	8605
3	11818
4	15002
5	17457
6	19974
7	21995
8	24008	*
9	23890	*
10	23687	*
11	23800	*
12	23822	*
13	23978	*
14	23724	*
15	23695	*
16	23611	*
SPECjbb2005	(from 8 to 16)	23802 SPECjbb2005 bops

SPEC license # 6

Tested by: Sun Microsystems, Inc.

Test date: Oct 4, 2007

JVM 5 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	4270
2	8673
3	11852
4	15050
5	17586
6	20107
7	22147
8	24102	*
9	24003	*
10	23826	*
11	23973	*
12	23930	*
13	23852	*
14	23801	*
15	23797	*
16	23811	*
SPECjbb2005	(from 8 to 16)	23899 SPECjbb2005 bops

SPEC license # 6

Tested by: Sun Microsystems, Inc.

Test date: Oct 4, 2007

JVM 6 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	4266
2	8669
3	11885
4	15101
5	17656
6	20160
7	22171
8	24228	*
9	24135	*
10	23794	*
11	24157	*
12	24012	*
13	24395	*
14	23927	*
15	23935	*
16	23941	*
SPECjbb2005	(from 8 to 16)	24058 SPECjbb2005 bops

SPEC license # 6

Tested by: Sun Microsystems, Inc.

Test date: Oct 4, 2007

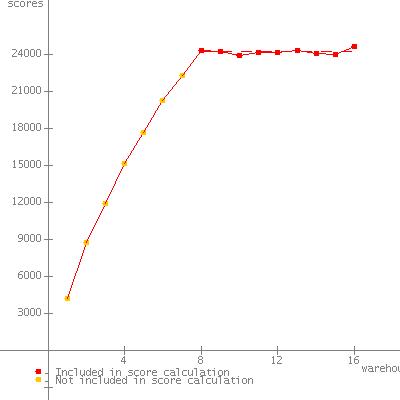

JVM 7 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	4273
2	8667
3	11936
4	15142
5	17694
6	20238
7	22233
8	24197	*
9	24163	*
10	23839	*
11	24096	*
12	24040	*
13	24022	*
14	24006	*
15	23955	*
16	24476	*
SPECjbb2005	(from 8 to 16)	24088 SPECjbb2005 bops

SPEC license # 6

Tested by: Sun Microsystems, Inc.

Test date: Oct 4, 2007

JVM 8 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	4261
2	8728
3	11928
4	15116
5	17643
6	20217
7	22249
8	24184	*
9	24098	*
10	23819	*
11	24181	*
12	24000	*
13	24479	*
14	23901	*
15	23940	*
16	23763	*
SPECjbb2005	(from 8 to 16)	24041 SPECjbb2005 bops

SPEC license # 6

Tested by: Sun Microsystems, Inc.

Test date: Oct 4, 2007
