SPECjbb

SPECjbb2005		SPECjbb2005 bops = 81907, SPECjbb2005 bops/JVM = 81907
Dell PowerEdge 2950
BEA Systems, Inc. BEA JRockit(R) 5.0 P27.1.0 (build P27.1.0-7-71488-1.5.0_08-20061103-1228-windows-x86_64)

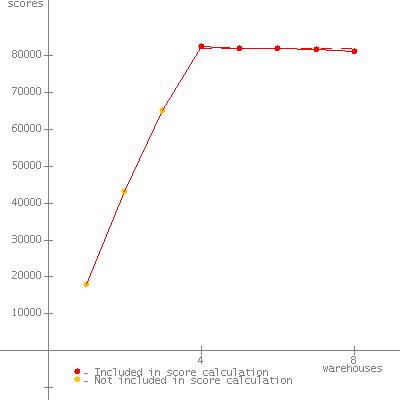

Warehouses	SPECjbb2005 bops	Incl. in metric
1	17900
2	43261
3	65186
4	82650	*
5	82084	*
6	81970	*
7	81635	*
8	81194	*
SPECjbb2005	(from 4 to 8)	81907 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell

Test date: Jan 12, 2007

Hardware

Hardware Vendor Dell

Vendor URL http://www.dell.com

Model PowerEdge 2950

Processor Intel Xeon processor 5110 (1066MHz system bus)

MHz 1600

# of Chips 2

# of Cores 4

# of Cores/Chip 2

HW Threading Enabled? No

Procs Avail to Java 4

Memory (MB) 16384

Memory Details 8 x 2GB DDR2-667 FBDIMM

Primary cache 32KB(I)+32KB(D) on chip, per core

Secondary cache 4096KB(I+D) on chip, shared

Other cache n/a

Filesystem NTFS

Disks 1 x 72GB SAS

Other hardware none

Software

Software Vendor BEA Systems, Inc.

Vendor URL http://www.bea.com

JVM Version BEA JRockit(R) 5.0 P27.1.0 (build P27.1.0-7-71488-1.5.0_08-20061103-1228-windows-x86_64)

JVM Command Line java -Xmx3700m -Xms3700m -Xns3100m -XXaggressive -Xlargepages -XXlazyunlocking -Xgc:genpar -Xxtlasize:min=16k,preferred=64k spec.jbb.JBBmain -propfile SPECjbb.props

JVM Initial Heap Memory (MB) 3700

JVM Maximum Heap Memory (MB) 3700

JVM Address bits 64

JVM CLASSPATH .\jbb.jar;
.\check.jar;

JVM BOOTCLASSPATH c:\SPECjbb2005\jvm\jrockit-jdk1.5.0_08\jre\bin\jrockit\jrockit1.5.0.jar;
c:\SPECjbb2005\jvm\jrockit-jdk1.5.0_08\jre\bin\jrockit\managementapi.jar;
c:\SPECjbb2005\jvm\jrockit-jdk1.5.0_08\jre\bin\jrockit\jmxmapi.jar;
c:\SPECjbb2005\jvm\jrockit-jdk1.5.0_08\jre\bin\jrockit\rmp.jar;
c:\SPECjbb2005\jvm\jrockit-jdk1.5.0_08\jre\lib\rt.jar;
c:\SPECjbb2005\jvm\jrockit-jdk1.5.0_08\jre\lib\i18n.jar;
c:\SPECjbb2005\jvm\jrockit-jdk1.5.0_08\jre\lib\sunrsasign.jar;
c:\SPECjbb2005\jvm\jrockit-jdk1.5.0_08\jre\lib\jsse.jar;
c:\SPECjbb2005\jvm\jrockit-jdk1.5.0_08\jre\lib\jce.jar;
c:\SPECjbb2005\jvm\jrockit-jdk1.5.0_08\jre\lib\charsets.jar;
c:\SPECjbb2005\jvm\jrockit-jdk1.5.0_08\jre\classes

OS Version Microsoft Windows Server 2003 Enterprise x64 Edition + SP1 (64-bit)

Other software none

Test Information

Tested by Dell

SPEC license # 55

Test location Round Rock, TX

Test date Jan 12, 2007

H/w available Jul-2006

JVM available Feb-2007

OS available Mar-2005

Other s/w available n/a

AOT Compilation

Tuning

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.

Notes

Disabled 'Hardware Prefetcher' in BIOS
Disabled 'Adjacent Cache Line Prefetch' in BIOS
Command line options are described in: DELL-20061108.txt

Details of Runs

Warehouses	Thrput	Total heap (MB)		Thread spread %	% > 120s	transaction type	Count	Time (in seconds)
Warehouses	Thrput	Size	Used	Thread spread %	% > 120s	transaction type	Count	total	max
1	17900	3700	1856	<0.01%	<0.01	new_order	236227	12.6	.016
						payment	162815	5.36	.469
						order_status	16282	.520	.016
						delivery	16282	4.56	.016
						stock_level	16282	.936	.016
						cust_report	89400	5.34	.016
2	43261	3700	1843	.732%	<0.01	new_order	570266	24.4	.188
						payment	393286	10.9	.047
						order_status	39329	.987	.016
						delivery	39326	10.0	.016
						stock_level	39329	1.34	.016
						cust_report	216299	10.1	.047
3	65186	3700	1815	2.23%	<0.01	new_order	859269	37.5	.172
						payment	592596	14.9	.172
						order_status	59260	1.56	.016
						delivery	59260	16.7	.047
						stock_level	59261	1.98	.016
						cust_report	325934	14.9	.062
4	82650	3700	3016	2.31%	.033	new_order	8718914	384	.187
						payment	6012843	148	.063
						order_status	601285	16.2	.188
						delivery	601285	193	.188
						stock_level	601284	23.0	.063
						cust_report	3306768	167	.187
5	82084	3700	3310	29.9%	<0.01	new_order	8657501	470	.422
						payment	5970117	188	.453
						order_status	597009	23.5	.375
						delivery	597011	242	.391
						stock_level	597013	29.9	.266
						cust_report	3282713	208	.391
6	81970	3700	1131	38.6%	.072	new_order	8649979	550	.766
						payment	5965697	234	1.41
						order_status	596571	27.7	.750
						delivery	596568	292	.766
						stock_level	596568	36.3	.797
						cust_report	3281431	258	.750
7	81635	3700	3173	35.5%	<0.01	new_order	8608544	654	1.14
						payment	5937102	264	1.11
						order_status	593711	28.9	1.41
						delivery	593710	338	3.74
						stock_level	593709	37.8	.953
						cust_report	3265669	306	1.30
8	81194	3700	2230	15.1%	<0.01	new_order	8563302	738	1.14
						payment	5905431	320	1.27
						order_status	590541	34.2	1.16
						delivery	590544	378	9.59
						stock_level	590542	43.5	.953
						cust_report	3247568	346	1.22
