SPECjbb

SPECjbb2005		SPECjbb2005 bops = 81480, SPECjbb2005 bops/JVM = 81480
Dell PowerEdge 2900
BEA Systems, Inc. BEA JRockit(R) 5.0 P27.1.0 (build P27.1.0-7-71488-1.5.0_08-20061103-1228-windows-x86_64)

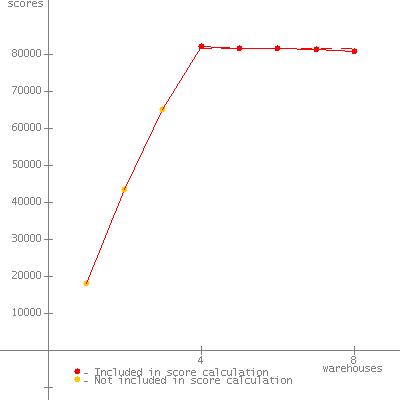

Warehouses	SPECjbb2005 bops	Incl. in metric
1	18062
2	43565
3	65177
4	82222	*
5	81522	*
6	81550	*
7	81239	*
8	80867	*
SPECjbb2005	(from 4 to 8)	81480 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell

Test date: Jan 12, 2007

Hardware

Hardware Vendor Dell

Vendor URL http://www.dell.com

Model PowerEdge 2900

Processor Intel Xeon processor 5110 (1066MHz system bus)

MHz 1600

# of Chips 2

# of Cores 4

# of Cores/Chip 2

HW Threading Enabled? No

Procs Avail to Java 4

Memory (MB) 16384

Memory Details 8 x 2GB DDR2-667 FBDIMM

Primary cache 32KB(I)+32KB(D) on chip, per core

Secondary cache 4096KB(I+D) on chip, shared

Other cache n/a

Filesystem NTFS

Disks 1 x 72GB SAS

Other hardware none

Software

Software Vendor BEA Systems, Inc.

Vendor URL http://www.bea.com

JVM Version BEA JRockit(R) 5.0 P27.1.0 (build P27.1.0-7-71488-1.5.0_08-20061103-1228-windows-x86_64)

JVM Command Line java -Xmx3700m -Xms3700m -Xns3100m -XXaggressive -Xlargepages -XXlazyunlocking -Xgc:genpar -Xxtlasize:min=16k,preferred=64k spec.jbb.JBBmain -propfile SPECjbb.props

JVM Initial Heap Memory (MB) 3700

JVM Maximum Heap Memory (MB) 3700

JVM Address bits 64

JVM CLASSPATH .\jbb.jar;
.\check.jar;

JVM BOOTCLASSPATH c:\SPECjbb2005\jvm\jrockit-jdk1.5.0_08\jre\bin\jrockit\jrockit1.5.0.jar;
c:\SPECjbb2005\jvm\jrockit-jdk1.5.0_08\jre\bin\jrockit\managementapi.jar;
c:\SPECjbb2005\jvm\jrockit-jdk1.5.0_08\jre\bin\jrockit\jmxmapi.jar;
c:\SPECjbb2005\jvm\jrockit-jdk1.5.0_08\jre\bin\jrockit\rmp.jar;
c:\SPECjbb2005\jvm\jrockit-jdk1.5.0_08\jre\lib\rt.jar;
c:\SPECjbb2005\jvm\jrockit-jdk1.5.0_08\jre\lib\i18n.jar;
c:\SPECjbb2005\jvm\jrockit-jdk1.5.0_08\jre\lib\sunrsasign.jar;
c:\SPECjbb2005\jvm\jrockit-jdk1.5.0_08\jre\lib\jsse.jar;
c:\SPECjbb2005\jvm\jrockit-jdk1.5.0_08\jre\lib\jce.jar;
c:\SPECjbb2005\jvm\jrockit-jdk1.5.0_08\jre\lib\charsets.jar;
c:\SPECjbb2005\jvm\jrockit-jdk1.5.0_08\jre\classes

OS Version Microsoft Windows Server 2003 Enterprise x64 Edition + SP1 (64-bit)

Other software none

Test Information

Tested by Dell

SPEC license # 55

Test location Round Rock, TX

Test date Jan 12, 2007

H/w available Jul-2006

JVM available Feb-2007

OS available Mar-2005

Other s/w available n/a

AOT Compilation

Tuning

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.

Notes

Disabled 'Hardware Prefetcher' in BIOS
Disabled 'Adjacent Cache Line Prefetch' in BIOS
Command line options are described in: DELL-20061108.txt

Details of Runs

Warehouses	Thrput	Total heap (MB)		Thread spread %	% > 120s	transaction type	Count	Time (in seconds)
Warehouses	Thrput	Size	Used	Thread spread %	% > 120s	transaction type	Count	total	max
1	18062	3700	1917	<0.01%	<0.01	new_order	238036	12.8	.485
						payment	164276	5.44	.016
						order_status	16427	.531	.016
						delivery	16428	4.23	.016
						stock_level	16428	.766	.016
						cust_report	90522	5.38	.016
2	43565	3700	1975	.726%	<0.01	new_order	573953	23.3	.171
						payment	396040	11.4	.047
						order_status	39604	1.07	.016
						delivery	39605	10.3	.047
						stock_level	39604	1.22	.016
						cust_report	218132	10.6	.047
3	65177	3700	1948	2.21%	<0.01	new_order	859126	37.1	.172
						payment	592515	14.5	.172
						order_status	59252	1.64	.016
						delivery	59250	17.0	.062
						stock_level	59251	2.11	.016
						cust_report	325904	14.9	.047
4	82222	3700	2427	2.26%	.059	new_order	8676480	383	.360
						payment	5983283	144	.187
						order_status	598328	16.4	.063
						delivery	598329	197	.203
						stock_level	598329	23.7	.063
						cust_report	3290090	167	.187
5	81522	3700	1822	26.8%	.078	new_order	8603069	480	.391
						payment	5933510	188	.391
						order_status	593351	23.0	.391
						delivery	593350	238	.391
						stock_level	593349	29.3	.391
						cust_report	3263937	207	.391
6	81550	3700	1129	38.2%	<0.01	new_order	8600390	574	.969
						payment	5931340	217	.750
						order_status	593134	25.9	.593
						delivery	593133	291	.782
						stock_level	593136	35.3	.594
						cust_report	3262286	252	.765
7	81239	3700	2504	34.1%	.026	new_order	8570092	639	1.13
						payment	5909848	284	1.33
						order_status	590985	29.2	.953
						delivery	590987	334	1.14
						stock_level	590985	38.8	.984
						cust_report	3249622	304	2.53
8	80867	3700	3441	16.8%	.020	new_order	8528234	734	1.08
						payment	5882372	326	1.38
						order_status	588237	34.9	1.38
						delivery	588242	388	1.14
						stock_level	588239	46.7	.953
						cust_report	3236536	340	2.72
