SPECjbb

SPECjbb2005		SPECjbb2005 bops = 127016, SPECjbb2005 bops/JVM = 127016
Dell PowerEdge 1955
BEA Systems, Inc. BEA JRockit(R) 5.0 P27.1.0 (build P27.1.0-7-71488-1.5.0_08-20061103-1228-windows-x86_64)

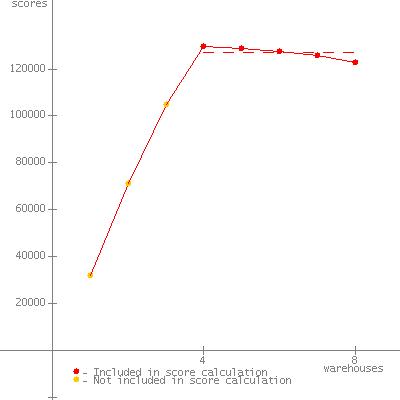

Warehouses	SPECjbb2005 bops	Incl. in metric
1	31869
2	71170
3	104979
4	129757	*
5	128862	*
6	127656	*
7	125870	*
8	122935	*
SPECjbb2005	(from 4 to 8)	127016 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell

Test date: Jan 12, 2007

Hardware

Hardware Vendor Dell

Vendor URL http://www.dell.com

Model PowerEdge 1955

Processor Intel Xeon processor 5160 (1333MHz system bus)

MHz 3000

# of Chips 2

# of Cores 4

# of Cores/Chip 2

HW Threading Enabled? No

Procs Avail to Java 4

Memory (MB) 8192

Memory Details 4 x 2GB DDR2-667 FBDIMM

Primary cache 32KB(I)+32KB(D) on chip, per cor

Secondary cache 4096KB(I+D) on chip, shared

Other cache n/a

Filesystem NTFS

Disks 1 x 72GB SAS

Other hardware none

Software

Software Vendor BEA Systems, Inc.

Vendor URL http://www.bea.com

JVM Version BEA JRockit(R) 5.0 P27.1.0 (build P27.1.0-7-71488-1.5.0_08-20061103-1228-windows-x86_64)

JVM Command Line java -Xmx3700m -Xms3700m -Xns3100m -XXaggressive -Xlargepages -XXlazyunlocking -Xgc:genpar -Xxtlasize:min=16k,preferred=64k spec.jbb.JBBmain -propfile SPECjbb.props

JVM Initial Heap Memory (MB) 3700

JVM Maximum Heap Memory (MB) 3700

JVM Address bits 64

JVM CLASSPATH .\jbb.jar;
.\check.jar;

JVM BOOTCLASSPATH c:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\bin\jrockit\jrockit1.5.0.jar;
c:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\bin\jrockit\managementapi.jar;
c:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\bin\jrockit\jmxmapi.jar;
c:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\bin\jrockit\rmp.jar;
c:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\lib\rt.jar;
c:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\lib\i18n.jar;
c:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\lib\sunrsasign.jar;
c:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\lib\jsse.jar;
c:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\lib\jce.jar;
c:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\lib\charsets.jar;
c:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\classes

OS Version Microsoft Windows Server 2003 Enterprise x64 Edition + SP1 (64-bit)

Other software none

Test Information

Tested by Dell

SPEC license # 55

Test location Round Rock, TX

Test date Jan 12, 2007

H/w available Jul-2006

JVM available Feb-2007

OS available Mar-2005

Other s/w available n/a

AOT Compilation

Tuning

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.

Notes

Disabled 'Hardware Prefetcher' in BIOS
Disabled 'Adjacent Cache Line Prefetch' in BIOS
Command line options are described in: DELL-20061108.txt

Details of Runs

Warehouses	Thrput	Total heap (MB)		Thread spread %	% > 120s	transaction type	Count	Time (in seconds)
Warehouses	Thrput	Size	Used	Thread spread %	% > 120s	transaction type	Count	total	max
1	31869	3700	3620	<0.01%	<0.01	new_order	420170	13.0	.125
						payment	289720	5.33	.016
						order_status	28972	.653	.016
						delivery	28972	3.88	.016
						stock_level	28971	.906	.016
						cust_report	159261	5.38	.016
2	71170	3700	1045	2.96%	<0.01	new_order	937876	26.4	.312
						payment	647003	10.2	.266
						order_status	64700	.930	.016
						delivery	64700	10.0	.016
						stock_level	64700	1.37	.125
						cust_report	356128	9.24	.266
3	104979	3700	2080	2.60%	<0.01	new_order	1384172	36.6	.110
						payment	954347	14.5	.110
						order_status	95435	1.46	.016
						delivery	95436	18.5	.093
						stock_level	95436	1.91	.016
						cust_report	524542	14.4	.094
4	129757	3700	888	2.06%	<0.01	new_order	13682874	388	.719
						payment	9436855	142	.469
						order_status	943685	16.0	.282
						delivery	943685	203	.719
						stock_level	943686	25.1	.344
						cust_report	5190845	158	.719
5	128862	3700	704	28.9%	.033	new_order	13594148	476	1.17
						payment	9374816	191	1.19
						order_status	937484	21.1	.375
						delivery	937483	246	.625
						stock_level	937482	30.3	.375
						cust_report	5155485	200	1.19
6	127656	3700	842	43.2%	.072	new_order	13471584	572	1.23
						payment	9290693	223	1.69
						order_status	929072	24.9	.594
						delivery	929067	299	3.50
						stock_level	929068	39.0	1.05
						cust_report	5109799	242	1.42
7	125870	3700	1023	28.9%	<0.01	new_order	13272896	663	1.39
						payment	9154211	280	1.33
						order_status	915423	29.0	.765
						delivery	915420	339	6.88
						stock_level	915422	48.1	1.17
						cust_report	5035539	278	1.42
8	122935	3700	1632	13.0%	<0.01	new_order	12963857	761	2.30
						payment	8940727	339	2.41
						order_status	894072	30.9	1.08
						delivery	894072	377	7.02
						stock_level	894072	47.4	1.03
						cust_report	4917603	310	1.92
