SPECjbb2005 SPECjbb2005 bops = 112092, SPECjbb2005 bops/JVM = 112092
Dell PowerEdge 860
BEA Systems, Inc BEA JRockit(R) 5.0 P27.1.0 (build P27.1.0-7-71488-1.5.0_08-20061103-1228-windows-x86_64)

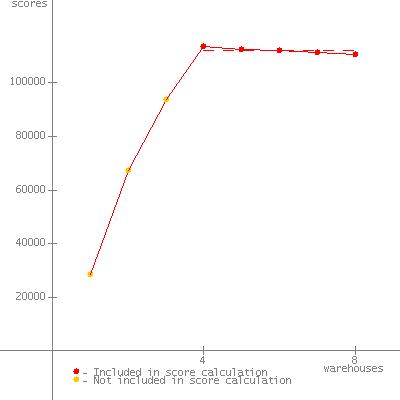

Warehouses SPECjbb2005 bops Incl. in metric
1 28272
2 67429
3 93951
4 113746 *
5 112661 *
6 112087 *
7 111206 *
8 110761 *
SPECjbb2005 (from 4 to 8) 112092 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Test date: Dec 22, 2006

Hardware
Hardware Vendor Dell
Vendor URL http://www.dell.com/
Model PowerEdge 860
Processor Intel Xeon Processor X3220 (1066MHz system bus)
MHz 2400
# of Chips 1
# of Cores 4
# of Cores/Chip 4
HW Threading Enabled? No
Procs Avail to Java 4
Memory (MB) 8192
Memory Details 4 x 2GB 533MHz DDR2 SDRAM
Primary cache 32KB(I) + 32KB(D)on chip, per core
Secondary cache 8 MB I+D on chip, per chip (4 MB shared per 2 cores)
Other cache n/a
Filesystem NTFS
Disks 1 x 73GB SAS
Other hardware none
Software
Software Vendor BEA Systems, Inc
Vendor URL http://www.bea.com/
JVM Version BEA JRockit(R) 5.0 P27.1.0 (build P27.1.0-7-71488-1.5.0_08-20061103-1228-windows-x86_64)
JVM Command Line java -Xms3700m -Xmx3700m -Xgc:genpar -Xns3100m -XXaggressive -Xlargepages -XXlazyunlocking -XXtlasize:min=16k,preferred=64k spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 3700
JVM Maximum Heap Memory (MB) 3700
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\bin\jrockit\jrockit1.5.0.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\bin\jrockit\managementapi.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\bin\jrockit\jmxmapi.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\bin\jrockit\rmp.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\lib\rt.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\lib\i18n.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\lib\sunrsasign.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\lib\jsse.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\lib\jce.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\lib\charsets.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\classes
OS Version Microsoft Windows Server 2003 Enterprise x64 Edition + SP1 (64-bit)
Other software none
Test Information
Tested by Dell
SPEC license # 55
Test location Round Rock, TX
Test date Dec 22, 2006
H/w available Jan-2007
JVM available Feb-2007
OS available Mar-2005
Other s/w available n/a
AOT Compilation
n/a
Tuning
  • Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Notes
  • Disabled 'Hardware Prefetcher' in BIOS
  • Disabled 'Adjacent Cache Line Prefetch' in BIOS
  • Command line options are described in: DELL-20061108.txt

Details of Runs

Warehouses Thrput Total heap (MB) Thread spread % % > 120s transaction type Count Time (in seconds)
SizeUsed totalmax
1 28272 3700 1748 <0.01% <0.01 new_order 372653 12.2 .016
payment 257021 5.50 .344
order_status 25701 .658 .016
delivery 25703 4.68 .016
stock_level 25702 .847 .016
cust_report 141387 4.97 .016
2 67429 3700 2268 .223% <0.01 new_order 888736 23.8 .125
payment 612994 11.1 .062
order_status 61300 1.21 .016
delivery 61300 9.94 .016
stock_level 61299 1.19 .016
cust_report 337250 10.8 .125
3 93951 3700 1403 8.26% <0.01 new_order 1238192 37.1 .141
payment 854094 14.0 .031
order_status 85410 1.57 .016
delivery 85410 17.7 .031
stock_level 85410 2.13 .031
cust_report 470013 14.8 .031
4 113746 3700 2001 1.49% .033 new_order 11998125 377 .125
payment 8275149 138 .203
order_status 827516 17.5 .047
delivery 827514 212 .187
stock_level 827514 25.3 .047
cust_report 4552179 162 .125
5 112661 3700 3405 33.8% <0.01 new_order 11882060 477 .469
payment 8193558 174 .750
order_status 819355 19.7 .375
delivery 819357 253 .797
stock_level 819354 28.3 .375
cust_report 4505052 209 .579
6 112087 3700 1847 40.1% <0.01 new_order 11820092 565 .766
payment 8151783 234 .781
order_status 815178 22.8 .750
delivery 815179 301 5.75
stock_level 815177 37.9 .579
cust_report 4483478 239 .766
7 111206 3700 1200 47.4% <0.01 new_order 11729253 656 .750
payment 8088207 266 .813
order_status 808819 30.8 1.25
delivery 808821 354 3.52
stock_level 808820 44.4 .734
cust_report 4447166 282 .750
8 110761 3700 2414 23.7% <0.01 new_order 11678508 751 1.14
payment 8055350 319 1.50
order_status 805534 32.5 .735
delivery 805534 406 5.89
stock_level 805537 47.8 .531
cust_report 4432203 312 .609

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005 SPEC. All rights reserved

First published at SPEC.org on 17-Jan-2007
