SPECjbb

SPECjbb2005		SPECjbb2005 bops = 1085985, SPECjbb2005 bops/JVM = 67874
SGI Altix 4700 (16 Blade/32P DC)
BEA Systems BEA JRockit(R) 5.0 P27.1.0-12 (build P27.1.0-12-72483-1.5.0_09-20061117-1835-linux-ia64)

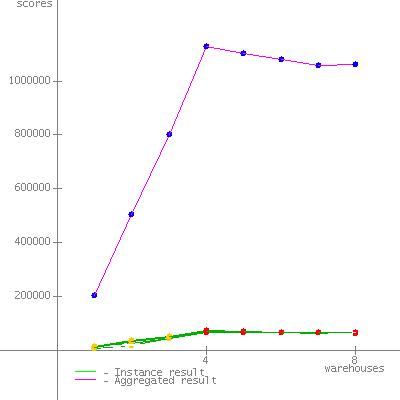

JVM run JVM Scores

1 67063

2 68063

3 68350

4 67861

5 69112

6 67540

7 67879

8 68326

9 68388

10 67773

11 66205

12 67889

13 67878

14 67234

15 67962

16 68462

SPECjbb2005 bops = 1085985, SPECjbb2005 bops/JVM = 67874

Hardware

Hardware Vendor SGI

Vendor URL http://www.sgi.com

Model Altix 4700 (16 Blade/32P DC)

Processor Intel DC Itanium2 Processor 9050 1.6 Ghz

MHz 1600

# of Chips 32

# of Cores 64

# of Cores/Chip 2

HW Threading Enabled? No

Procs Avail to Java 64

Memory (MB) 131072

Memory Details 1GB ECC DDR2 DIMMs (PC2-3200R) spread uniformly over 16 compute blades

Primary cache 16kBI + 16kBD on chip per core

Secondary cache 1024kBI + 256kBD on chip per core

Other cache 12MB (I+D) on chip per core

Filesystem xfs

Disks 1 x 146 GB SCSI (OS + classes)

Other hardware

Software

Software Vendor BEA Systems

Vendor URL http://www.bea.com

JVM Version BEA JRockit(R) 5.0 P27.1.0-12 (build P27.1.0-12-72483-1.5.0_09-20061117-1835-linux-ia64)

JVM Command Line numactl --cpubind=$node --localalloc java -Xms3800m -Xmx3800m -Xns3200m -XXaggressive -Xgc:genpar -XXtlasize:512k -XXhpm:enable -cp jbb.jar:check.jar spec.jbb.JBBmain -propfile SPECjbb.props -id $id

JVM Initial Heap Memory (MB) 3800

JVM Maximum Heap Memory (MB) 3800

JVM Address bits 64

JVM CLASSPATH jbb.jar:
check.jar

JVM BOOTCLASSPATH /tmp/jrockit-jdk1.5.0_09/jre/lib/ia64/jrockit/jrockit1.5.0.jar:
/tmp/jrockit-jdk1.5.0_09/jre/lib/ia64/jrockit/managementapi.jar:
/tmp/jrockit-jdk1.5.0_09/jre/lib/ia64/jrockit/jmxmapi.jar:
/tmp/jrockit-jdk1.5.0_09/jre/lib/ia64/jrockit/rmp.jar:
/tmp/jrockit-jdk1.5.0_09/jre/lib/rt.jar:
/tmp/jrockit-jdk1.5.0_09/jre/lib/i18n.jar:
/tmp/jrockit-jdk1.5.0_09/jre/lib/sunrsasign.jar:
/tmp/jrockit-jdk1.5.0_09/jre/lib/jsse.jar:
/tmp/jrockit-jdk1.5.0_09/jre/lib/jce.jar:
/tmp/jrockit-jdk1.5.0_09/jre/lib/charsets.jar:
/tmp/jrockit-jdk1.5.0_09/jre/classes

OS Version SuSE Linux Enterprise Server 10 (2.6.16.21-0.25-default)

Other software

Test Information

Tested by SGI

SPEC license # 4

Test location Mountain View, CA

Test date Nov 19, 2006

H/w available July-2006

JVM available February-2007

OS available Oct-2006

Other s/w available

AOT Compilation

Tuning

Operating system tunings
mount -t hugetlbfs nodev /mnt/hugepages
echo 320 > /proc/sys/vm/nr_hugepages

Notes

Command line options are described at http://e-docs.bea.com/jrockit/jrdocs/refman/index.html
System configured to use one JVM per NUMA node (4 cores).

JVM 1 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	15471
2	34884
3	52364
4	68381	*
5	67594	*
6	66510	*
7	66185	*
8	66644	*
SPECjbb2005	(from 4 to 8)	67063 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Nov 19, 2006

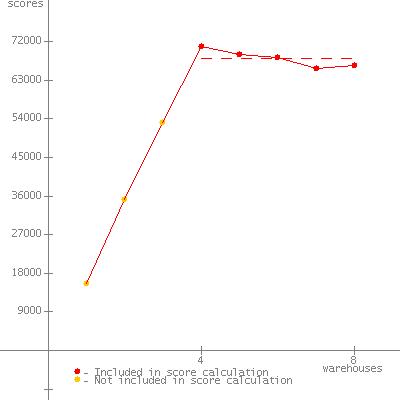

JVM 2 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	15614
2	35304
3	53068
4	70914	*
5	68986	*
6	68307	*
7	65668	*
8	66439	*
SPECjbb2005	(from 4 to 8)	68063 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Nov 19, 2006

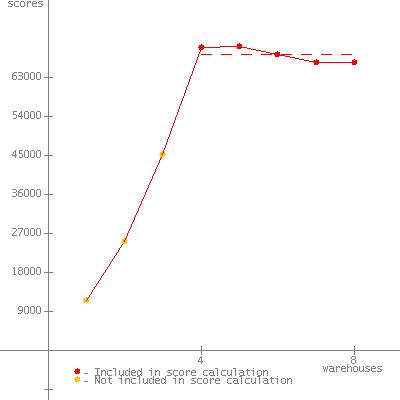

JVM 3 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	11571
2	25250
3	45301
4	69946	*
5	70321	*
6	68499	*
7	66486	*
8	66498	*
SPECjbb2005	(from 4 to 8)	68350 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Nov 19, 2006

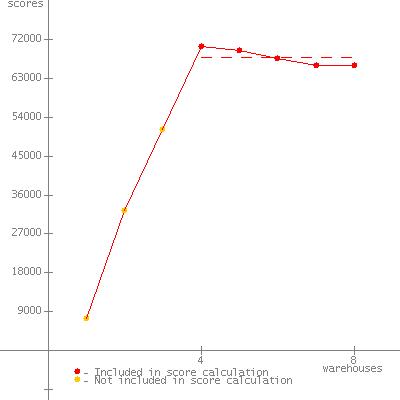

JVM 4 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	7529
2	32503
3	51244
4	70453	*
5	69403	*
6	67627	*
7	65950	*
8	65871	*
SPECjbb2005	(from 4 to 8)	67861 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Nov 19, 2006

JVM 5 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	16117
2	37380
3	52573
4	72998	*
5	69781	*
6	68711	*
7	66933	*
8	67139	*
SPECjbb2005	(from 4 to 8)	69112 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Nov 19, 2006

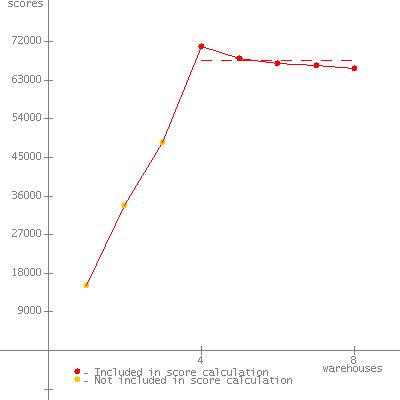

JVM 6 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	15183
2	33813
3	48465
4	70898	*
5	67923	*
6	66944	*
7	66295	*
8	65640	*
SPECjbb2005	(from 4 to 8)	67540 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Nov 19, 2006

JVM 7 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	7563
2	17203
3	43422
4	69718	*
5	68213	*
6	67375	*
7	66804	*
8	67283	*
SPECjbb2005	(from 4 to 8)	67879 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Nov 19, 2006

JVM 8 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	16008
2	36039
3	51987
4	71190	*
5	69265	*
6	68175	*
7	66482	*
8	66514	*
SPECjbb2005	(from 4 to 8)	68326 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Nov 19, 2006

JVM 9 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	16067
2	36855
3	52767
4	71286	*
5	69602	*
6	67521	*
7	67073	*
8	66456	*
SPECjbb2005	(from 4 to 8)	68388 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Nov 19, 2006

JVM 10 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	7469
2	33971
3	50410
4	70262	*
5	69321	*
6	66992	*
7	65968	*
8	66324	*
SPECjbb2005	(from 4 to 8)	67773 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Nov 19, 2006

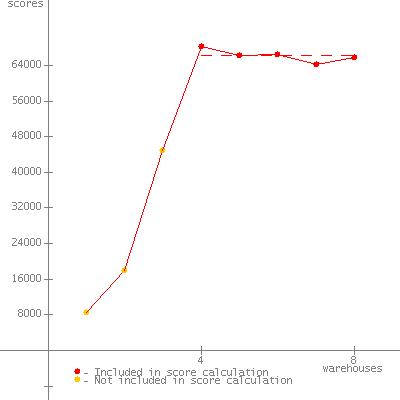

JVM 11 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	8595
2	17973
3	44860
4	68311	*
5	66169	*
6	66430	*
7	64251	*
8	65862	*
SPECjbb2005	(from 4 to 8)	66205 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Nov 19, 2006

JVM 12 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	15947
2	36113
3	52810
4	71140	*
5	69579	*
6	67086	*
7	66004	*
8	65635	*
SPECjbb2005	(from 4 to 8)	67889 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Nov 19, 2006

JVM 13 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	15745
2	37075
3	52732
4	71280	*
5	69001	*
6	66992	*
7	66127	*
8	65991	*
SPECjbb2005	(from 4 to 8)	67878 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Nov 19, 2006

JVM 14 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	7535
2	18805
3	45496
4	69973	*
5	68039	*
6	67735	*
7	65690	*
8	64734	*
SPECjbb2005	(from 4 to 8)	67234 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Nov 19, 2006

JVM 15 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	16142
2	35924
3	52538
4	69896	*
5	69529	*
6	67677	*
7	65983	*
8	66728	*
SPECjbb2005	(from 4 to 8)	67962 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Nov 19, 2006

JVM 16 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	11709
2	35504
3	53100
4	72210	*
5	69163	*
6	68094	*
7	66452	*
8	66393	*
SPECjbb2005	(from 4 to 8)	68462 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Nov 19, 2006
