SPECjbb

SPECjbb2005		SPECjbb2005 bops = 130589, SPECjbb2005 bops/JVM = 130589
Dell PowerEdge 2950
BEA Systems, Inc. BEA JRockit(R) 5.0 P27.1.0 (build P27.1.0-7-71488-1.5.0_08-20061103-1228-windows-x86_64)

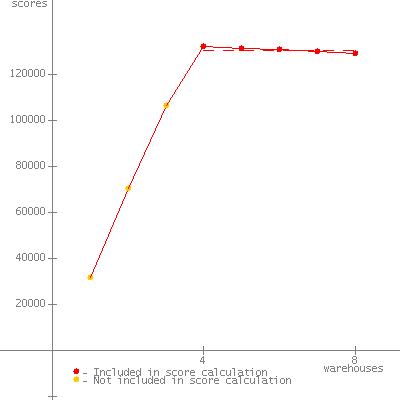

Warehouses	SPECjbb2005 bops	Incl. in metric
1	31861
2	70652
3	106534
4	132278	*
5	131073	*
6	130780	*
7	129751	*
8	129063	*
SPECjbb2005	(from 4 to 8)	130589 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell

Test date: Nov 7, 2006

Hardware

Hardware Vendor Dell

Vendor URL http://www.dell.com/

Model PowerEdge 2950

Processor Intel Xeon processor 5160 (1333MHz system bus)

MHz 3000

# of Chips 2

# of Cores 4

# of Cores/Chip 2

HW Threading Enabled? No

Procs Avail to Java 4

Memory (MB) 16384

Memory Details 4 x 4GB DDR2-667 FBDIMM

Primary cache 32KB(I) + 32KB(D) on chip, per core

Secondary cache 4096KB(I+D) on chip, shared

Other cache n/a

Filesystem NTFS

Disks 1 x 80GB SATA

Other hardware none

Software

Software Vendor BEA Systems, Inc.

Vendor URL http://www.bea.com/

JVM Version BEA JRockit(R) 5.0 P27.1.0 (build P27.1.0-7-71488-1.5.0_08-20061103-1228-windows-x86_64)

JVM Command Line java -Xmx3700m -Xms3700m -Xns3100m -XXaggressive -Xlargepages -XXlazyunlocking -Xgc:genpar -Xxtlasize:min=16k,preferred=64k spec.jbb.JBBmain -propfile SPECjbb.props

JVM Initial Heap Memory (MB) 3700

JVM Maximum Heap Memory (MB) 3700

JVM Address bits 64

JVM CLASSPATH .\jbb.jar;
.\check.jar;

JVM BOOTCLASSPATH C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\bin\jrockit\jrockit1.5.0.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\bin\jrockit\managementapi.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\bin\jrockit\jmxmapi.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\bin\jrockit\rmp.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\lib\rt.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\lib\i18n.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\lib\sunrsasign.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\lib\jsse.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\lib\jce.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\lib\charsets.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\classes

OS Version Microsoft Windows Server 2003 Enterprise x64 Edition + SP1 (64-bit)

Other software none

Test Information

Tested by Dell

SPEC license # 55

Test location Round Rock, TX

Test date Nov 7, 2006

H/w available Jul-2006

JVM available Feb-2007

OS available Mar-2005

Other s/w available n/a

AOT Compilation

Tuning

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.

Notes

Disabled 'Hardware Prefetcher' in BIOS
Disabled 'Adjacent Cache Line Prefetch' in BIOS
Command line options are described in: DELL-20061108.txt

Details of Runs

Warehouses	Thrput	Total heap (MB)		Thread spread %	% > 120s	transaction type	Count	Time (in seconds)
Warehouses	Thrput	Size	Used	Thread spread %	% > 120s	transaction type	Count	total	max
1	31861	3700	2520	<0.01%	<0.01	new_order	420247	13.7	.328
						payment	289792	5.38	.016
						order_status	28979	.612	.016
						delivery	28978	3.90	.016
						stock_level	28978	.654	.016
						cust_report	159343	4.89	.016
2	70652	3700	1312	1.28%	<0.01	new_order	931425	24.9	.125
						payment	642290	11.0	.047
						order_status	64228	1.09	.125
						delivery	64230	10.3	.094
						stock_level	64230	1.43	.016
						cust_report	353161	9.35	.032
3	106534	3700	3053	3.40%	<0.01	new_order	1405333	36.3	.125
						payment	969010	14.2	.047
						order_status	96901	1.49	.016
						delivery	96901	17.7	.125
						stock_level	96900	2.41	.031
						cust_report	532693	15.1	.032
4	132278	3700	2753	.909%	.072	new_order	13958942	387	.110
						payment	9627101	137	.110
						order_status	962710	17.3	.047
						delivery	962709	210	.078
						stock_level	962709	24.0	.047
						cust_report	5295255	158	.047
5	131073	3700	2871	21.0%	.013	new_order	13824175	479	.391
						payment	9533838	180	.766
						order_status	953384	20.7	.375
						delivery	953383	258	.578
						stock_level	953385	30.1	.375
						cust_report	5243507	197	.391
6	130780	3700	2755	29.7%	<0.01	new_order	13793401	564	.984
						payment	9511913	221	.750
						order_status	951192	28.2	1.41
						delivery	951190	307	.765
						stock_level	951191	37.8	.594
						cust_report	5230438	243	1.08
7	129751	3700	1238	22.8%	<0.01	new_order	13683313	652	1.24
						payment	9436468	265	1.23
						order_status	943647	33.6	1.67
						delivery	943645	349	3.11
						stock_level	943647	43.7	.766
						cust_report	5189618	291	.953
8	129063	3700	3654	10.9%	<0.01	new_order	13611953	752	1.13
						payment	9387005	318	1.17
						order_status	938701	35.9	1.14
						delivery	938698	396	3.72
						stock_level	938701	49.4	1.00
						cust_report	5162050	320	2.06
