SPECjbb

SPECjbb2005		SPECjbb2005 bops = 102593, SPECjbb2005 bops/JVM = 102593
Dell PowerEdge 2950
BEA Systems, Inc BEA JRockit(R) (build P26.4.0-10-62459-1.5.0_06-20060529-2101-win-x86_64)

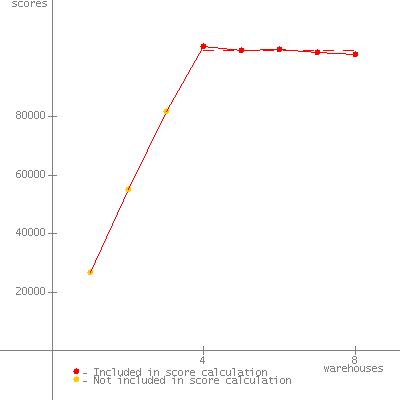

Warehouses	SPECjbb2005 bops	Incl. in metric
1	26730
2	55058
3	81677
4	104120	*
5	102656	*
6	102989	*
7	101884	*
8	101315	*
SPECjbb2005	(from 4 to 8)	102593 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell

Test date: Sep 29, 2006

Hardware

Hardware Vendor Dell

Vendor URL http://www.dell.com

Model PowerEdge 2950

Processor Intel Xeon processor 5160 (1333MHz system bus)

MHz 3000

# of Chips 2

# of Cores 4

# of Cores/Chip 2

HW Threading Enabled? No

Procs Avail to Java 4

Memory (MB) 16384

Memory Details 4 x 4GB DDR2-667 FBDIMM

Primary cache 32KB(I) + 32KB(D) on chip, per core

Secondary cache 4096KB(I+D) on chip, shared

Other cache n/a

Filesystem NTFS

Disks 1 x 80GB SATA

Other hardware none

Software

Software Vendor BEA Systems, Inc

Vendor URL http://www.bea.com

JVM Version BEA JRockit(R) (build P26.4.0-10-62459-1.5.0_06-20060529-2101-win-x86_64)

JVM Command Line java -Xms3700m -Xmx3700m -XXaggressive -XXthroughputcompaction -XXallocprefetch -XXallocRedoPrefetch -XXcompressedRefs -XXlazyUnlocking -XXtlasize128k spec.jbb.JBBmain -propfile SPECjbb.props

JVM Initial Heap Memory (MB) 3700

JVM Maximum Heap Memory (MB) 3700

JVM Address bits 64

JVM CLASSPATH .\jbb.jar;
.\check.jar;

JVM BOOTCLASSPATH C:\SPECjbb2005\jrockit-jdk1.5.0_06\jre\bin\jrockit\jrockit.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_06\jre\bin\jrockit\managementapi.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_06\jre\lib\managementapi.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_06\jre\lib\rt.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_06\jre\lib\i18n.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_06\jre\lib\sunrsasign.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_06\jre\lib\jsse.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_06\jre\lib\jce.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_06\jre\lib\charsets.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_06\jre\classes

OS Version Microsoft Windows Server 2003 Enterprise x64 Edition + SP1 (64-bit)

Other software none

Test Information

Tested by Dell

SPEC license # 55

Test location Round Rock, TX

Test date Sep 29, 2006

H/w available Jul-2006

JVM available Jun-2006

OS available Mar-2005

Other s/w available n/a

AOT Compilation

Tuning

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.

Notes

Disabled 'Hardware Prefetcher' in BIOS
Disabled 'Adjacent Cache Line Prefetch' in BIOS
Command line options are described at:
http://edocs.bea.com/jrockit/jrdocs/refman/intro.html

Details of Runs

Warehouses	Thrput	Total heap (MB)		Thread spread %	% > 120s	transaction type	Count	Time (in seconds)
Warehouses	Thrput	Size	Used	Thread spread %	% > 120s	transaction type	Count	total	max
1	26730	3700	904	<0.01%	<0.01	new_order	352831	13.1	.109
						payment	243250	5.08	.187
						order_status	24325	.512	.016
						delivery	24324	5.31	.016
						stock_level	24325	.799	.016
						cust_report	133670	4.62	.016
2	55058	3700	2722	2.77%	<0.01	new_order	726594	26.2	.234
						payment	501059	9.63	.187
						order_status	50106	.925	.016
						delivery	50106	11.7	.110
						stock_level	50106	1.41	.016
						cust_report	275525	8.76	.110
3	81677	3700	1737	1.78%	<0.01	new_order	1077287	38.8	.218
						payment	743284	13.3	.141
						order_status	74329	1.59	.203
						delivery	74330	19.3	.016
						stock_level	74329	1.73	.016
						cust_report	409283	13.3	.218
4	104120	3700	2903	4.28%	.059	new_order	10986834	388	.344
						payment	7576807	137	.281
						order_status	757682	15.9	.141
						delivery	757681	233	.344
						stock_level	757681	21.5	.313
						cust_report	4166780	141	.328
5	102656	3700	678	25.4%	.039	new_order	10830519	488	.734
						payment	7468785	176	.421
						order_status	746877	20.6	.375
						delivery	746877	285	.563
						stock_level	746877	27.5	.390
						cust_report	4107038	176	.563
6	102989	3700	3464	29.6%	.059	new_order	10867346	582	1.33
						payment	7494487	219	.750
						order_status	749451	24.0	.594
						delivery	749448	331	1.17
						stock_level	749448	30.3	.781
						cust_report	4121628	219	.609
7	101884	3700	2628	31.6%	.045	new_order	10749048	667	1.05
						payment	7413120	268	1.11
						order_status	741310	28.9	.859
						delivery	741314	388	1.14
						stock_level	741314	39.1	1.09
						cust_report	4077202	256	2.33
8	101315	3700	2053	17.9%	.104	new_order	10695599	760	1.16
						payment	7376049	327	1.30
						order_status	737605	32.3	1.02
						delivery	737605	437	3.11
						stock_level	737605	52.0	6.38
						cust_report	4056506	274	1.11
