SPECjbb

SPECjbb2005		SPECjbb2005 bops = 100590, SPECjbb2005 bops/JVM = 100590
Fujitsu Siemens Computers PRIMERGY TX300 S3, Intel Xeon 5160 processor, 3.0 GHz
BEA Systems, Inc BEA JRockit(R) 5.0 P26.4.0 (build P26.4.0-10-62459-1.5.0_06-20060529-2101-win-x86_64)

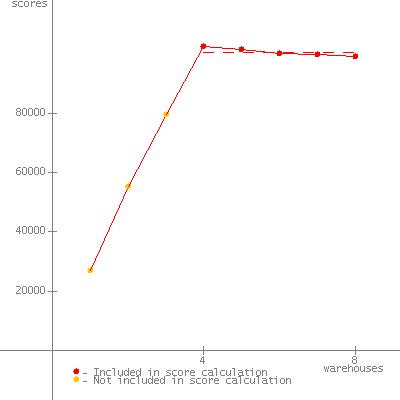

Warehouses	SPECjbb2005 bops	Incl. in metric
1	26929
2	55174
3	79530
4	102564	*
5	101379	*
6	100110	*
7	99916	*
8	98980	*
SPECjbb2005	(from 4 to 8)	100590 SPECjbb2005 bops

SPEC license # 22

Tested by: Fujitsu Siemens Computers

Test date: Jun 23, 2006

Hardware

Hardware Vendor Fujitsu Siemens Computers

Vendor URL http://www.fujitsu-siemens.com

Model PRIMERGY TX300 S3, Intel Xeon 5160 processor, 3.0 GHz

Processor Intel Xeon 5160 processor (3.0 GHz, 4MB L2, 1333 MHz system bus)

MHz 3000

# of Chips 2

# of Cores 4

# of Cores/Chip 2

HW Threading Enabled? N/A

Procs Avail to Java 4

Memory (MB) 8192

Memory Details 8x1GB DDRII-RAM PC2-5300F (CAS 5-5-5)

Primary cache 32KBI + 32KBD on chip, per core

Secondary cache 4MB(I+D) on chip, shared

Other cache n/a

Filesystem NTFS

Disks Seagate ST373454SS (SAS, 15krpm, 73GB)

Other hardware none

Software

Software Vendor BEA Systems, Inc

Vendor URL http://www.bea.com

JVM Version BEA JRockit(R) 5.0 P26.4.0 (build P26.4.0-10-62459-1.5.0_06-20060529-2101-win-x86_64)

JVM Command Line java -Xms3700m -Xmx3700m -XXaggressive -XXthroughputCompaction -XXallocPrefetch -XXallocRedoPrefetch -XXcompressedRefs -XXlazyUnlocking -XXtlasize128k spec.jbb.JBBmain -propfile SPECjbb.props

JVM Initial Heap Memory (MB) 3700

JVM Maximum Heap Memory (MB) 3700

JVM Address bits 64

JVM CLASSPATH .\jbb.jar;
.\check.jar;

JVM BOOTCLASSPATH C:\Program Files\JVM\jrockit-jdk1.5.0_06\jre\bin\jrockit\jrockit.jar;
C:\Program Files\JVM\jrockit-jdk1.5.0_06\jre\bin\jrockit\managementapi.jar;
C:\Program Files\JVM\jrockit-jdk1.5.0_06\jre\lib\managementapi.jar;
C:\Program Files\JVM\jrockit-jdk1.5.0_06\jre\lib\rt.jar;
C:\Program Files\JVM\jrockit-jdk1.5.0_06\jre\lib\i18n.jar;
C:\Program Files\JVM\jrockit-jdk1.5.0_06\jre\lib\sunrsasign.jar;
C:\Program Files\JVM\jrockit-jdk1.5.0_06\jre\lib\jsse.jar;
C:\Program Files\JVM\jrockit-jdk1.5.0_06\jre\lib\jce.jar;
C:\Program Files\JVM\jrockit-jdk1.5.0_06\jre\lib\charsets.jar;
C:\Program Files\JVM\jrockit-jdk1.5.0_06\jre\classes

OS Version Microsoft Windows Server 2003 Enterprise x64 Edition + SP1 (64-bit)

Other software none

Test Information

Tested by Fujitsu Siemens Computers

SPEC license # 22

Test location Paderborn, Germany

Test date Jun 23, 2006

H/w available Jul-2006

JVM available Jun-2006

OS available Mar-2005

Other s/w available n/a

AOT Compilation

Tuning

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.

Notes

turned off 'Hardware Prefetching' in BIOS
turned off 'Adjacent Sector Prefetching' in BIOS
Command line options are described at:
http://edocs.bea.com/jrockit/jrdocs/refman/intro.html

Details of Runs

Warehouses	Thrput	Total heap (MB)		Thread spread %	% > 120s	transaction type	Count	Time (in seconds)
Warehouses	Thrput	Size	Used	Thread spread %	% > 120s	transaction type	Count	total	max
1	26929	3700	902	<0.01%	<0.01	new_order	355126	14.2	.078
						payment	244941	4.83	.016
						order_status	24494	.560	.016
						delivery	24494	4.41	.016
						stock_level	24494	.692	.016
						cust_report	134755	4.68	.063
2	55174	3700	2698	1.90%	<0.01	new_order	727258	26.8	.265
						payment	501830	9.52	.047
						order_status	50183	.828	.016
						delivery	50183	11.2	.016
						stock_level	50183	1.22	.078
						cust_report	276402	9.32	.265
3	79530	3700	966	5.89%	<0.01	new_order	1048504	39.3	.219
						payment	723382	13.0	.203
						order_status	72338	1.23	.016
						delivery	72337	20.0	.109
						stock_level	72338	1.71	.016
						cust_report	398261	13.0	.219
4	102564	3700	1222	4.24%	.059	new_order	10822377	393	.531
						payment	7463614	135	.500
						order_status	746361	16.5	.156
						delivery	746361	231	.203
						stock_level	746362	21.7	.187
						cust_report	4104846	141	.281
5	101379	3700	1264	25.6%	.078	new_order	10699367	496	.671
						payment	7378739	172	.750
						order_status	737874	19.1	.562
						delivery	737875	284	.938
						stock_level	737875	27.3	.422
						cust_report	4058116	178	.391
6	100110	3700	1333	33.0%	.091	new_order	10566847	570	.937
						payment	7287395	220	.750
						order_status	728741	26.5	.922
						delivery	728738	341	1.45
						stock_level	728742	37.3	.922
						cust_report	4007949	213	.750
7	99916	3700	1370	26.3%	.033	new_order	10539472	666	1.16
						payment	7269001	267	1.13
						order_status	726901	26.3	.750
						delivery	726898	405	2.95
						stock_level	726901	33.9	.765
						cust_report	3998551	250	1.59
8	98980	3700	3639	12.4%	.033	new_order	10440560	775	1.27
						payment	7200868	323	1.49
						order_status	720087	28.8	1.13
						delivery	720086	434	1.81
						stock_level	720083	41.4	1.17
						cust_report	3961178	274	2.64
