SPECjbb

SPECjbb2005		SPECjbb2005 bops = 102099, SPECjbb2005 bops/JVM = 102099
Dell PowerEdge 2950
BEA Systems, Inc BEA JRockit(R) 5.0 P26.4.0 (build P26.4.0-8-61900-1.5.0_06-20060516-1454-win-x86_64)

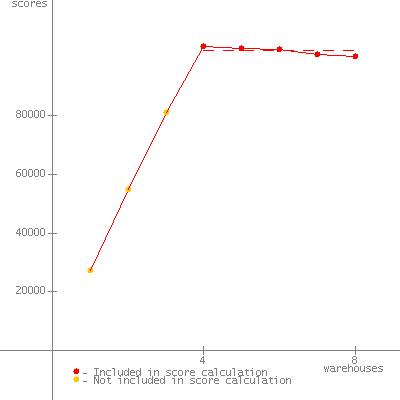

Warehouses	SPECjbb2005 bops	Incl. in metric
1	27320
2	54792
3	81144
4	103730	*
5	102990	*
6	102601	*
7	100985	*
8	100190	*
SPECjbb2005	(from 4 to 8)	102099 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell

Test date: Jun 28, 2006

Hardware

Hardware Vendor Dell

Vendor URL http://www.dell.com

Model PowerEdge 2950

Processor Intel Xeon processor 5160 (1333MHz system bus)

MHz 3000

# of Chips 2

# of Cores 4

# of Cores/Chip 2

HW Threading Enabled? No

Procs Avail to Java 4

Memory (MB) 8192

Memory Details 8 x 1GB DDR2-667 FBDIMM

Primary cache 32KB(I) + 32KB(D) on chip, per core

Secondary cache 4096KB(I+D) on chip, shared

Other cache n/a

Filesystem NTFS

Disks 1 x 80GB SATA

Other hardware none

Software

Software Vendor BEA Systems, Inc

Vendor URL http://www.bea.com

JVM Version BEA JRockit(R) 5.0 P26.4.0 (build P26.4.0-8-61900-1.5.0_06-20060516-1454-win-x86_64)

JVM Command Line java -Xms3700m -Xmx3700m -XXaggressive -XXthroughputcompaction -XXallocprefetch -XXallocRedoPrefetch -XXcompressedRefs -XXlazyUnlocking -XXtlasize128k spec.jbb.JBBmain -propfile SPECjbb.props

JVM Initial Heap Memory (MB) 3700

JVM Maximum Heap Memory (MB) 3700

JVM Address bits 64

JVM CLASSPATH .\jbb.jar;
.\check.jar;

JVM BOOTCLASSPATH C:\SPECjbb2005\jrockit-jdk1.5.0_06\jre\bin\jrockit\jrockit.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_06\jre\bin\jrockit\managementapi.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_06\jre\lib\managementapi.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_06\jre\lib\rt.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_06\jre\lib\i18n.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_06\jre\lib\sunrsasign.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_06\jre\lib\jsse.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_06\jre\lib\jce.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_06\jre\lib\charsets.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_06\jre\classes

OS Version Microsoft Windows Server 2003 Enterprise x64 Edition + SP1 (64-bit)

Other software none

Test Information

Tested by Dell

SPEC license # 55

Test location Round Rock, TX

Test date Jun 28, 2006

H/w available Jul-2006

JVM available Aug-2006

OS available Mar-2005

Other s/w available n/a

AOT Compilation

Tuning

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.

Notes

Disabled 'Hardware Prefetcher' in BIOS
Disabled 'Adjacent Cache Line Prefetch' in BIOS
Command line options are described at:
http://edocs.bea.com/jrockit/jrdocs/refman/intro.html

Details of Runs

Warehouses	Thrput	Total heap (MB)		Thread spread %	% > 120s	transaction type	Count	Time (in seconds)
Warehouses	Thrput	Size	Used	Thread spread %	% > 120s	transaction type	Count	total	max
1	27320	3700	1191	<0.01%	<0.01	new_order	360175	13.4	.016
						payment	248621	5.14	.109
						order_status	24862	.580	.016
						delivery	24862	5.03	.016
						stock_level	24862	.652	.016
						cust_report	137064	4.52	.016
2	54792	3700	2846	2.45%	<0.01	new_order	723099	25.7	.156
						payment	498371	10.6	.172
						order_status	49837	.891	.016
						delivery	49836	11.9	.062
						stock_level	49837	1.28	.016
						cust_report	273642	8.44	.016
3	81144	3700	1759	3.97%	<0.01	new_order	1070216	39.6	.219
						payment	738059	13.3	.188
						order_status	73806	1.56	.016
						delivery	73806	18.5	.016
						stock_level	73807	2.01	.016
						cust_report	405911	13.3	.188
4	103730	3700	1224	4.00%	.085	new_order	10946773	392	.406
						payment	7550407	132	.297
						order_status	755042	15.8	.156
						delivery	755041	236	.390
						stock_level	755041	22.3	.406
						cust_report	4154050	140	.406
5	102990	3700	1753	27.8%	.039	new_order	10865232	477	.437
						payment	7493085	181	.469
						order_status	749307	20.2	.390
						delivery	749310	291	.468
						stock_level	749310	27.9	.375
						cust_report	4120950	178	.391
6	102601	3700	3382	29.3%	.052	new_order	10825076	580	.922
						payment	7465770	209	.625
						order_status	746576	21.5	.579
						delivery	746579	348	.782
						stock_level	746578	37.1	.765
						cust_report	4106457	212	.766
7	100985	3700	3611	26.1%	.026	new_order	10652159	679	1.44
						payment	7346278	265	.954
						order_status	734627	25.5	.579
						delivery	734627	386	1.44
						stock_level	734630	35.7	.766
						cust_report	4040393	251	2.23
8	100190	3700	3646	24.4%	.026	new_order	10567935	777	1.33
						payment	7288403	298	1.31
						order_status	728839	34.8	1.44
						delivery	728840	440	1.30
						stock_level	728839	46.0	2.91
						cust_report	4008860	280	1.23
