SPECjbb2005 SPECjbb2005 bops = 114941, SPECjbb2005 bops/JVM = 114941
IBM Corporation IBM System x3650
IBM Corporation IBM 32-bit Runtime Environment for Windows, Java 2 Technology Edition, Version 5.0 (build j9vmwi3224-20060617)

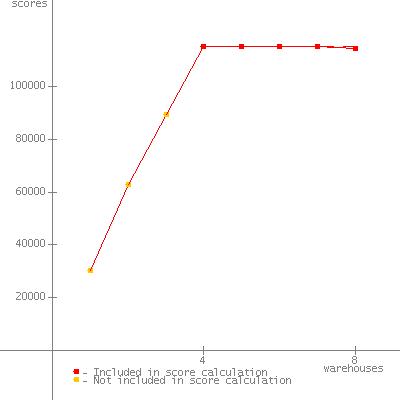

Warehouses SPECjbb2005 bops Incl. in metric
1 30472
2 62750
3 89316
4 115067 *
5 115173 *
6 115167 *
7 114945 *
8 114351 *
SPECjbb2005 (from 4 to 8) 114941 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 23, 2006

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM System x3650
Processor Intel Xeon Processor 5160 (3.0 GHz)
MHz 3000
# of Chips 2
# of Cores 4
# of Cores/Chip 2
HW Threading Enabled? No
Procs Avail to Java 4
Memory (MB) 8192 GB
Memory Details 8 x 1024 GB PC2 5300 Fully Buffered DIMMs
Primary cache 32KB(I) + 32KB(D) on chip, per core
Secondary cache 4096KB(I+D) on chip, shared
Other cache
Filesystem NTFS
Disks 1 x 36GB SCSI 15k RPM SAS
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM 32-bit Runtime Environment for Windows, Java 2 Technology Edition, Version 5.0 (build j9vmwi3224-20060617)
JVM Command Line java -Xlp -Xgcpolicy:gencon -Xms1500m -Xmx1500m -Xmn1250m -Xnoloa -XtlhPrefetch -XlockReservation -Xjvm:perf
JVM Initial Heap Memory (MB) 1500
JVM Maximum Heap Memory (MB) 1500
JVM Address bits 32
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH c:\ibm\jre\lib\vm.jar;
c:\ibm\jre\lib\core.jar;
c:\ibm\jre\lib\charsets.jar;
c:\ibm\jre\lib\graphics.jar;
c:\ibm\jre\lib\security.jar;
c:\ibm\jre\lib\ibmpkcs.jar;
c:\ibm\jre\lib\ibmorb.jar;
c:\ibm\jre\lib\ibmcfw.jar;
c:\ibm\jre\lib\ibmorbapi.jar;
c:\ibm\jre\lib\ibmjcefw.jar;
c:\ibm\jre\lib\ibmjgssprovider.jar;
c:\ibm\jre\lib\ibmjsseprovider2.jar;
c:\ibm\jre\lib\ibmjaaslm.jar;
c:\ibm\jre\lib\ibmjaasactivelm.jar;
c:\ibm\jre\lib\ibmcertpathprovider.jar;
c:\ibm\jre\lib\server.jar;
c:\ibm\jre\lib\xml.jar
OS Version Windows Server 2003 Enterprise Edition (32-bit)
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location RTP, NC
Test date Jun 23, 2006
H/w available Jul-2006
JVM available Sept-2006
OS available Apr-2003
Other s/w available
AOT Compilation

Tuning
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Notes
  • Disabled 'Hardware Prefetcher' in BIOS
  • Disabled 'Adjacent Sector Prefetch' in BIOS

    Details of Runs

    Warehouses Thrput Total heap (MB) Thread spread % % > 120s transaction type Count Time (in seconds)
    SizeUsed totalmax
    1 30472 1500 619 <0.01% <0.01 new_order 401483 12.2 .078
    payment 277016 4.66 .063
    order_status 27701 .715 .016
    delivery 27702 4.36 .016
    stock_level 27701 .979 .094
    cust_report 152556 5.48 .062
    2 62750 1500 833 .071% <0.01 new_order 827364 23.2 .110
    payment 570455 9.36 .109
    order_status 57046 1.35 .016
    delivery 57045 12.1 .110
    stock_level 57046 1.54 .078
    cust_report 313545 11.1 .109
    3 89316 1500 579 3.46% <0.01 new_order 1177082 35.8 .094
    payment 811960 13.1 .094
    order_status 81197 2.28 .062
    delivery 81196 17.6 .094
    stock_level 81196 2.20 .078
    cust_report 446857 16.8 .094
    4 115067 1500 1084 .839% .156 new_order 12154101 364 .234
    payment 8381567 139 .079
    order_status 838157 20.7 .078
    delivery 838156 214 .250
    stock_level 838157 23.5 .062
    cust_report 4609021 176 .079
    5 115173 1500 721 19.2% .078 new_order 12155527 454 .391
    payment 8382778 174 .391
    order_status 838276 24.7 .391
    delivery 838277 265 .516
    stock_level 838278 33.6 .375
    cust_report 4610025 219 .375
    6 115167 1500 653 19.1% .059 new_order 12150744 527 .594
    payment 8380715 224 .500
    order_status 838071 28.6 .391
    delivery 838070 327 .859
    stock_level 838071 38.7 .391
    cust_report 4610685 263 .657
    7 114945 1500 1259 25.4% <0.01 new_order 12121256 628 .765
    payment 8359625 258 .750
    order_status 835963 34.9 .469
    delivery 835963 369 .953
    stock_level 835964 48.3 .453
    cust_report 4598002 306 1.02
    8 114351 1500 1076 10.1% .078 new_order 12067721 723 1.03
    payment 8322938 291 1.03
    order_status 832294 39.1 .781
    delivery 832293 437 1.17
    stock_level 832292 54.0 .687
    cust_report 4578159 336 .829

    SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
    Reporting page, Copyright © 2005-2007 SPEC. All rights reserved
