SPECjbb

SPECjbb2005		SPECjbb2005 bops = 99485, SPECjbb2005 bops/JVM = 99485
Dell PowerEdge 1950
BEA Systems, Inc BEA JRockit(R) 5.0 P26.4.0 (build P26.4.0-8-61900-1.5.0_06-20060516-1454-win-x86_64)

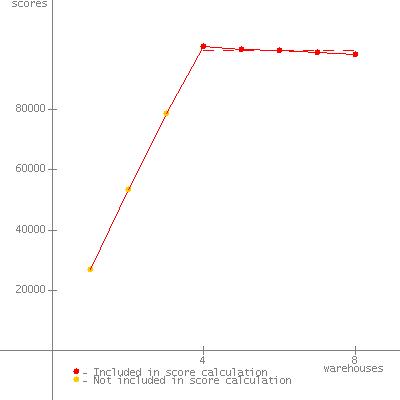

Warehouses	SPECjbb2005 bops	Incl. in metric
1	26771
2	53479
3	78724
4	101000	*
5	99841	*
6	99401	*
7	98929	*
8	98257	*
SPECjbb2005	(from 4 to 8)	99485 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell

Test date: May 23, 2006

Hardware

Hardware Vendor Dell

Vendor URL http://www.dell.com

Model PowerEdge 1950

Processor Intel Xeon Processor 5160 (1333MHz system bus)

MHz 3000

# of Chips 2

# of Cores 4

# of Cores/Chip 2

HW Threading Enabled? No

Procs Avail to Java 4

Memory (MB) 8192

Memory Details 8 x 1GB DDR2-667 FBDIMM

Primary cache 32KB(I) + 32KB(D) on chip, per core

Secondary cache 4096KB(I+D) on chip, shared

Other cache n/a

Filesystem NTFS

Disks 1 x 80GB SATA

Other hardware none

Software

Software Vendor BEA Systems, Inc

Vendor URL http://www.bea.com

JVM Version BEA JRockit(R) 5.0 P26.4.0 (build P26.4.0-8-61900-1.5.0_06-20060516-1454-win-x86_64)

JVM Command Line java -Xms3700m -Xmx3700m -XXaggressive -XXthroughputcompaction -XXallocprefetch -XXallocRedoPrefetch -XXcompressedRefs -XXlazyUnlocking -XXtlasize128k spec.jbb.JBBmain -propfile SPECjbb.props

JVM Initial Heap Memory (MB) 3700

JVM Maximum Heap Memory (MB) 3700

JVM Address bits 64

JVM CLASSPATH .\jbb.jar;
.\check.jar;

JVM BOOTCLASSPATH C:\SPECjbb2005\jrockit-jdk1.5.0_06\jre\bin\jrockit\jrockit.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_06\jre\bin\jrockit\managementapi.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_06\jre\lib\managementapi.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_06\jre\lib\rt.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_06\jre\lib\i18n.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_06\jre\lib\sunrsasign.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_06\jre\lib\jsse.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_06\jre\lib\jce.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_06\jre\lib\charsets.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_06\jre\classes

OS Version Microsoft Windows Server 2003 Enterprise x64 Edition + SP1 (64-bit)

Other software none

Test Information

Tested by Dell

SPEC license # 55

Test location Round Rock, TX

Test date May 23, 2006

H/w available Jul-2006

JVM available Aug-2006

OS available Mar-2005

Other s/w available n/a

AOT Compilation

Tuning

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.

Notes

Disabled 'Hardware Prefetcher' in BIOS
Disabled 'Adjacent Cache Line Prefetch' in BIOS
Command line options are described at:
http://edocs.bea.com/jrockit/jrdocs/refman/intro.html

Details of Runs

Warehouses	Thrput	Total heap (MB)		Thread spread %	% > 120s	transaction type	Count	Time (in seconds)
Warehouses	Thrput	Size	Used	Thread spread %	% > 120s	transaction type	Count	total	max
1	26771	3700	901	<0.01%	<0.01	new_order	353421	14.3	.094
						payment	243628	4.76	.016
						order_status	24363	.675	.016
						delivery	24362	4.75	.016
						stock_level	24363	.718	.016
						cust_report	133834	4.24	.078
2	53479	3700	2288	2.29%	<0.01	new_order	705602	25.8	.187
						payment	486689	10.6	.187
						order_status	48669	.835	.016
						delivery	48669	11.1	.016
						stock_level	48669	1.28	.016
						cust_report	267779	8.96	.047
3	78724	3700	661	3.32%	<0.01	new_order	1038492	38.2	.234
						payment	716414	14.0	.219
						order_status	71641	1.62	.234
						delivery	71642	18.6	.140
						stock_level	71643	1.69	.016
						cust_report	394332	13.6	.219
4	101000	3700	1912	4.58%	.052	new_order	10657176	394	.297
						payment	7349267	130	.266
						order_status	734929	15.7	.125
						delivery	734929	237	.266
						stock_level	734926	21.6	.125
						cust_report	4041367	139	.297
5	99841	3700	3595	28.7%	.078	new_order	10537406	493	.641
						payment	7266879	173	.453
						order_status	726688	20.1	.375
						delivery	726686	280	.750
						stock_level	726687	28.2	.453
						cust_report	3996338	180	.453
6	99401	3700	2528	28.1%	.033	new_order	10485560	577	1.13
						payment	7231486	221	.766
						order_status	723151	24.9	.656
						delivery	723151	345	.766
						stock_level	723147	31.3	.593
						cust_report	3977416	212	.937
7	98929	3700	2040	30.9%	.033	new_order	10435104	695	1.13
						payment	7197174	253	1.44
						order_status	719719	25.8	.766
						delivery	719716	384	.969
						stock_level	719720	39.0	1.06
						cust_report	3959261	246	1.11
8	98257	3700	879	17.1%	.026	new_order	10364706	768	1.14
						payment	7147790	302	1.14
						order_status	714778	34.2	1.42
						delivery	714777	434	1.24
						stock_level	714778	45.7	.953
						cust_report	3930868	297	1.27
