SPECjbb

SPECjbb2005		SPECjbb2005 bops = 32018, SPECjbb2005 bops/JVM = 32018
Sun Microsystems, Inc. Sun Fire X4200
Sun Microsystems, Inc. Java HotSpot(TM) 32-bit Server VM on Solaris, version 1.5.0_08

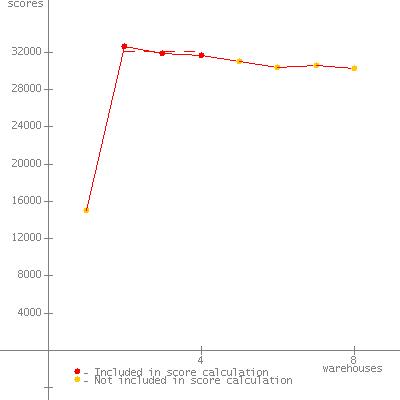

Warehouses	SPECjbb2005 bops	Incl. in metric
1	14993
2	32637	*
3	31814	*
4	31602	*
5	30951
6	30379
7	30546
8	30268
SPECjbb2005	(from 2 to 4)	32018 SPECjbb2005 bops

SPEC license # 6

Tested by: Sun Microsystems, Inc.

Test date: May 11, 2006

Hardware

Hardware Vendor Sun Microsystems, Inc.

Vendor URL http://www.sun.com

Model Sun Fire X4200

Processor AMD Opteron 256

MHz 3000

# of Chips 2

# of Cores 2

# of Cores/Chip 1

HW Threading Enabled? N/A

Procs Avail to Java 2

Memory (MB) 16384

Memory Details 8 x 2GB DIMMS DDR400 CAS3 memory

Primary cache 64KBI+64KBD

Secondary cache 1MB(I+D)

Other cache

Filesystem UFS

Disks 2 x 72 GB Internal SAS

Other hardware

Software

Software Vendor Sun Microsystems, Inc.

Vendor URL http://java.sun.com

JVM Version Java HotSpot(TM) 32-bit Server VM on Solaris, version 1.5.0_08

JVM Command Line java -Xmn1g -Xms1536m -Xmx1536m -XX:+UseBiasedLocking -XX:+AggressiveOpts -XX:+UseParallelOldGC -Xss64k -spec.jbb.JBBmain -propfile SPECjbb.props

JVM Initial Heap Memory (MB) 1536

JVM Maximum Heap Memory (MB) 1536

JVM Address bits 32

JVM CLASSPATH jbb.jar:
check.jar

JVM BOOTCLASSPATH /export/home/javaperf/VMs/jdk1.5.0_08/jre/lib/rt.jar:
/export/home/javaperf/VMs/jdk1.5.0_08/jre/lib/i18n.jar:
/export/home/javaperf/VMs/jdk1.5.0_08/jre/lib/sunrsasign.jar:
/export/home/javaperf/VMs/jdk1.5.0_08/jre/lib/jsse.jar:
/export/home/javaperf/VMs/jdk1.5.0_08/jre/lib/jce.jar:
/export/home/javaperf/VMs/jdk1.5.0_08/jre/lib/charsets.jar:
/export/home/javaperf/VMs/jdk1.5.0_08/jre/classes

OS Version Solaris 10 6/06 (64-bit)

Other software

Test Information

Tested by Sun Microsystems, Inc.

SPEC license # 6

Test location Burlington, MA

Test date May 11, 2006

H/w available May-2006

JVM available Aug-2006

OS available Jun-2006

Other s/w available

AOT Compilation

Tuning

/etc/system settings:
lgrp_mem_default_policy=3

Notes

This result was measured on the Sun Fire X4100. The Sun Fire X4100 and the Sun Fire X4200 are electronically equivalent.

Command line options are described at
http://java.sun.com/docs/performance

Details of Runs

Warehouses	Thrput	Total heap (MB)		Thread spread %	% > 120s	transaction type	Count	Time (in seconds)
Warehouses	Thrput	Size	Used	Thread spread %	% > 120s	transaction type	Count	total	max
1	14993	1408	452	<0.01%	<0.01	new_order	197793	8.06	.128
						payment	136336	3.86	.415
						order_status	13634	.687	.139
						delivery	13634	10.7	.161
						stock_level	13634	1.02	.045
						cust_report	74883	4.63	.152
2	32637	1531	374	4.56%	<0.01	new_order	3441497	131	.185
						payment	2373708	47.8	.059
						order_status	237371	6.82	.011
						delivery	237370	191	.186
						stock_level	237370	13.9	.136
						cust_report	1305916	76.2	.116
3	31814	1529	1043	36.9%	<0.01	new_order	3354715	187	.201
						payment	2313823	72.7	.260
						order_status	231382	9.70	.160
						delivery	231383	292	.231
						stock_level	231383	22.9	.201
						cust_report	1272937	115	.221
4	31602	1527	730	10.9%	<0.01	new_order	3332748	256	.350
						payment	2298399	96.2	.340
						order_status	229840	13.1	.181
						delivery	229837	393	.531
						stock_level	229843	27.9	.321
						cust_report	1264039	148	.340
5	30951	1524	387	37.4%	<0.01	new_order	3263728	319	.481
						payment	2251033	126	.481
						order_status	225103	19.4	.480
						delivery	225102	485	.521
						stock_level	225106	32.7	.481
						cust_report	1238348	184	.461
6	30379	1522	1017	16.3%	<0.01	new_order	3203270	384	.561
						payment	2209491	137	.601
						order_status	220949	20.1	.360
						delivery	220949	590	.521
						stock_level	220949	46.9	.360
						cust_report	1215716	216	.611
7	30546	1520	458	28.8%	<0.01	new_order	3221615	422	.561
						payment	2221679	165	.600
						order_status	222169	28.0	.421
						delivery	222168	713	.630
						stock_level	222168	52.3	.560
						cust_report	1221735	253	.571
8	30268	1518	517	32.3%	<0.01	new_order	3191991	512	.571
						payment	2201515	179	.570
						order_status	220152	30.5	.531
						delivery	220149	794	.691
						stock_level	220151	59.4	.611
						cust_report	1211039	294	.671
