SPECjbb

SPECjbb2005		SPECjbb2005 bops = 34111, SPECjbb2005 bops/JVM = 34111
Fujitsu Siemens Computers PRIMERGY TX150 S4, Intel Pentium D 950 processor, 3.40 GHz
BEA Systems, Inc BEA JRockit(R) (build P26.0.0-35-59328-1.5.0_06-20060321-1333-win-x86_64)

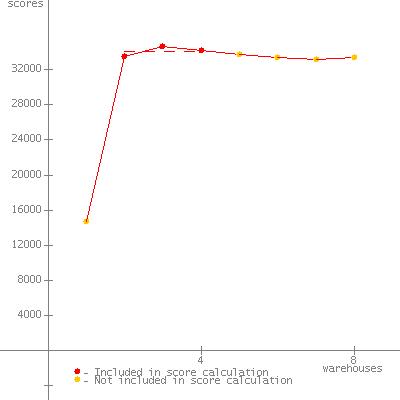

Warehouses	SPECjbb2005 bops	Incl. in metric
1	14708
2	33505	*
3	34683	*
4	34146	*
5	33771
6	33409
7	33201
8	33362
SPECjbb2005	(from 2 to 4)	34111 SPECjbb2005 bops

SPEC license # 22

Tested by: Fujitsu Siemens Computers

Test date: Apr 22, 2006

Hardware

Hardware Vendor Fujitsu Siemens Computers

Vendor URL http://www.fujitsu-siemens.com

Model PRIMERGY TX150 S4, Intel Pentium D 950 processor, 3.40 GHz

Processor Intel Pentium D 950 processor (3.40 GHz, 2x2MB L2, 800 MHz system bus)

MHz 3400

# of Chips 1

# of Cores 2

# of Cores/Chip 2

HW Threading Enabled? n/a

Procs Avail to Java 2

Memory (MB) 8192

Memory Details 4x2GB DDRII-RAM PC2-4200E (CAS 4-4-4)

Primary cache 12KBI + 16KBD on chip, per core

Secondary cache 2MB(I+D) on chip, per core

Other cache n/a

Filesystem NTFS

Disks Fujitsu MAS3735NC (SCSI, 15krpm, 73GB)

Other hardware none

Software

Software Vendor BEA Systems, Inc

Vendor URL http://www.bea.com

JVM Version BEA JRockit(R) (build P26.0.0-35-59328-1.5.0_06-20060321-1333-win-x86_64)

JVM Command Line java -Xms3700m -Xmx3700m -XXaggressive -XXthroughputCompaction -XXallocPrefetch -XXallocRedoPrefetch -XXcompressedRefs -XXlazyUnlocking -XXtlasize64k spec.jbb.JBBmain -propfile SPECjbb.props

JVM Initial Heap Memory (MB) 3700

JVM Maximum Heap Memory (MB) 3700

JVM Address bits 64

JVM CLASSPATH .\jbb.jar;
.\check.jar;

JVM BOOTCLASSPATH C:\Program Files\JAVA\jrockit-jdk1.5.0_06\jre\bin\jrockit\jrockit.jar;
C:\Program Files\JAVA\jrockit-jdk1.5.0_06\jre\bin\jrockit\managementapi.jar;
C:\Program Files\JAVA\jrockit-jdk1.5.0_06\jre\lib\managementapi.jar;
C:\Program Files\JAVA\jrockit-jdk1.5.0_06\jre\lib\rt.jar;
C:\Program Files\JAVA\jrockit-jdk1.5.0_06\jre\lib\i18n.jar;
C:\Program Files\JAVA\jrockit-jdk1.5.0_06\jre\lib\sunrsasign.jar;
C:\Program Files\JAVA\jrockit-jdk1.5.0_06\jre\lib\jsse.jar;
C:\Program Files\JAVA\jrockit-jdk1.5.0_06\jre\lib\jce.jar;
C:\Program Files\JAVA\jrockit-jdk1.5.0_06\jre\lib\charsets.jar;
C:\Program Files\JAVA\jrockit-jdk1.5.0_06\jre\classes

OS Version Microsoft Windows Server 2003 Enterprise x64 Edition + SP1 (64-bit)

Other software none

Test Information

Tested by Fujitsu Siemens Computers

SPEC license # 22

Test location Paderborn, Germany

Test date Apr 22, 2006

H/w available Jul-2006

JVM available Apr-2006

OS available Mar-2005

Other s/w available n/a

AOT Compilation

Tuning

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.

Notes

turned off 'Hardware Prefetching' in BIOS
Command line options are described at:
http://edocs.bea.com/jrockit/jrdocs/refman/intro.html

Details of Runs

Warehouses	Thrput	Total heap (MB)		Thread spread %	% > 120s	transaction type	Count	Time (in seconds)
Warehouses	Thrput	Size	Used	Thread spread %	% > 120s	transaction type	Count	total	max
1	14708	3700	894	<0.01%	<0.01	new_order	194209	11.2	.140
						payment	133851	4.94	.016
						order_status	13385	.575	.016
						delivery	13384	7.26	.016
						stock_level	13386	.824	.016
						cust_report	73495	4.56	.016
2	33505	3700	828	2.49%	.019	new_order	3533712	165	.907
						payment	2437212	67.4	.625
						order_status	243722	7.99	.016
						delivery	243722	143	.359
						stock_level	243722	12.4	.047
						cust_report	1340717	73.4	.281
3	34683	3700	3427	40.4%	.020	new_order	3658440	239	.313
						payment	2522885	102	.468
						order_status	252289	11.4	.110
						delivery	252288	219	.329
						stock_level	252290	19.3	.313
						cust_report	1387340	115	.312
4	34146	3700	2783	17.1%	.026	new_order	3601079	321	.328
						payment	2483983	138	.297
						order_status	248400	17.1	.141
						delivery	248397	291	.515
						stock_level	248398	26.2	.296
						cust_report	1366887	147	.375
5	33771	3700	2866	32.5%	.026	new_order	3562066	402	.500
						payment	2456709	173	.469
						order_status	245669	21.7	.344
						delivery	245672	353	1.58
						stock_level	245671	29.2	.328
						cust_report	1351362	195	.500
6	33409	3700	3695	7.96%	.020	new_order	3523659	482	.594
						payment	2430242	210	.515
						order_status	243026	27.5	.562
						delivery	243024	428	2.84
						stock_level	243025	37.6	.422
						cust_report	1336822	229	1.33
7	33201	3700	1973	35.6%	.013	new_order	3501294	561	1.00
						payment	2414926	260	.953
						order_status	241492	27.4	.750
						delivery	241491	487	4.77
						stock_level	241494	42.2	.750
						cust_report	1328562	269	1.73
8	33362	3700	1349	18.3%	.013	new_order	3517978	644	.813
						payment	2426636	303	.875
						order_status	242662	36.3	.547
						delivery	242666	547	.922
						stock_level	242665	48.9	.453
						cust_report	1335286	308	2.52
