SPECjbb

SPECjbb2005		SPECjbb2005 bops = 51106, SPECjbb2005 bops/JVM = 51106
Tyan Computer Corporation S2895
Sun Microsystems, Inc. Java(TM) 2 Runtime Environment, Standard Edition (build 1.5.0_06-b05)

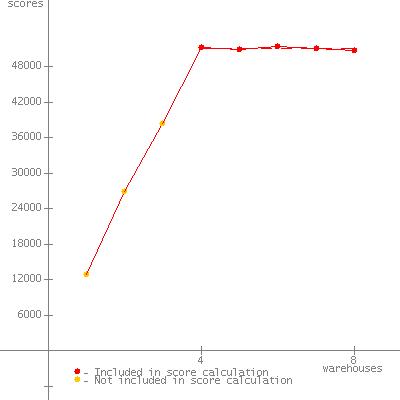

Warehouses	SPECjbb2005 bops	Incl. in metric
1	12850
2	26967
3	38450
4	51241	*
5	50973	*
6	51506	*
7	51055	*
8	50757	*
SPECjbb2005	(from 4 to 8)	51106 SPECjbb2005 bops

SPEC license # 49

Tested by: Advanced Micro Devices

Test date: Feb 17, 2006

Hardware

Hardware Vendor Tyan Computer Corporation

Vendor URL http://www.tyan.com/

Model S2895

Processor AMD Opteron 285

MHz 2600

# of Chips 2

# of Cores 4

# of Cores/Chip 2

HW Threading Enabled? No

Procs Avail to Java 4

Memory (MB) 4096

Memory Details 8 x 512MB DDR400 CL2 Reg

Primary cache 64KBI+64KBD

Secondary cache 2MB (1MB/core) on chip

Other cache

Filesystem NTFS

Disks 1 x 250GB SATA (OS+Data+Paging+Classes)

Other hardware

Software

Software Vendor Sun Microsystems, Inc.

Vendor URL http://java.sun.com/

JVM Version Java(TM) 2 Runtime Environment, Standard Edition (build 1.5.0_06-b05)

JVM Command Line java -server -Xmn1000m -Xms1500m -Xmx1500m -Xss128k -XX:+UseLargePages -XX:+UseParallelGC -XX:+UseParallelOldGC -XX:+UseBiasedLocking -XX:+AggressiveOpts -spec.jbb.JBBmain -propfile SPECjbb.props

JVM Initial Heap Memory (MB) 1500

JVM Maximum Heap Memory (MB) 1500

JVM Address bits 32

JVM CLASSPATH .\jbb.jar;
.\check.jar;

JVM BOOTCLASSPATH c:\java\SUN32\jre\lib\rt.jar;
c:\java\SUN32\jre\lib\i18n.jar;
c:\java\SUN32\jre\lib\sunrsasign.jar;
c:\java\SUN32\jre\lib\jsse.jar;
c:\java\SUN32\jre\lib\jce.jar;
c:\java\SUN32\jre\lib\charsets.jar;
c:\java\SUN32\jre\classes

OS Version Windows Server 2003 Enterprise edition SP1 (32-bit)

Other software

Test Information

Tested by Advanced Micro Devices

SPEC license # 49

Test location Austin, TX

Test date Feb 17, 2006

H/w available Mar-2006

JVM available Nov-2005

OS available Mar-2005

Other s/w available

AOT Compilation

Tuning

BIOS
Node Memory Interleave=AUTO
OS
Using the Local Security Settings console, "Lock pages in memory" was enabled for the user running the benchmark.

Notes

SUT requires a Tyan S2895 motherboard (BIOS rev. 1.02), 4GB of Corsair CMX512RE-3200LL (XMS3200REv2.1) memory (4 x 512MB DIMMs per processor), a Western Digital WD2500 SATA drive, a SSI EEB 3.51 specification compliant form-factor case, and a Zippy/Emacs 700 watt PSL-6701P Power Supply.

Details of Runs

Warehouses	Thrput	Total heap (MB)		Thread spread %	% > 120s	transaction type	Count	Time (in seconds)
Warehouses	Thrput	Size	Used	Thread spread %	% > 120s	transaction type	Count	total	max
1	12850	1375	783	<0.01%	<0.01	new_order	169424	7.90	.282
						payment	116813	4.50	.391
						order_status	11681	.824	.187
						delivery	11681	10.2	.234
						stock_level	11681	.979	.125
						cust_report	64206	5.02	.375
2	26967	1441	890	1.42%	<0.01	new_order	355890	16.0	.094
						payment	245539	7.64	.062
						order_status	24554	.997	.016
						delivery	24553	21.8	.218
						stock_level	24554	1.34	.016
						cust_report	135193	11.1	.390
3	38450	1461	827	2.18%	<0.01	new_order	507230	25.4	.187
						payment	349908	9.86	.078
						order_status	34991	1.25	.016
						delivery	34991	34.1	.719
						stock_level	34990	2.07	.047
						cust_report	192580	15.5	.359
4	51241	1491	860	.726%	.059	new_order	5406935	264	.594
						payment	3728779	106	.468
						order_status	372878	17.6	.797
						delivery	372877	367	2.27
						stock_level	372877	27.5	.813
						cust_report	2050623	157	.875
5	50973	1489	254	6.37%	<0.01	new_order	5375432	332	1.31
						payment	3707381	133	.578
						order_status	370737	21.3	.375
						delivery	370737	457	8.23
						stock_level	370738	33.7	.766
						cust_report	2039336	196	1.24
6	51506	1486	562	14.9%	.033	new_order	5433668	391	1.13
						payment	3747085	159	.969
						order_status	374709	23.9	.562
						delivery	374707	567	1.30
						stock_level	374711	36.9	.781
						cust_report	2060504	229	1.30
7	51055	1484	521	28.5%	.039	new_order	5386924	454	1.69
						payment	3714518	183	1.09
						order_status	371450	29.0	.797
						delivery	371451	650	1.66
						stock_level	371451	48.4	1.72
						cust_report	2042102	272	1.95
8	50757	1482	508	21.4%	.013	new_order	5353584	534	1.52
						payment	3691870	196	1.72
						order_status	369187	28.4	1.69
						delivery	369184	731	3.47
						stock_level	369186	55.2	1.36
						cust_report	2030148	327	1.72
