SPECjbb2005 SPECjbb2005 bops = 41986, SPECjbb2005 bops/JVM = 41986
Fujitsu Siemens Computers PRIMERGY RX300 S2, Dual-Core Intel Xeon processor 2.80GHz
SUN Microsystems, Inc Java HotSpot(TM) Server VM (build 1.5.0_06-b05)

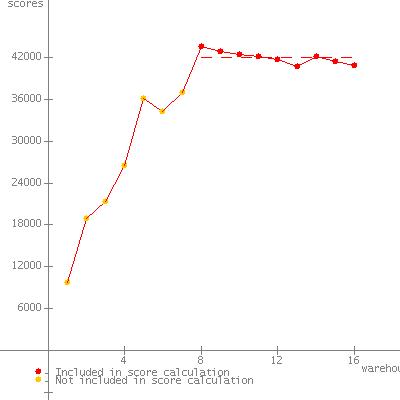

Warehouses SPECjbb2005 bops Incl. in metric
1 9724
2 18891
3 21388
4 26507
5 36063
6 34255
7 36942
8 43624 *
9 42811 *
10 42473 *
11 42088 *
12 41737 *
13 40735 *
14 42103 *
15 41494 *
16 40812 *
SPECjbb2005 (from 8 to 16) 41986 SPECjbb2005 bops
SPEC license # 22 Tested by: Fujitsu Siemens Computers Test date: 02.12.2005

Hardware
Hardware Vendor Fujitsu Siemens Computers
Vendor URL http://www.fujitsu-siemens.com
Model PRIMERGY RX300 S2, Dual-Core Intel Xeon processor 2.80GHz
Processor Dual-Core Intel Xeon processor 2.80GHz, 2x2MB L2, 800MHz system bus
MHz 2800
# of Chips 2
# of Cores 4
# of Cores/Chip 2
HW Threading Enabled? Yes
Procs Avail to Java 8
Memory (MB) 4096
Memory Details 8x512MB DDRII-RAM PC2-3200R
Primary cache 12k micro-ops I + 16KBD on chip, per core
Secondary cache 2048KB(I+D) on chip, per core
Other cache n/a
Filesystem NTFS
Disks 1 x 36GB Fujitsu MAS3367NC
Other hardware none
Software
Software Vendor SUN Microsystems, Inc
Vendor URL http://www.sun.com
JVM Version Java HotSpot(TM) Server VM (build 1.5.0_06-b05)
JVM Command Line java -server -XX:+AggressiveHeap -Xmn750m -Xms1600m -Xmx1600m -XX:+UseBiasedLocking -XX:+UseParallelGC -XX:ParallelGCThreads=8 -Xss64k spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 1600
JVM Maximum Heap Memory (MB) 1600
JVM Address bits 32
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\Program Files\Java\jdk1.5.0_06\jre\lib\rt.jar;
C:\Program Files\Java\jdk1.5.0_06\jre\lib\i18n.jar;
C:\Program Files\Java\jdk1.5.0_06\jre\lib\sunrsasign.jar;
C:\Program Files\Java\jdk1.5.0_06\jre\lib\jsse.jar;
C:\Program Files\Java\jdk1.5.0_06\jre\lib\jce.jar;
C:\Program Files\Java\jdk1.5.0_06\jre\lib\charsets.jar;
C:\Program Files\Java\jdk1.5.0_06\jre\classes
OS Version Microsoft Windows Server 2003 Enterprise Edition + SP1 (32-bit)
Other software none
Test Information
Tested by Fujitsu Siemens Computers
SPEC license # 22
Test location Paderborn, Germany
Test date 02.12.2005
H/w available Nov-2005
JVM available Nov-2005
OS available Mar-2005
Other s/w available n/a
AOT Compilation

Tuning
- turned off memory scrubbing in BIOS
- added /3GB in boot.ini
Notes
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.

Command line options are described at:
http://java.sun.com/docs/hotspot/VMOptions.html

Details of Runs

Warehouses Thrput Total heap (MB) Thread spread % % > 120s transaction type Count Time (in seconds)
SizeUsed totalmax
1 9724 1510 588 <0.01% <0.01 new_order 128292 11.1 .078
payment 88449 5.00 .328
order_status 8845 .498 .016
delivery 8845 7.84 .937
stock_level 8844 .662 .016
cust_report 48608 4.13 .125
2 18891 1541 262 .490% <0.01 new_order 249041 21.1 .219
payment 171821 8.86 .187
order_status 17182 1.05 .016
delivery 17182 15.6 1.06
stock_level 17182 1.61 .172
cust_report 94601 10.0 .438
3 21388 1554 496 19.1% <0.01 new_order 282168 28.7 .625
payment 194540 11.8 .110
order_status 19454 1.39 .016
delivery 19453 27.6 1.78
stock_level 19456 3.66 1.61
cust_report 106913 15.0 1.41
4 26507 1575 137 14.4% <0.01 new_order 362900 40.8 2.44
payment 250390 15.0 1.00
order_status 25040 1.85 .016
delivery 25038 38.0 3.58
stock_level 25038 2.42 .031
cust_report 137884 24.4 2.42
5 36063 1581 455 20.2% <0.01 new_order 479203 49.4 .781
payment 330237 23.5 .828
order_status 33023 3.46 .922
delivery 33023 42.7 1.44
stock_level 33025 3.79 .594
cust_report 181269 24.7 1.19
6 34255 1582 445 15.2% <0.01 new_order 467033 66.8 3.27
payment 322281 25.2 1.02
order_status 32227 3.03 .062
delivery 32225 49.4 3.41
stock_level 32229 5.54 1.13
cust_report 177529 33.9 3.30
7 36942 1581 214 15.2% <0.01 new_order 490040 66.2 2.06
payment 337929 27.6 1.06
order_status 33793 2.77 .047
delivery 33792 62.9 4.55
stock_level 33794 4.43 .047
cust_report 185831 43.3 2.27
8 43624 1580 770 1.22% .072 new_order 4603882 606 1.69
payment 3174921 240 .687
order_status 317492 32.0 .579
delivery 317490 620 2.17
stock_level 317490 50.2 .641
cust_report 1745939 327 1.75
9 42811 1580 692 8.03% .638 new_order 4543326 671 3.50
payment 3133407 272 4.52
order_status 313341 37.3 3.55
delivery 313339 708 8.39
stock_level 313341 57.4 3.45
cust_report 1723496 381 4.67
10 42473 1580 785 15.9% .039 new_order 4480354 741 3.66
payment 3090147 301 1.50
order_status 309012 43.9 3.24
delivery 309015 780 4.86
stock_level 309014 59.6 .125
cust_report 1699935 413 2.22
11 42088 1572 974 18.3% .697 new_order 4469709 821 5.34
payment 3082256 338 1.72
order_status 308226 49.9 2.00
delivery 308225 852 3.92
stock_level 308227 67.8 3.75
cust_report 1694795 467 5.36
12 41737 1572 1031 25.7% .019 new_order 4402389 893 4.53
payment 3036011 353 2.24
order_status 303600 55.2 6.78
delivery 303596 938 11.0
stock_level 303602 71.3 .157
cust_report 1669627 498 4.03
13 40735 1572 1228 21.7% .898 new_order 4335005 979 4.84
payment 2989116 391 2.41
order_status 298914 57.8 2.69
delivery 298910 1020 9.80
stock_level 298914 76.6 .172
cust_report 1643245 538 6.95
14 42103 1572 904 31.9% .045 new_order 4442137 1039 3.17
payment 3063397 426 1.38
order_status 306341 57.2 3.14
delivery 306339 1096 5.03
stock_level 306337 87.8 1.38
cust_report 1684665 579 3.22
15 41494 1564 673 24.2% .078 new_order 4378498 1160 6.50
payment 3020094 461 5.58
order_status 302011 69.9 6.94
delivery 302007 1176 11.3
stock_level 302007 105 5.53
cust_report 1661689 606 5.63
16 40812 1564 728 18.2% .045 new_order 4305916 1194 4.75
payment 2969514 465 1.67
order_status 296950 80.8 6.97
delivery 296947 1258 5.78
stock_level 296951 97.5 4.69
cust_report 1633102 658 4.70
SPECjbb2005 Version: [SPECjbb2005 1.05, July 6, 2005]
Reporting page, Copyright © 2005 SPEC. All rights reserved

First published at SPEC.org on 21-Dec-2005
