SPECjbb

SPECjbb2005		SPECjbb2005 bops = 45124, SPECjbb2005 bops/JVM = 45124
Sun Microsystems, Inc. Sun Fire X4100
Sun Microsystems, Inc. Java HotSpot(TM) 32-Bit Server VM on Solaris, version 1.5.0_06

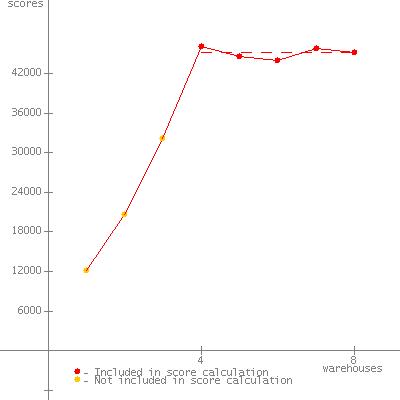

Warehouses	SPECjbb2005 bops	Incl. in metric
1	12086
2	20548
3	32168
4	46126	*
5	44561	*
6	44009	*
7	45712	*
8	45211	*
SPECjbb2005	(from 4 to 8)	45124 SPECjbb2005 bops

SPEC license # 6

Tested by: Sun Microsystems, Inc.

Test date: Aug 25, 2005

Hardware

Hardware Vendor Sun Microsystems, Inc.

Vendor URL http://www.sun.com

Model Sun Fire X4100

Processor AMD Opteron 280

MHz 2400

# of Chips 2

# of Cores 4

# of Cores/Chip 2

HW Threading Enabled? N/A

Procs Avail to Java 4

Memory (MB) 16384

Memory Details 16 DIMMs with 1GB DDR400 CAS3 memory

Primary cache 64KBI+64KBD

Secondary cache 1MB(I+D)

Other cache

Filesystem UFS

Disks 1 x 36GB Internal SAS

Other hardware

Software

Software Vendor Sun Microsystems, Inc.

Vendor URL http://java.sun.com

JVM Version Java HotSpot(TM) 32-Bit Server VM on Solaris, version 1.5.0_06

JVM Command Line java -Xmn2g -Xms3g -Xmx3g -XX:+UseBiasedLocking -Xss128k -spec.jbb.JBBmain -propfile SPECjbb.props

JVM Initial Heap Memory (MB) 3072

JVM Maximum Heap Memory (MB) 3072

JVM Address bits 32

JVM CLASSPATH jbb.jar:
jbb_no_precompile.jar:
check.jar:
reporter.jar

JVM BOOTCLASSPATH /data1/javaperf/VMs/jdk1.5.0_06_b02/jre/lib/rt.jar:
/data1/javaperf/VMs/jdk1.5.0_06_b02/jre/lib/i18n.jar:
/data1/javaperf/VMs/jdk1.5.0_06_b02/jre/lib/sunrsasign.jar:
/data1/javaperf/VMs/jdk1.5.0_06_b02/jre/lib/jsse.jar:
/data1/javaperf/VMs/jdk1.5.0_06_b02/jre/lib/jce.jar:
/data1/javaperf/VMs/jdk1.5.0_06_b02/jre/lib/charsets.jar:
/data1/javaperf/VMs/jdk1.5.0_06_b02/jre/classes

OS Version Solaris 10 3/05 HW1 Operating System (64-bit)

Other software

Test Information

Tested by Sun Microsystems, Inc.

SPEC license # 6

Test location Burlington, MA

Test date Aug 25, 2005

H/w available Nov-2005

JVM available Nov-2005

OS available Mar-2005

Other s/w available

AOT Compilation

Tuning

Notes

This result was measured on the Sun Fire X4200. The Sun Fire X4100 and the Sun Fire X4200 are electronically equivalent.

Details of Runs

Warehouses	Thrput	Total heap (MB)		Thread spread %	% > 120s	transaction type	Count	Time (in seconds)
Warehouses	Thrput	Size	Used	Thread spread %	% > 120s	transaction type	Count	total	max
1	12086	2816	746	<0.01%	<0.01	new_order	159670	9.09	.105
						payment	110166	4.00	.093
						order_status	11017	.462	<0.01
						delivery	11017	10.3	.306
						stock_level	11017	.801	<0.01
						cust_report	60662	4.96	.028
2	20548	2977	836	5.86%	<0.01	new_order	271281	17.4	.450
						payment	187052	7.18	.426
						order_status	18705	1.32	.480
						delivery	18705	20.1	.990
						stock_level	18706	1.37	.030
						cust_report	102826	11.0	.468
3	32168	2988	675	4.25%	<0.01	new_order	424912	26.1	.970
						payment	293115	10.3	.490
						order_status	29312	2.28	.955
						delivery	29310	32.3	1.30
						stock_level	29313	2.12	.010
						cust_report	161319	14.8	.573
4	46126	3061	1872	2.13%	.017	new_order	4865571	272	.510
						payment	3355199	108	.421
						order_status	335518	16.0	.520
						delivery	335520	349	1.91
						stock_level	335520	25.2	.028
						cust_report	1844824	164	1.35
5	44561	3060	1400	32.9%	.021	new_order	4700588	341	2.25
						payment	3241469	134	.201
						order_status	324146	23.9	3.42
						delivery	324146	444	3.65
						stock_level	324147	30.3	.270
						cust_report	1782346	197	2.21
6	44009	3058	2150	7.90%	<0.01	new_order	4642083	409	1.70
						payment	3200916	163	.843
						order_status	320091	23.7	.920
						delivery	320093	532	3.10
						stock_level	320092	38.3	.857
						cust_report	1759754	235	2.55
7	45712	3056	804	25.7%	.025	new_order	4822643	477	.680
						payment	3325370	187	.720
						order_status	332537	26.9	.439
						delivery	332537	626	1.18
						stock_level	332536	42.4	.361
						cust_report	1828098	277	.496
8	45211	3054	791	8.51%	.050	new_order	4770963	540	1.41
						payment	3289687	221	.600
						order_status	328967	30.7	.750
						delivery	328967	700	3.36
						stock_level	328969	51.8	.640
						cust_report	1808395	323	.900
