SPECjbb2000 SPECjbb2000 = 39631 ops/s
IBM Corporation IBM eServer BladeCenter JS20
IBM Corporation J2RE 1.4.2 (32-bit) IBM AIX build ca1420-20040626

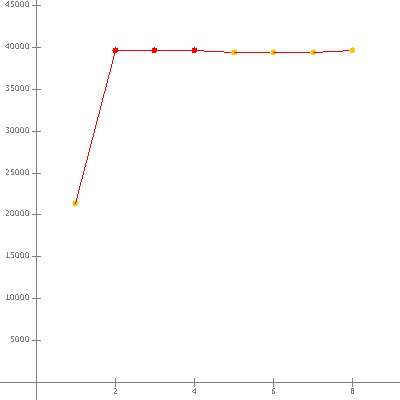

Warehouses Ops/s Incl. in metric
1 21364
2 39653 *
3 39638 *
4 39601 *
5 39384
6 39390
7 39420
8 39607
SPECjbb2000 (from 2 to 4) 39631 ops/s

SPEC license # 11 Tested by: IBM Corporation Test date: Sep 8, 2004

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM eServer BladeCenter JS20
Processor PowerPC 970
MHz 2200
# of Procs 2 cores, 2 chips, 1 core/chip
Memory (MB) 4096
Primary cache 64KBI+32KBD (on chip)/chip
Secondary cache 512KB unified (on chip)/chip
Other cache
Filesystem JFS
Disks 1 x 36GB SCSI
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
Java Precompiler Version
Java Precompiler Command Line
Java Precompiler Way Of Excluding Classes
JVM Version J2RE 1.4.2 (32-bit) IBM AIX build ca1420-20040626
JVM Command Line java -Xlp -Xcompactexplicitgc -Xgcpolicy:subpool -ms3g -mx3g spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 3072
JVM Maximum Heap Memory (MB) 3072
JVM CLASSPATH ./jbb.jar:
./jbb_no_precompile.jar:
./check.jar:
./reporter.jar
JVM BOOTCLASSPATH /java/ca1420-20040626/jre/lib/core.jar:
/java/ca1420-20040626/jre/lib/graphics.jar:
/java/ca1420-20040626/jre/lib/security.jar:
/java/ca1420-20040626/jre/lib/server.jar:
/java/ca1420-20040626/jre/lib/xml.jar:
/java/ca1420-20040626/jre/lib/charsets.jar:
/java/ca1420-20040626/jre/classes:
/java/ca1420-20040626/jre/lib/ibmorbapi.jar:
/java/ca1420-20040626/jre/lib/ibmorb.jar:
/java/ca1420-20040626/jre/lib/ibmjsseprovider.jar:
/java/ca1420-20040626/jre/lib/ibmjssefips.jar:
/java/ca1420-20040626/jre/lib/ibmcertpathprovider.jar:
/java/ca1420-20040626/jre/lib/ibmjcefw.jar:
/java/ca1420-20040626/jre/lib/ibmjgssprovider.jar:
/java/ca1420-20040626/jre/lib/ibmpkcs.jar:
/java/ca1420-20040626/jre/lib/ibmjaaslm.jar
OS Version AIX 5L V5.3
System state normal
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location Austin, TX
Test date Sep 8, 2004
H/w available Oct-2004
JVM available Jul-2004
OS available Jan-2005
Other s/w available
Tuning
Operating system tunings
  • vmo -o lgpg_regions=192 -o lgpg_size=16777216
  • vmo -o v_pinshm=1
  • setsched -S rr -P 40 -p $$
  • schedo -o timeslice=300
  • SPINLOOPTIME=1000
Notes
APAR IY 62532 was applied to AIX to enable new hardware support.

Details of Runs

Warehouses Thrput Total heap (MB) Thread spread % % > 120s transaction type Count Time (in seconds)
SizeUsed totalmax
1 21364 3072 32.2 <0.01% <0.01 new_order 1114702 68.1 .091
payment 1114703 20.5 <0.01
order_status 111470 2.24 <0.01
delivery 111470 9.57 .094
stock_level 111471 15.1 <0.01
2 39653 3072 54.2 .930% .850 new_order 2086463 137 .120
payment 2086464 41.3 .121
order_status 208646 4.64 <0.01
delivery 208646 19.6 <0.01
stock_level 208647 31.0 .120
3 39638 3072 71.3 24.0% 1.68 new_order 2102716 202 2.01
payment 2102716 55.1 2.00
order_status 210272 9.27 2.00
delivery 210272 33.4 2.00
stock_level 210271 56.2 2.00
4 39601 3072 88.2 7.57% 1.68 new_order 2100836 273 4.01
payment 2100829 85.1 2.12
order_status 210083 5.84 1.01
delivery 210082 28.5 2.00
stock_level 210083 72.0 2.06
5 39384 3072 105 15.1% 1.69 new_order 2089572 351 2.20
payment 2089564 106 2.97
order_status 208958 14.4 1.99
delivery 208957 38.0 2.09
stock_level 208957 72.8 2.03
6 39390 3072 124 18.3% 1.68 new_order 2089557 418 2.95
payment 2089561 133 2.94
order_status 208956 23.5 2.02
delivery 208954 49.6 3.01
stock_level 208955 78.1 2.17
7 39420 3072 139 36.1% 1.70 new_order 2091724 456 3.03
payment 2091719 173 2.76
order_status 209172 24.4 2.04
delivery 209174 71.6 2.04
stock_level 209173 108 2.84
8 39607 3072 158 25.0% 2.49 new_order 2117937 572 4.00
payment 2117920 157 3.02
order_status 211793 17.5 2.03
delivery 211792 101 2.88
stock_level 211790 101 2.95

SPECjbb2000 Version: [SPECjbb2000 1.03, April 22, 2002]
Reporting page, Copyright © 2000-2002 SPEC. All rights reserved

First published at SPEC.org on 11-Nov-2004
