SPECjbb

SPECjbb2000		SPECjbb2000 = 82615 ops/s
IBM Corporation IBM eServer p5 570 (Linux)
IBM Corporation J2RE 1.4.2 (32-bit) IBM Linux build cxppc321420-20040626

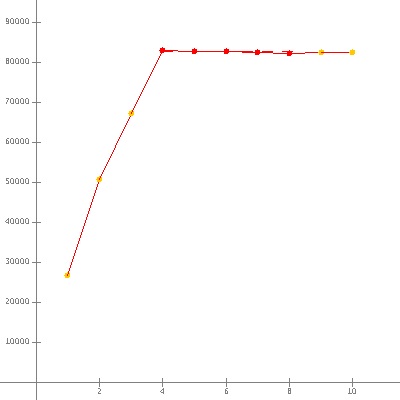

Warehouses	Ops/s	Incl. in metric
1	26744
2	50717
3	67043
4	82935	*
5	82695	*
6	82699	*
7	82487	*
8	82259	*
9	82429
10	82396
SPECjbb2000	(from 4 to 8)	82615 ops/s

SPEC license # 11 Tested by: IBM Corporation Test date: Aug 11, 2004

Hardware

Hardware Vendor IBM Corporation

Vendor URL http://www.ibm.com

Model IBM eServer p5 570 (Linux)

Processor POWER5

MHz 1900

# of Procs 2 cores, 1 chip, 2 cores/chip (SMT on)

Memory (MB) 8192 DDR2

Primary cache 64KBI+32KBD (on chip)/core

Secondary cache 1920KB unified (on chip)/chip

Other cache 36MB unified (off chip)/DCM, 1 DCM in SUT

Filesystem Reiserfs

Disks 1 x 73GB SCSI

Other hardware

Software

Software Vendor IBM Corporation

Vendor URL http://www.ibm.com

Java Precompiler Version

Java Precompiler Command Line

Java Precompiler Way Of Excluding Classes

JVM Version J2RE 1.4.2 (32-bit) IBM Linux build cxppc321420-20040626

JVM Command Line java -Xlp -Xcompactexplicitgc -ms3328m -mx3328m spec.jbb.JBBmain -propfile SPECjbb.props

JVM Initial Heap Memory (MB) 3328

JVM Maximum Heap Memory (MB) 3328

JVM CLASSPATH ./jbb.jar:
./jbb_no_precompile.jar:
./check.jar:
./reporter.jar:

JVM BOOTCLASSPATH /opt/cxppc321420-20040626/jre/lib/core.jar:
/opt/cxppc321420-20040626/jre/lib/graphics.jar:
/opt/cxppc321420-20040626/jre/lib/security.jar:
/opt/cxppc321420-20040626/jre/lib/server.jar:
/opt/cxppc321420-20040626/jre/lib/xml.jar:
/opt/cxppc321420-20040626/jre/lib/charsets.jar:
/opt/cxppc321420-20040626/jre/lib/ibmjgssprovider.jar:
/opt/cxppc321420-20040626/jre/lib/ibmjaaslm.jar:
/opt/cxppc321420-20040626/jre/lib/ibmorbapi.jar:
/opt/cxppc321420-20040626/jre/lib/ibmorb.jar:
/opt/cxppc321420-20040626/jre/lib/ibmjcefw.jar:
/opt/cxppc321420-20040626/jre/lib/ibmjssefips.jar:
/opt/cxppc321420-20040626/jre/lib/ibmjsseprovider.jar:
/opt/cxppc321420-20040626/jre/lib/ibmpkcs.jar:
/opt/cxppc321420-20040626/jre/lib/ibmcertpathprovider.jar

OS Version SUSE LINUX Enterprise Server 9 for IBM POWER

System state normal

Other software

Test Information

Tested by IBM Corporation

SPEC license # 11

Test location Austin, TX

Test date Aug 11, 2004

H/w available Aug-2004

JVM available Jul-2004

OS available Aug-2004

Other s/w available

Tuning

/proc/sys/kernel/min-timeslice=1000000

/proc/sys/kernel/max-timeslice=1000000
/proc/sys/vm/nr_hugepages=208
/proc/sys/kernel/shmall=3489660928
/proc/sys/kernel/shmmax=3489660928
/proc/self/mapped_base=0x10000000

Notes

Details of Runs

Warehouses	Thrput	Total heap (MB)		Thread spread %	% > 120s	transaction type	Count	Time (in seconds)
Warehouses	Thrput	Size	Used	Thread spread %	% > 120s	transaction type	Count	total	max
1	26744	3328	32.0	<0.01%	<0.01	new_order	1395281	66.8	.051
						payment	1395279	25.4	<0.01
						order_status	139528	2.25	<0.01
						delivery	139528	6.78	<0.01
						stock_level	139528	12.5	<0.01
2	50717	3328	53.7	.650%	<0.01	new_order	2645927	133	.057
						payment	2645923	50.8	.057
						order_status	264593	4.47	<0.01
						delivery	264592	14.6	<0.01
						stock_level	264591	25.2	<0.01
3	67043	3328	74.5	6.63%	<0.01	new_order	3497673	198	.071
						payment	3497671	74.6	<0.01
						order_status	349767	6.76	<0.01
						delivery	349766	22.4	.069
						stock_level	349766	40.1	.073
4	82935	3328	95.0	.450%	<0.01	new_order	4326856	263	.086
						payment	4326856	100	.085
						order_status	432686	9.21	.086
						delivery	432683	30.0	.086
						stock_level	432686	53.7	.086
5	82695	3328	114	17.1%	<0.01	new_order	4314236	317	1.00
						payment	4314247	133	1.00
						order_status	431425	12.3	1.00
						delivery	431426	37.3	1.29
						stock_level	431424	68.2	1.00
6	82699	3328	133	31.3%	<0.01	new_order	4314428	390	2.00
						payment	4314419	153	1.84
						order_status	431442	16.8	1.11
						delivery	431442	39.4	1.09
						stock_level	431442	80.1	1.01
7	82487	3328	148	37.9%	<0.01	new_order	4303474	459	2.01
						payment	4303455	187	1.11
						order_status	430349	15.2	1.00
						delivery	430345	47.8	1.12
						stock_level	430346	93.3	1.00
8	82259	3328	167	6.54%	<0.01	new_order	4291463	532	2.38
						payment	4291469	196	2.00
						order_status	429146	17.3	1.00
						delivery	429147	54.4	1.89
						stock_level	429145	110	1.64
9	82429	3328	184	23.4%	<0.01	new_order	4300405	592	3.61
						payment	4300413	241	2.59
						order_status	430042	16.3	2.00
						delivery	430042	55.0	2.00
						stock_level	430043	118	3.75
10	82396	3328	202	15.9%	<0.01	new_order	4298693	647	3.83
						payment	4298688	276	3.14
						order_status	429870	31.3	2.00
						delivery	429869	74.2	3.00
						stock_level	429868	118	2.92
