SPECjbb

SPECjbb2000		SPECjbb2000 = 328996 ops/s
IBM Corporation IBM eServer p5 570
IBM Corporation J2RE 1.4.2 (32-bit) IBM AIX build cadev-20040427

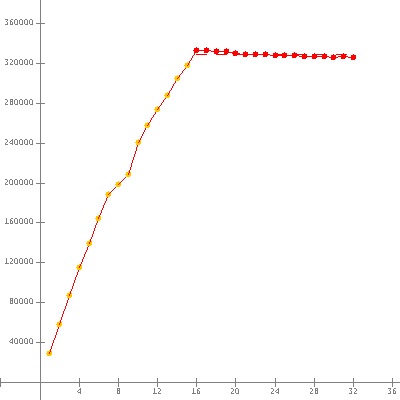

Warehouses	Ops/s	Incl. in metric
1	29442
2	58351
3	87051
4	115176
5	139522
6	164411
7	188752
8	198750
9	208771
10	240437
11	257951
12	273678
13	287806
14	304559
15	318495
16	333340	*
17	332813	*
18	332532	*
19	331792	*
20	329835	*
21	329393	*
22	329477	*
23	328718	*
24	328520	*
25	327765	*
26	328037	*
27	327225	*
28	327010	*
29	327329	*
30	326204	*
31	326831	*
32	326105	*
SPECjbb2000	(from 16 to 32)	328996 ops/s

SPEC license # 11 Tested by: IBM Corporation Test date: Apr 28, 2004

Hardware

Hardware Vendor IBM Corporation

Vendor URL http://www.ibm.com

Model IBM eServer p5 570

Processor POWER5

MHz 1900

# of Procs 8 cores, 4 chips, 2 cores/chip (SMT On)

Memory (MB) 65536

Primary cache 64KBI+32KBD

Secondary cache 1920KB unified on-chip

Other cache 36MB unified off-chip/DCM, 4 DCMs/SUT

Filesystem JFS

Disks 1 x 36GB SCSI

Other hardware

Software

Software Vendor IBM Corporation

Vendor URL http://www.ibm.com

Java Precompiler Version

Java Precompiler Command Line

Java Precompiler Way Of Excluding Classes

JVM Version J2RE 1.4.2 (32-bit) IBM AIX build cadev-20040427

JVM Command Line java -Xlp -Xcompactexplicitgc -Xgcpolicy:subpool -ms3072m -mx3072m spec.jbb.JBBmain -propfile SPECjbb.props

JVM Initial Heap Memory (MB) 3072

JVM Maximum Heap Memory (MB) 3072

JVM CLASSPATH ./jbb.jar:
./jbb_no_precompile.jar:
./check.jar:
./reporter.jar

JVM BOOTCLASSPATH /java/cadev-20040427/jre/lib/core.jar:
/java/cadev-20040427/jre/lib/graphics.jar:
/java/cadev-20040427/jre/lib/security.jar:
/java/cadev-20040427/jre/lib/server.jar:
/java/cadev-20040427/jre/lib/xml.jar:
/java/cadev-20040427/jre/lib/charsets.jar:
/java/cadev-20040427/jre/classes:
/java/cadev-20040427/jre/lib/ibmjsseprovider.jar:
/java/cadev-20040427/jre/lib/ibmjssefips.jar:
/java/cadev-20040427/jre/lib/ibmcertpathprovider.jar:
/java/cadev-20040427/jre/lib/ibmjcefw.jar:
/java/cadev-20040427/jre/lib/ibmjgssprovider.jar:
/java/cadev-20040427/jre/lib/ibmjsseprovider2.jar:
/java/cadev-20040427/jre/lib/ibmpkcs.jar:
/java/cadev-20040427/jre/lib/ibmjaaslm.jar

OS Version AIX 5L V5.3

System state normal

Other software

Test Information

Tested by IBM Corporation

SPEC license # 11

Test location Austin, TX

Test date Apr 28, 2004

H/w available Aug-2004

JVM available Jul-2004

OS available Aug-2004

Other s/w available

Tuning

Operating system tunings
vmo -o lgpg_regions=192 -o lgpg_size=16777216
vmo -o v_pinshm=1
smttune -s -A -1
setsched -S rr -P 40 -p $$
schedo -o timeslice=300
SPINLOOPTIME=1500

Notes

Details of Runs

Warehouses	Thrput	Total heap (MB)		Thread spread %	% > 120s	transaction type	Count	Time (in seconds)
Warehouses	Thrput	Size	Used	Thread spread %	% > 120s	transaction type	Count	total	max
1	29442	3072	33.6	<0.01%	<0.01	new_order	1536130	67.9	.026
						payment	1536129	24.7	.024
						order_status	153613	2.31	<0.01
						delivery	153614	7.63	<0.01
						stock_level	153612	12.4	<0.01
2	58351	3072	55.1	1.01%	<0.01	new_order	3044402	135	.131
						payment	3044401	50.7	.039
						order_status	304440	4.69	<0.01
						delivery	304440	15.5	<0.01
						stock_level	304439	24.0	.039
3	87051	3072	75.3	.971%	<0.01	new_order	4541787	203	.048
						payment	4541789	75.7	.048
						order_status	454179	7.00	<0.01
						delivery	454180	23.0	.043
						stock_level	454179	37.0	.048
4	115176	3072	99.9	.802%	<0.01	new_order	6009265	269	.053
						payment	6009272	102	.052
						order_status	600929	9.39	<0.01
						delivery	600927	30.4	<0.01
						stock_level	600927	49.6	.053
5	139522	3072	120	6.38%	<0.01	new_order	7279413	337	.054
						payment	7279427	127	.054
						order_status	727945	11.5	<0.01
						delivery	727944	39.0	<0.01
						stock_level	727942	61.6	.054
6	164411	3072	145	6.21%	.016	new_order	8579323	406	.061
						payment	8579314	150	.058
						order_status	857928	14.0	<0.01
						delivery	857932	48.2	.054
						stock_level	857932	73.7	.061
7	188752	3072	166	6.36%	.049	new_order	9852752	475	.064
						payment	9852763	174	.064
						order_status	985278	16.0	<0.01
						delivery	985275	56.1	.056
						stock_level	985277	87.5	.064
8	198750	3072	184	17.8%	<0.01	new_order	10370338	541	.067
						payment	10370338	201	.067
						order_status	1037036	18.3	<0.01
						delivery	1037033	64.9	.062
						stock_level	1037035	98.7	.065
9	208771	3072	204	21.6%	<0.01	new_order	10892960	608	.057
						payment	10892961	225	.057
						order_status	1089296	20.9	.047
						delivery	1089300	72.2	.053
						stock_level	1089297	113	.057
10	240437	3072	226	18.7%	<0.01	new_order	12544757	679	.061
						payment	12544759	246	.062
						order_status	1254473	22.8	.056
						delivery	1254477	81.7	.057
						stock_level	1254474	126	.060
11	257951	3072	245	17.7%	<0.01	new_order	13458302	745	.063
						payment	13458295	272	.063
						order_status	1345829	25.1	.057
						delivery	1345826	89.9	.062
						stock_level	1345829	138	.063
12	273678	3072	270	15.0%	<0.01	new_order	14279091	815	.068
						payment	14279102	296	.067
						order_status	1427911	27.7	.053
						delivery	1427909	97.8	.066
						stock_level	1427910	151	.068
13	287806	3072	288	21.0%	<0.01	new_order	15017103	884	.071
						payment	15017098	321	.071
						order_status	1501708	29.5	<0.01
						delivery	1501712	106	.069
						stock_level	1501709	163	.071
14	304559	3072	312	10.4%	.082	new_order	15902986	948	.077
						payment	15902999	348	.099
						order_status	1590296	32.4	.077
						delivery	1590297	114	.076
						stock_level	1590301	177	.077
15	318495	3072	330	9.88%	.083	new_order	16630972	1015	.078
						payment	16630983	373	.111
						order_status	1663096	34.5	.074
						delivery	1663100	123	.076
						stock_level	1663100	190	.077
16	333340	3072	350	2.69%	.083	new_order	17406126	1087	.178
						payment	17406115	397	.082
						order_status	1740611	36.5	.077
						delivery	1740615	130	.080
						stock_level	1740609	201	.082
17	332813	3072	365	23.7%	1.62	new_order	17644873	1177	3.00
						payment	17644890	414	2.00
						order_status	1764486	37.5	.080
						delivery	1764488	142	2.08
						stock_level	1764488	224	2.00
18	332532	3072	389	33.8%	1.30	new_order	17575643	1229	2.08
						payment	17575639	444	2.00
						order_status	1757560	40.7	1.49
						delivery	1757567	147	2.00
						stock_level	1757567	249	2.07
19	331792	3072	408	31.2%	1.26	new_order	17529152	1304	2.09
						payment	17529160	467	2.02
						order_status	1752915	43.9	1.87
						delivery	1752918	148	2.00
						stock_level	1752918	270	2.00
20	329835	3072	427	35.7%	.486	new_order	17292395	1349	2.40
						payment	17292362	510	2.09
						order_status	1729238	42.6	2.00
						delivery	1729242	147	2.00
						stock_level	1729241	278	2.10
21	329393	3072	443	38.5%	1.23	new_order	17396807	1430	2.10
						payment	17396809	533	2.26
						order_status	1739681	48.2	2.00
						delivery	1739682	164	2.00
						stock_level	1739680	285	2.25
22	329477	3072	456	37.1%	.083	new_order	17204281	1443	2.09
						payment	17204287	562	2.79
						order_status	1720429	44.5	2.00
						delivery	1720425	162	2.10
						stock_level	1720436	325	2.09
23	328718	3072	476	45.4%	1.67	new_order	17437633	1574	3.00
						payment	17437620	576	2.08
						order_status	1743762	45.3	1.99
						delivery	1743763	180	2.01
						stock_level	1743764	329	2.01
24	328520	3072	497	38.1%	1.30	new_order	17362566	1618	2.32
						payment	17362568	617	3.00
						order_status	1736257	60.3	2.00
						delivery	1736258	173	2.00
						stock_level	1736250	355	2.00
25	327765	3072	510	44.4%	.328	new_order	17156965	1668	3.00
						payment	17156944	650	3.33
						order_status	1715693	47.4	2.00
						delivery	1715692	185	2.00
						stock_level	1715693	368	2.68
26	328037	3072	533	28.2%	1.67	new_order	17400054	1767	2.23
						payment	17400072	668	2.85
						order_status	1740005	58.6	2.01
						delivery	1740015	188	2.01
						stock_level	1740003	395	2.06
27	327225	3072	551	40.8%	.100	new_order	17089676	1845	3.00
						payment	17089675	685	2.63
						order_status	1708968	53.6	2.00
						delivery	1708967	192	2.12
						stock_level	1708967	361	3.00
28	327010	3072	562	43.9%	1.31	new_order	17285460	1869	2.95
						payment	17285454	761	3.75
						order_status	1728554	54.5	2.00
						delivery	1728545	199	2.10
						stock_level	1728544	426	4.00
29	327329	3072	585	47.4%	.799	new_order	17214513	1931	3.00
						payment	17214492	773	2.62
						order_status	1721449	63.4	2.01
						delivery	1721450	207	2.11
						stock_level	1721449	432	2.11
30	326204	3072	602	40.1%	.053	new_order	17028257	1947	3.65
						payment	17028265	830	3.60
						order_status	1702822	61.7	2.07
						delivery	1702825	213	2.02
						stock_level	1702821	452	3.83
31	326831	3072	619	41.0%	.914	new_order	17207926	2062	3.00
						payment	17207921	812	2.61
						order_status	1720796	53.8	2.00
						delivery	1720793	212	2.01
						stock_level	1720793	474	2.25
32	326105	3072	641	35.3%	.984	new_order	17181645	2131	2.98
						payment	17181639	873	3.50
						order_status	1718160	59.5	2.00
						delivery	1718161	199	2.26
						stock_level	1718164	480	2.39
