SPECjbb

SPECjbb2000		SPECjbb2000 = 553480 ops/s
IBM Corporation IBM eServer pSeries 690 Turbo
IBM Corporation J2RE 1.4.1 IBM AIX build cadev-20030522 (32 bit JVM)

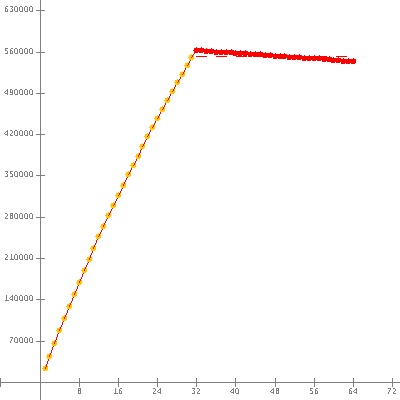

Warehouses	Ops/s	Incl. in metric
1	22804
2	44503
3	66229
4	87630
5	108703
6	128866
7	149201
8	169104
9	189545
10	207830
11	227330
12	246724
13	264446
14	282471
15	300338
16	316965
17	334273
18	352065
19	367941
20	383434
21	399804
22	416397
23	431476
24	447427
25	463319
26	478113
27	493329
28	508333
29	521535
30	536641
31	551079
32	563160	*
33	562677	*
34	561633	*
35	561493	*
36	559722	*
37	558643	*
38	558779	*
39	558887	*
40	558134	*
41	557395	*
42	557110	*
43	556617	*
44	555901	*
45	555450	*
46	554050	*
47	553585	*
48	553470	*
49	552807	*
50	552268	*
51	551188	*
52	551713	*
53	550622	*
54	549825	*
55	549963	*
56	549429	*
57	548917	*
58	548396	*
59	547222	*
60	546478	*
61	546342	*
62	544885	*
63	544554	*
64	543511	*
SPECjbb2000	(from 32 to 64)	553480 ops/s

SPEC license # 11 Tested by: IBM Corporation Test date: Jun 23, 2003

Hardware

Hardware Vendor IBM Corporation

Vendor URL http://www.ibm.com

Model IBM eServer pSeries 690 Turbo

Processor POWER4+

MHz 1700

# of Procs 32 cores, 16 chips, 2 cores/chip, 4 chips/MCM

Memory (MB) 65536

Primary cache 64KBI+32KBD on chip

Secondary cache 1536KB unified on chip

Other cache 128MB unified (off-chip)/MCM, 4 MCMs in SUT

Filesystem JFS

Disks 1 x 36.4GB SCSI

Other hardware

Software

Software Vendor IBM Corporation

Vendor URL http://www.ibm.com

Java Precompiler Version

Java Precompiler Command Line

Java Precompiler Way Of Excluding Classes

JVM Version J2RE 1.4.1 IBM AIX build cadev-20030522 (32 bit JVM)

JVM Command Line java -Xlp -Xcompactexplicitgc -Xgcpolicy:subpool -ms3072m -mx3072m -ss128k spec.jbb.JBBmain -propfile SPECjbb.props

JVM Initial Heap Memory (MB) 3072

JVM Maximum Heap Memory (MB) 3072

JVM CLASSPATH ./jbb.jar:
./jbb_no_precompile.jar:
./check.jar:
./reporter.jar

JVM BOOTCLASSPATH /java/cadev-20030522/jre/lib/core.jar:
/java/cadev-20030522/jre/lib/graphics.jar:
/java/cadev-20030522/jre/lib/security.jar:
/java/cadev-20030522/jre/lib/server.jar:
/java/cadev-20030522/jre/lib/xml.jar:
/java/cadev-20030522/jre/lib/charsets.jar:
/java/cadev-20030522/jre/classes

OS Version AIX 5L V5.2 APAR IY43549

System state normal

Other software

Test Information

Tested by IBM Corporation

SPEC license # 11

Test location Austin, TX

Test date Jun 23, 2003

H/w available Jul-2003

JVM available Oct-2003

OS available Jul-2003

Other s/w available

Tuning

Operating system tunings
SPINLOOPTIME=2000
vmo -r -o lgpg_regions=256 -o lgpg_size=16777216
setsched -S rr -P 40 -p $$
schedtune -t 400 -F 1
vmtune -S 1

Notes

Details of Runs

Warehouses	Thrput	Total heap (MB)		Thread spread %	% > 120s	transaction type	Count	Time (in seconds)
Warehouses	Thrput	Size	Used	Thread spread %	% > 120s	transaction type	Count	total	max
1	22804	3072	30.8	<0.01%	<0.01	new_order	1189844	65.5	.019
						payment	1189837	20.8	<0.01
						order_status	118984	2.54	<0.01
						delivery	118984	9.06	<0.01
						stock_level	118984	16.2	.018
2	44503	3072	52.4	<0.01%	<0.01	new_order	2321883	130	.029
						payment	2321877	41.8	.029
						order_status	232188	5.11	<0.01
						delivery	232189	18.4	.028
						stock_level	232186	32.6	<0.01
3	66229	3072	74.9	1.15%	<0.01	new_order	3455684	195	.028
						payment	3455691	63.1	.029
						order_status	345569	7.60	.029
						delivery	345568	28.0	.026
						stock_level	345568	48.5	.029
4	87630	3072	93.1	2.98%	<0.01	new_order	4572387	260	.028
						payment	4572393	84.8	.028
						order_status	457239	10.2	<0.01
						delivery	457241	36.5	<0.01
						stock_level	457238	65.1	.028
5	108703	3072	114	2.07%	.019	new_order	5672563	326	.028
						payment	5672559	106	.027
						order_status	567257	12.7	.026
						delivery	567256	45.8	<0.01
						stock_level	567255	81.0	.028
6	128866	3072	134	2.45%	<0.01	new_order	6724004	390	.028
						payment	6724010	127	.028
						order_status	672400	15.3	<0.01
						delivery	672399	55.7	.028
						stock_level	672401	98.1	.028
7	149201	3072	156	1.99%	<0.01	new_order	7784639	456	.030
						payment	7784638	148	.030
						order_status	778461	17.8	.028
						delivery	778464	66.2	<0.01
						stock_level	778463	114	.030
8	169104	3072	179	2.35%	<0.01	new_order	8823020	520	.031
						payment	8823015	169	.031
						order_status	882300	20.5	<0.01
						delivery	882301	76.5	.031
						stock_level	882304	129	.031
9	189545	3072	198	1.61%	<0.01	new_order	9889863	588	.032
						payment	9889850	188	.032
						order_status	988983	22.5	<0.01
						delivery	988987	87.0	.032
						stock_level	988986	144	.032
10	207830	3072	221	1.85%	<0.01	new_order	10844109	654	.034
						payment	10844116	208	.034
						order_status	1084411	25.3	<0.01
						delivery	1084408	97.8	.034
						stock_level	1084412	159	.034
11	227330	3072	242	1.71%	<0.01	new_order	11861800	720	.037
						payment	11861807	228	.036
						order_status	1186181	28.0	<0.01
						delivery	1186179	108	.034
						stock_level	1186181	175	.037
12	246724	3072	260	1.81%	<0.01	new_order	12873649	788	.037
						payment	12873633	248	.037
						order_status	1287362	30.2	.036
						delivery	1287365	119	.037
						stock_level	1287363	189	.037
13	264446	3072	278	1.94%	<0.01	new_order	13798349	854	.039
						payment	13798353	267	.039
						order_status	1379832	32.7	.034
						delivery	1379837	130	.038
						stock_level	1379837	206	.039
14	282471	3072	300	1.25%	<0.01	new_order	14737993	923	.041
						payment	14738003	288	.041
						order_status	1473804	35.0	.041
						delivery	1473801	141	.039
						stock_level	1473798	218	.041
15	300338	3072	319	2.08%	<0.01	new_order	15671101	988	.042
						payment	15671088	307	.042
						order_status	1567109	37.8	.041
						delivery	1567112	153	.042
						stock_level	1567107	234	.042
16	316965	3072	343	2.18%	<0.01	new_order	16538699	1056	.045
						payment	16538696	326	.044
						order_status	1653871	39.8	.043
						delivery	1653865	164	.044
						stock_level	1653867	250	.045
17	334273	3072	361	1.72%	<0.01	new_order	17441805	1121	.046
						payment	17441787	346	.046
						order_status	1744182	42.1	.043
						delivery	1744179	176	.045
						stock_level	1744180	265	.046
18	352065	3072	386	1.94%	<0.01	new_order	18370156	1194	.048
						payment	18370148	364	.048
						order_status	1837015	44.1	.047
						delivery	1837017	186	.048
						stock_level	1837015	278	.049
19	367941	3072	406	1.91%	<0.01	new_order	19198519	1263	.051
						payment	19198513	383	.050
						order_status	1919851	45.9	.048
						delivery	1919851	199	.050
						stock_level	1919848	292	.051
20	383434	3072	428	2.39%	<0.01	new_order	20006116	1328	.052
						payment	20006096	407	.052
						order_status	2000612	48.8	.051
						delivery	2000614	208	.052
						stock_level	2000609	306	.052
21	399804	3072	442	1.70%	<0.01	new_order	20861086	1396	.053
						payment	20861107	426	.053
						order_status	2086104	50.9	.052
						delivery	2086112	220	.052
						stock_level	2086109	320	.053
22	416397	3072	468	1.91%	<0.01	new_order	21725607	1466	.055
						payment	21725601	445	.055
						order_status	2172562	53.5	.050
						delivery	2172553	233	.055
						stock_level	2172559	332	.055
23	431476	3072	486	2.39%	<0.01	new_order	22511974	1536	.058
						payment	22511960	464	.058
						order_status	2251195	55.6	.056
						delivery	2251200	242	.056
						stock_level	2251196	346	.058
24	447427	3072	507	1.92%	<0.01	new_order	23344984	1605	.059
						payment	23344980	482	.059
						order_status	2334502	57.3	.059
						delivery	2334496	251	.058
						stock_level	2334496	363	.059
25	463319	3072	531	2.03%	<0.01	new_order	24173555	1676	.061
						payment	24173538	501	.061
						order_status	2417353	59.9	.059
						delivery	2417351	262	.061
						stock_level	2417359	374	.061
26	478113	3072	545	2.10%	<0.01	new_order	24945443	1742	.062
						payment	24945442	520	.062
						order_status	2494541	62.0	.061
						delivery	2494544	273	.062
						stock_level	2494545	393	.062
27	493329	3072	570	2.44%	<0.01	new_order	25739554	1813	.064
						payment	25739543	540	.064
						order_status	2573952	64.5	.064
						delivery	2573956	285	.064
						stock_level	2573949	405	.064
28	508333	3072	591	1.56%	<0.01	new_order	26523457	1885	.067
						payment	26523472	557	.067
						order_status	2652346	66.2	.066
						delivery	2652349	294	.066
						stock_level	2652344	419	.066
29	521535	3072	611	1.73%	<0.01	new_order	27211653	1951	.068
						payment	27211646	574	.067
						order_status	2721165	69.0	.067
						delivery	2721161	309	.067
						stock_level	2721163	436	.068
30	536641	3072	629	1.70%	<0.01	new_order	28000974	2025	.069
						payment	28000987	592	.069
						order_status	2800104	70.6	.067
						delivery	2800098	318	.068
						stock_level	2800093	449	.069
31	551079	3072	652	1.78%	<0.01	new_order	28753649	2091	.071
						payment	28753642	611	.071
						order_status	2875362	73.0	.071
						delivery	2875360	329	.069
						stock_level	2875369	466	.071
32	563160	3072	675	2.68%	.031	new_order	29391300	2159	.074
						payment	29391289	629	.073
						order_status	2939132	75.0	.072
						delivery	2939132	341	.074
						stock_level	2939124	480	.074
33	562677	3072	698	3.76%	.741	new_order	29574543	2245	1.69
						payment	29574561	658	.731
						order_status	2957464	76.7	.366
						delivery	2957460	349	.425
						stock_level	2957459	502	1.16
34	561633	3072	706	9.38%	.188	new_order	29357504	2302	1.66
						payment	29357516	680	1.60
						order_status	2935754	80.8	1.35
						delivery	2935749	354	1.71
						stock_level	2935748	510	1.22
35	561493	3072	721	10.7%	.799	new_order	29529395	2368	1.77
						payment	29529400	697	1.76
						order_status	2952942	86.9	1.78
						delivery	2952944	369	1.79
						stock_level	2952944	543	1.83
36	559722	3072	744	9.72%	1.05	new_order	29509509	2444	1.96
						payment	29509504	730	1.97
						order_status	2950951	82.8	1.89
						delivery	2950959	366	1.98
						stock_level	2950952	562	1.95
37	558643	3072	756	11.7%	.575	new_order	29314207	2514	2.03
						payment	29314197	758	2.03
						order_status	2931426	85.0	1.95
						delivery	2931419	381	1.91
						stock_level	2931414	557	2.02
38	558779	3072	785	9.09%	.786	new_order	29382787	2557	1.96
						payment	29382751	774	1.95
						order_status	2938280	88.8	1.88
						delivery	2938277	397	1.95
						stock_level	2938278	603	2.02
39	558887	3072	794	11.6%	.615	new_order	29338668	2615	2.05
						payment	29338683	821	1.97
						order_status	2933858	89.7	1.66
						delivery	2933863	403	1.94
						stock_level	2933863	590	2.13
40	558134	3072	818	8.08%	.798	new_order	29352258	2708	1.96
						payment	29352285	817	1.93
						order_status	2935228	97.0	1.82
						delivery	2935225	414	1.94
						stock_level	2935229	613	1.94
41	557395	3072	833	8.17%	.707	new_order	29287012	2741	1.97
						payment	29287005	871	1.97
						order_status	2928704	97.2	1.77
						delivery	2928699	415	1.96
						stock_level	2928696	645	1.97
42	557110	3072	847	9.45%	.188	new_order	29121103	2827	2.07
						payment	29121097	872	2.09
						order_status	2912107	94.8	1.75
						delivery	2912100	421	1.84
						stock_level	2912108	641	1.95
43	556617	3072	867	11.6%	.883	new_order	29297162	2883	2.04
						payment	29297164	914	1.78
						order_status	2929723	95.9	1.68
						delivery	2929717	420	1.74
						stock_level	2929714	697	1.98
44	555901	3072	888	15.7%	.512	new_order	29151941	2962	3.15
						payment	29151954	932	2.23
						order_status	2915198	97.1	1.67
						delivery	2915195	413	1.71
						stock_level	2915192	705	1.97
45	555450	3072	895	13.0%	.038	new_order	28991113	2937	2.23
						payment	28991109	982	1.94
						order_status	2899110	100	1.84
						delivery	2899113	424	1.74
						stock_level	2899115	753	3.23
46	554050	3072	917	10.4%	.854	new_order	29153898	3120	2.42
						payment	29153898	951	2.02
						order_status	2915380	92.6	1.76
						delivery	2915386	457	1.93
						stock_level	2915387	744	1.97
47	553585	3072	947	17.5%	1.44	new_order	29298372	3125	2.06
						payment	29298387	1048	2.06
						order_status	2929835	99.4	2.07
						delivery	2929841	440	2.03
						stock_level	2929836	810	2.31
48	553470	3072	958	20.7%	.850	new_order	29122102	3220	3.48
						payment	29122153	1026	2.71
						order_status	2912211	89.0	1.98
						delivery	2912216	442	1.90
						stock_level	2912212	803	2.04
49	552807	3072	966	12.2%	.448	new_order	28971186	3290	2.68
						payment	28971160	1019	3.22
						order_status	2897114	92.0	1.85
						delivery	2897107	438	2.29
						stock_level	2897119	862	3.07
50	552268	3072	988	23.7%	1.03	new_order	29111969	3346	3.49
						payment	29111982	1084	2.38
						order_status	2911203	98.4	1.58
						delivery	2911194	446	3.77
						stock_level	2911207	865	3.43
51	551188	3072	1003	22.4%	.393	new_order	28870528	3392	3.22
						payment	28870511	1110	2.91
						order_status	2887057	108	2.00
						delivery	2887058	426	2.23
						stock_level	2887040	873	2.36
52	551713	3072	1024	18.5%	.957	new_order	29060396	3435	3.20
						payment	29060427	1143	4.80
						order_status	2906045	108	1.94
						delivery	2906044	421	2.68
						stock_level	2906045	950	2.62
53	550622	3072	1047	18.8%	.203	new_order	28786257	3519	2.67
						payment	28786250	1128	3.43
						order_status	2878628	97.2	1.86
						delivery	2878626	436	1.93
						stock_level	2878632	969	3.95
54	549825	3072	1061	18.0%	.939	new_order	28955932	3613	3.89
						payment	28955929	1131	3.76
						order_status	2895595	107	1.95
						delivery	2895595	444	3.71
						stock_level	2895597	1019	3.00
55	549963	3072	1079	23.3%	1.44	new_order	29107863	3638	3.81
						payment	29107857	1279	5.24
						order_status	2910788	99.1	1.94
						delivery	2910783	441	1.94
						stock_level	2910787	1014	3.83
56	549429	3072	1097	17.0%	.942	new_order	28935790	3754	3.75
						payment	28935752	1247	3.36
						order_status	2893586	107	2.43
						delivery	2893579	440	4.68
						stock_level	2893577	1006	3.79
57	548917	3072	1112	28.5%	1.68	new_order	29119801	3885	6.20
						payment	29119793	1198	4.03
						order_status	2911973	90.5	1.92
						delivery	2911981	441	2.84
						stock_level	2911978	1130	3.77
58	548396	3072	1131	22.1%	.660	new_order	28800815	3783	3.63
						payment	28800806	1294	3.19
						order_status	2880077	103	1.91
						delivery	2880081	448	5.64
						stock_level	2880083	1144	4.99
59	547222	3072	1146	34.5%	.149	new_order	28593267	3907	5.36
						payment	28593300	1285	6.66
						order_status	2859327	104	1.88
						delivery	2859331	425	3.50
						stock_level	2859324	1118	7.98
60	546478	3072	1168	29.9%	.751	new_order	28725985	3921	5.37
						payment	28725979	1390	3.42
						order_status	2872600	102	1.87
						delivery	2872603	415	2.55
						stock_level	2872589	1196	3.46
61	546342	3072	1179	30.0%	.113	new_order	28537112	3941	5.90
						payment	28537129	1378	10.3
						order_status	2853709	130	2.58
						delivery	2853715	434	5.30
						stock_level	2853720	1174	6.65
62	544885	3072	1208	34.8%	.755	new_order	28643439	4001	12.3
						payment	28643431	1455	5.20
						order_status	2864348	105	2.51
						delivery	2864343	446	3.57
						stock_level	2864341	1218	5.40
63	544554	3072	1219	45.2%	1.10	new_order	28724726	4228	8.89
						payment	28724759	1387	11.2
						order_status	2872476	110	3.30
						delivery	2872477	418	2.63
						stock_level	2872479	1246	10.2
64	543511	3072	1237	32.3%	.193	new_order	28411688	4043	7.73
						payment	28411691	1632	7.24
						order_status	2841167	103	1.83
						delivery	2841170	441	5.15
						stock_level	2841174	1230	3.54
